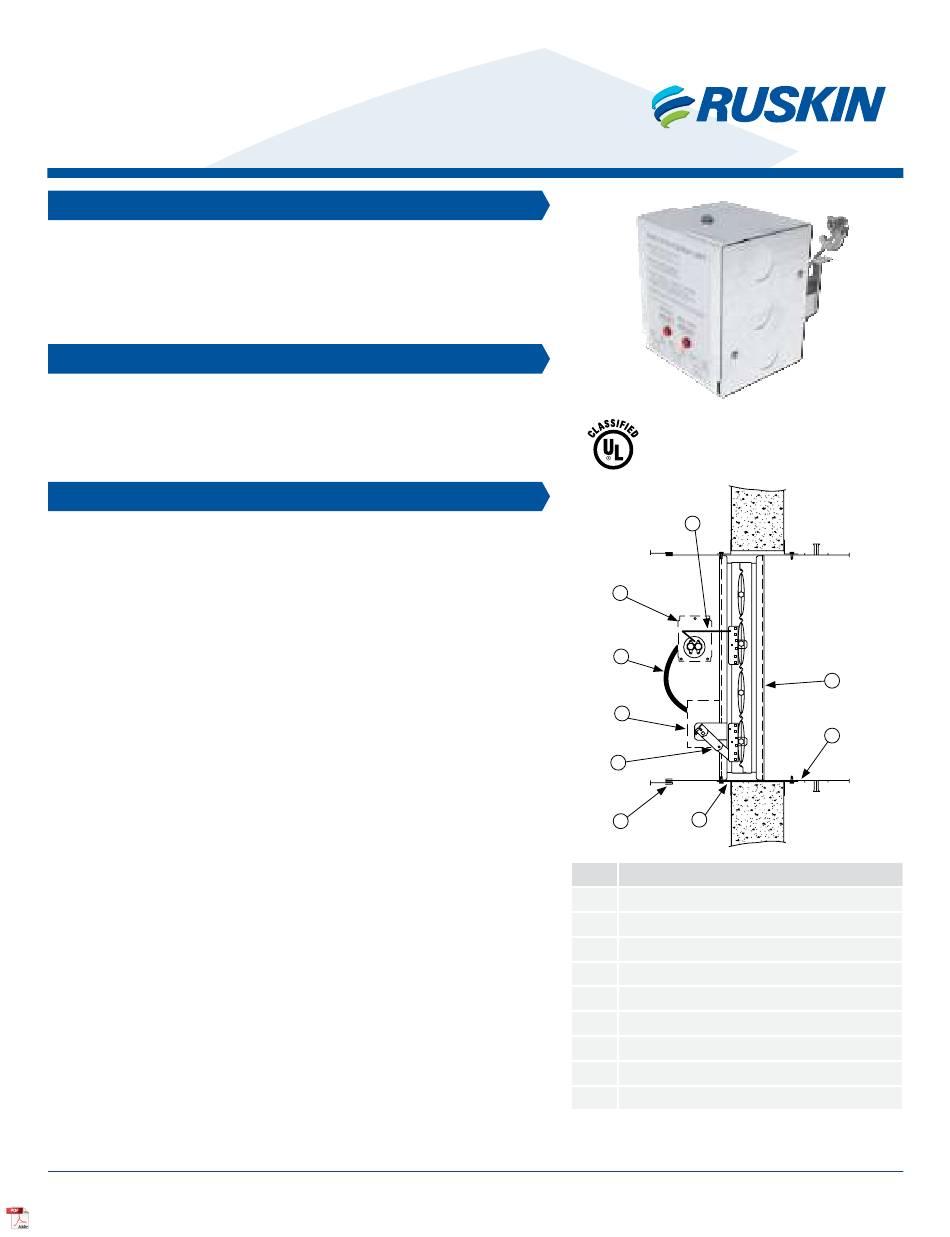

Ruskin TS150 Operation Instructions

TS150
Operation Instructions Supplement
Firestat For "Reopenable" Fire And Smoke Dampers
APPLICATION
The TS150 is a UL Classified heat responsive device which is used in conjunction with
Ruskin fire/smoke dampers. The TS150 is an optional device which can be ordered
with electric actuators or pneumatic actuators and EP (electro/pneumatic) switches.
The TS150 allows the dampers to be reopened after the initial closure for dynamic
smoke control. The TS150 must be installed at the factory and cannot be added
in the field. Replacement TS150's may be field installed with the approval of the
local authority.
SMOKE DETECTION/TEST/POWER FAILURE OPERATION
If smoke is detected, or during testing, or if power failure occurs, the damper will
close and lock. When the smoke signal ceases (or smoke detector resets) , the test
is complete or power is restored the SYSTEM will automatically REMOTE RESET the
damper to the open position. The damper automatically resets if nuisance alarms
occur and the SYSTEM is reset. The damper may be closed at any time by placing the
MCP1 (optional) or other control switch (by others) in the CLOSED position.
FIRE OPERATION
When the switch of a control panel (MCP) is in the NORMAL position and temperatures
in excess of 165°F/74°C (212°F/100°C optional) are detected, the damper will close and
lock and the damper CLOSED indicator light on the control panel will light.
The damper remains closed until the override signal for smoke management from
a remote command station is present and the duct temperature has not exceeded
the high limit. The high limit temperature sensor prevents the damper from reopening
when duct temperature is above the damper's UL555S degradation test temperature
of 250°F/121°C or 350°F/177°C. Upon cessation of the fire condition, the damper can
be reopened by pressing the RESET button on the TS150 assembly. At no time will the
damper disengage from the actuator. The integral SP100 will positively communicate
to the fire commander via the control panel the position of the damper for smoke
management purposes.
Refer to the appropriate damper installation instructions for details on damper
installation. All electrical wiring and connections to the Fire-Stat must be in accordance
with the standards of the authorities having jurisdiction.
S1 and S2 Switch AMP Ratings: 15 AMPS, @ 24, 125 or 250 VAC 1/2 AMP, @ 125 VDC,
1/4 AMP, @ 250 VDC
II-TS150-0121/Replaces II-TS150-514 ALL STATED SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION.
Page 1
AUTHORITY IN AIR CONTROL
SEE COMPLETE
MARKING ON PRODUCT
2
1
3
5
6
8
9
ITEM DESCRIPTION
TS-150 Fire Stat
1
Adjustable Connecting Rod
2
Flex Conduit
3
Damper Frame
4
Actuator or EP Switch
5
Over-Center Lock
6
Damper Sleeve
7
FAST, PFMA or conventional mounting angles
8
Sleeve to Duct Connection (by others)
9
4
7
© Ruskin January 2021
