Installation, Operation and Maintenance Manual for actuator : ELA40

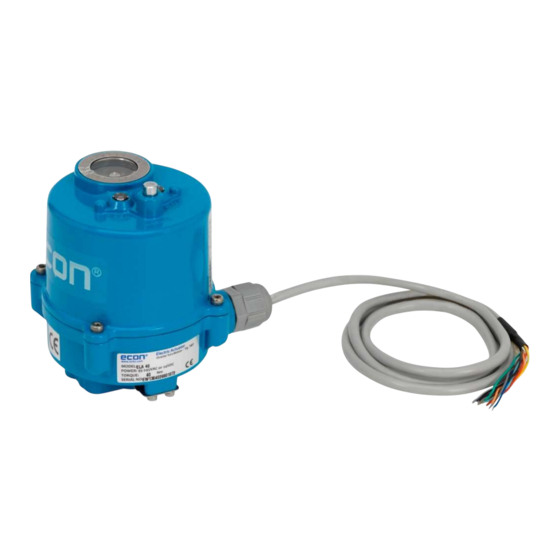

ECON actuator Fig 7907, type ELA40
Rev.9, September 2, 2024
ECON ELECTRIC ACTUATOR
Fig. 7907, type ELA40
Small & Compact Quarter-Turn Actuator
Mechanical & LED lamp position indicator
Multi-voltage power supply
Multi-mounting base
High output torque
Manual override
1
Proven Quality since 1892
www.eriks.com
Advertisement
Related Manuals for Econ ELA40
Summary of Contents for Econ ELA40

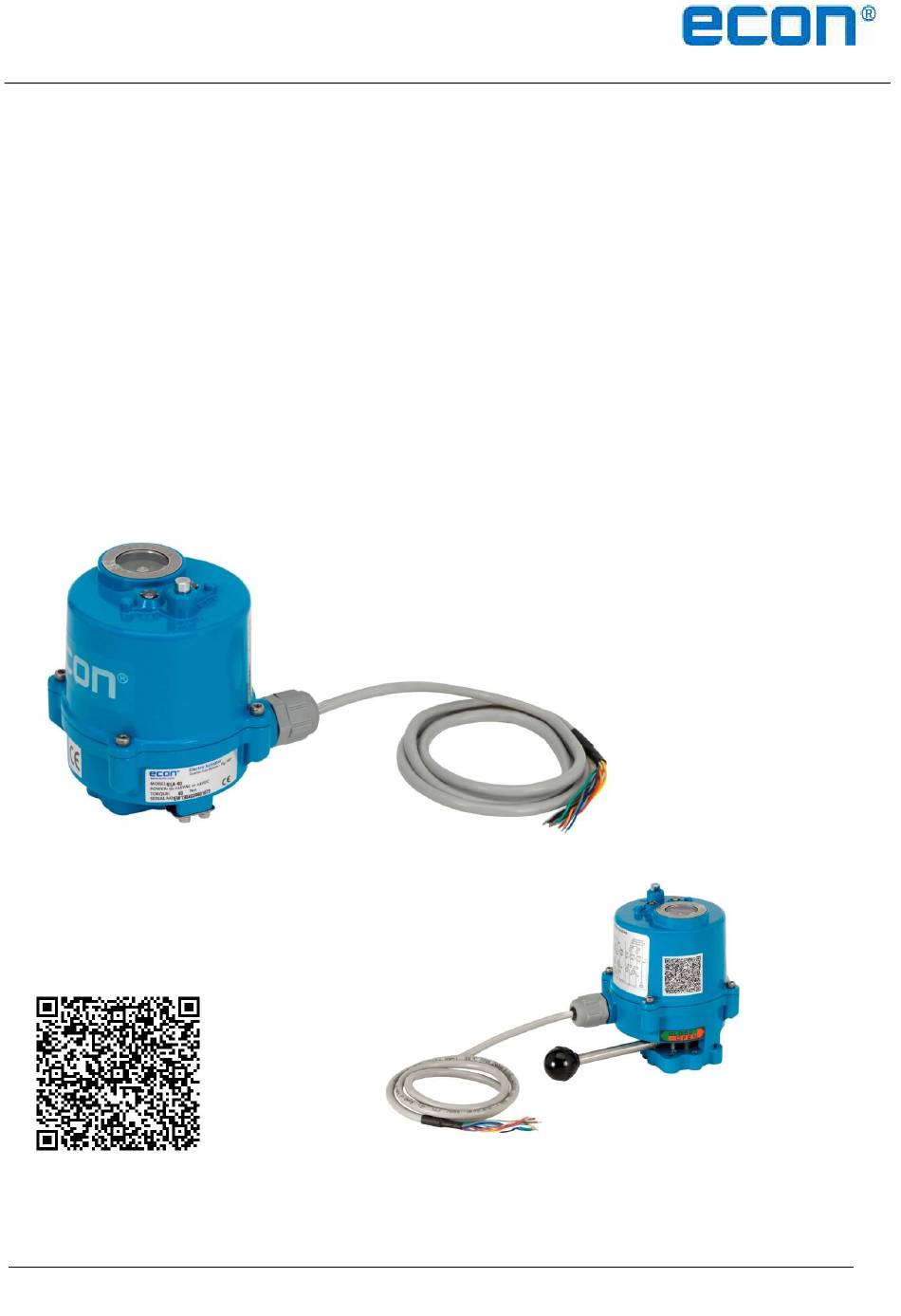

- Page 1 Small & Compact Quarter-Turn Actuator Mechanical & LED lamp position indicator Multi-voltage power supply Multi-mounting base High output torque Manual override Scan for manual Installation, Operation and Maintenance Manual for actuator : ELA40 ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 2 4.1 Pre-installation for use in general service 4.2 Actuator mounting 4.2.1 Actuator mounting details 4.3 Limit switch setting 5. Wiring diagram 6. Maintenance 6.1 Maintenance 6.2 Tools 7. Trouble shooting 8. Dimensions ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 3 Introduction 1.1 Purpose This Installation and operating manual explains how to install, operate and maintain ELA40 electric actuators. 1.2 Safety Notices Safety notices in this manual detail precautions the user must take to reduce the risk of personal injury and damage to the equipment.
- Page 4 85 ~ 265 VAC 1 ph ELA40 F05, DSQ11 or 24 VDC *ELA40 is a multi-voltage actuator and can be connected to a power supply of 24VDC or 85-265 VAC. The actuator has a 24 VDC motor. 3.1.2 Standard Technical Data Enclosure Weatherproof IP67...
- Page 5 3.1.5 Lubrication The ELA40 actuator is a totally enclosed unit with a permanently lubricated gear (Moly EP Grease) lubrication should not be required. However, periodic preventative maintenance will extend the operating life of the actuator. ECON actuator Fig 7907, type ELA40 www.eriks.com...
- Page 6 A dd itional Open limit switch s e t Close limit switch s e t Open limit switch set Full Close Led lamp (Red) Full Open Led lamp (Blue) ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 7 Damaged parts must be replaced by original spare parts. Mounting of actuator is possible in any position, but most easily done with valve shaft in upright position. The ELA40- series actuators are supplied with a driving bush. This bush can be removed in order to machine or adjust the required stem connection.
- Page 8 Rotate the OPEN cam Counter Clock Wise towards the limit switch lever until the switch ‘clicks’ (Fig 2) Tighten set screw with the Allen key DANGER : HAZARDOUS VOLTAGE. Make sure all power is disconnected before adjusting any settings. Fig. 2 Open Cam Setting ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 9 Installation & Operation Manual Proven Quality since 1892 Wiring Diagram ELA40 on/off, 85VAC up to 265VAC and 24VDC SYMBOL DESCRIPTION RATING CLOSE LIMIT SWITCH 250VAC 5A OPEN LIMIT SWITCH 250VAC 5A ACLS AUX. CLOSE LIMT SWITCH 250VAC 5A AOLS AUX. OPEN LIMIT SWITCH 250VAC 5A EACH ACTUATOR MUST BE POWERED THROUGH IT’S OWN INDIVIDUAL SWITCH OR RELAY CONTACTS...
- Page 10 6.2 Tools Metric Allen Key Screw Driver Metric Spanner Wrench 200mm Wrench 300mm Wire Stripper long Nose Multi Meter (AC, DC, Resistance) ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 11 Check if coupler and/or bracket are correctly installed Actuator runs erratically Check the ambient temperature Verify that the duty cycle has not been exceeded Check the position of manual override lever ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 12 Installation & Operation Manual Proven Quality since 1892 Dimensions ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
- Page 13 Please contact the nearest ECON distributor. You can find them on www.eriks.com ERIKS Flow Control Cypresbaan 63, 2908 LT Capelle aan den IJssel, The Netherlands Phone: +31 88 855 81 00 ECON actuator Fig 7907, type ELA40 www.eriks.com Rev.9, September 2, 2024...
