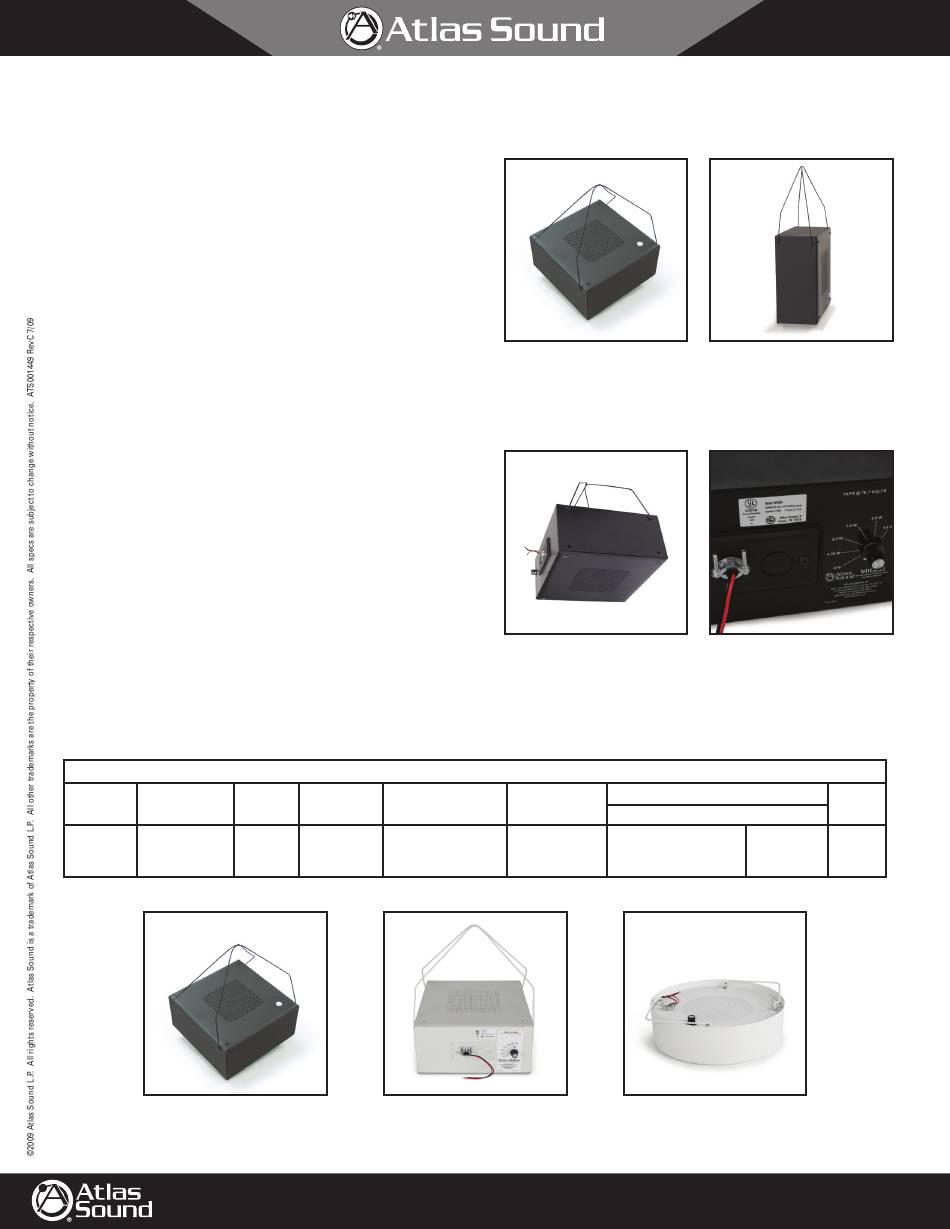

M1000, M1000-W, M1000R-W
STEP 1
Remove the M1000 from the package via hangers provided.
Hangers are factory installed to facilitate mounting of the
M1000 for upward sound dispersion, Figure 1. This dispersion
configuration is the most popular and most effective.
Note: The M1000R-W can only be mounted in the upward
firing configuration.
If horizontal (side firing) dispersion is required, the hangers
may be relocated as shown in Figure 2.
If down firing dispersion is required, the hangers may be
relocated as shown in Figure 3.
STEP 2
Install the M1000 per Figure 1, 2 or 3, using hanger wire
(not included).
Note: Code requirements in many areas require the use of #12
suspension cable for commercial applications. Check your local
codes before installing the M1000.
STEP 3
Terminate service loop to the amplifier output line (black is
negative, red is positive) - see Figure 4.
Note: Strain relief is not designed to accommodate conduit.
Use approved terminations through the knock-outs provided
on the M1000 cover plate when conduit is used.
STEP 4
Set tap selector switch to desired power setting.
MODEL
LOUDSPEAKER
M1000
8" (203mm)
M1000-W
Dual Cone
M1000R-W
M1000
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
WIRING DIAGRAM AND HOOK-UP
FREQUENCY
MAGNET
RESPONSE
WEIGHT
SENSITIVITY
10oz.
150Hz - 6kHz
92dB
(260g)
120Hz - 6.5kHz
1W/1M
Figure 1
M1000 shown with
hangers located as
configured from factory for
upward sound dispersion
Figure 3
M1000 shown with
hangers configured
for downward sound
dispersion
SPECIFICATIONS
TRANSFORMER
TAPS @ 70.7V
(±3dB)
.25, .5, 1
(±5dB)
2,4
M1000-W
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
Figure 2
M1000 shown with
hangers configured
for horizontal sound
dispersion
Figure 4
M1000 tap selector
ENCLOSURE
DIMENSIONS
VOLUME
734 Cubic in.
11
9
⁄
"L x 11
9
⁄
"W x 5
1
⁄
"H
16
16
2
(294 x 294 x 140mm)
M1000R-W
AtlasSound.com
1/2
WEIGHT
9 lbs.
(3.4kg.)
