1...6-channel measurement amplifier GSV-6
GSV-6L: 12V/24V supply, output: current / voltage
GSV-6CPU: 4V supply, output: 0...3V; CAN, UART, 6x ADC
GSV-6K: 12V/24V supply, output: current / voltage
Version: 08/05/2024
ME-Meßsysteme GmbH
Eduard-Maurer-Str. 9
16761 Hennigsdorf
GSV-6CPU, GSV-6L, GSV-6K
Instruction manual
Tel.: +49 3302 89824 10
Mail: vertrieb@me-systeme.de
Web: www.me-systeme.de
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Me GSV-6
Summary of Contents for Me GSV-6
- Page 1 1...6-channel measurement amplifier GSV-6 GSV-6CPU, GSV-6L, GSV-6K Instruction manual GSV-6L: 12V/24V supply, output: current / voltage GSV-6CPU: 4V supply, output: 0...3V; CAN, UART, 6x ADC GSV-6K: 12V/24V supply, output: current / voltage Version: 08/05/2024 ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de...
- Page 2 Strain gauges measurement amplifier GSV-6 Contents Strain gauges measurement amplifier GSV-6...................2 GSV-6CPU............................3 Description............................. 3 Dimensions............................ 4 Terminal assignment........................5 Configuration interface......................5 Connection of Strain gauges....................6 Voltage supply..........................6 Inputs/outputs..........................6 GSV-6L..............................8 Description............................. 8 Dimensions............................ 9 Terminal assignment........................9 5-pin terminal strip........................9 7-pin terminal strip........................9 Functions.............................

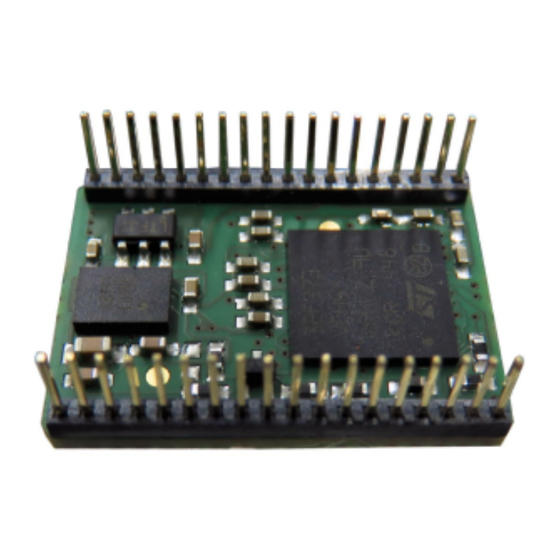

- Page 3 GSV-6CPU Description The GSV-6 product series offers signal processing for strain gauges on the smallest area. The core component of the GSV-6 is a PCB of dimensions 19mm x 14mm. This "GSV-6CPU" provides many of the required functions to set up a 1- to 6-channel measurement amplifier.
- Page 4 Dimensions Figure 1: Dimensions GSV-6CPU The GSV-6 CPU module can be configured via two different UART interfaces or via CAN (bus transceiver not integrated). There is also the option of configuring the most important settings using the Tare and Scale lines.
- Page 5 A UART interface for the "Monitor" text interface is available via a "BM10B" connector. The parameters are always: 115200 bits/s, 8N1. A terminal program in text mode can be used. The input "help" (ENTER) describes the operation. Figure 3: Pin assignment Monitor interface ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 6 The connection for 1-wire-EEPROMs works with With GSV-6CPU/ 3.3V. The EEPROMs (e.g. DS2433+, DS2430A, Dev: has internal DS28EC20) of Maxim/Dallas are 3.3V compatible. pull up resistor of 1.5 kOhms to ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 7 Threshold output 3, configurable digital output 3 Dout 3 x1.15 Trigger, Trigger Input (e.g. Sync-Slave), configurable digital Din 4 input 4 The logic levels on the GSV-6CPU are LVTTL 3.3V. ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 8 The measuring amplifier GSV-6L operates from a supply voltage of 9V to a maximum of 28V. The active signal level for the digital inputs "Tare" and "Scale" correspond to the supply voltage used for the GSV-6L, but at least 9V. ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 9 7-pin terminal strip Designation Function Comment Connection for LED max. 4mA, 200 ohm series resistor to GND Ground supply voltage 9...28V Supply voltage with polarity reversal ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 10 Input for TEDS (pull-up resistor included) Vdd=Vio of TEDS EEPROM directly connectable Functions The functions can be adjusted using the "Tare" and "Scale" control cables. A simulator to configure the GSV-6 via control cables is also available via https://www.me-systeme.de/produkte/elektronik/gsv-6/anleitungen/ba-clickrclackr_en.pdf Function Settings ±...
- Page 11 ±10V, 2 mV/V, 100Hz, Actual value display, TEDS active, Non- inverted display, This "ClickRclackR" menu is described in detail in a separate document: Manual ClickRclackR ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 12 Functions(Page 10). The active signal level for the digital inputs "Tare" and "Scale" correspond to the supply voltage used for the GSV-6K, but at least 9V. Dimensions ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf...
- Page 13 Minimum required connection: 3-wires pins 1-3. Pin 3 is the supply minus pole and also the GND for the analog output, which preferably is connected to two ground wires (one for supply minus, one for output ground). ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de...
- Page 14 LVTTL level 200 ohm series resistor required Level >2.4V High; <0.4V Low Max. current Voltage source Max. current Interfaces 2x UART, CAN, TEDS (SPI, I2C) ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 15 1 ...25000 Outputs Bridge supply voltage Volt Max. bridge supply current Short-circuit resistance Analogue output Configurable Resolution 13 bit Output resistance 0.12 Max. output current ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 16 GSV-6K and newer versions of the GSV-6L have a built-in LED that can be used to indicate some device states. The LED also has a meaning in the "ClickRclackR" configuration menu, ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de...
- Page 17 Signal level for control inputs documented at GSV-6L and GSV-6K 13/07/2022 LED patterns added, reviewed, updated 03/12/2023 corrected GSV6K connector, reviewed 08/05/2024 Formatting, address, TEDS pullup on GSV-6CPU ME-Meßsysteme GmbH Eduard-Maurer-Str. 9 Tel.: +49 3302 89824 10 Mail: vertrieb@me-systeme.de 16761 Hennigsdorf Web: www.me-systeme.de...
- Page 18 All details describe our products in a general form. They constitute no warranty of characteristics as defined by § 459, Paragraph 2 of the German Civil Code nor grounds for liability. Made in Germany Copyright © 2024 ME-Meßsysteme GmbH Printed in Germany...
