- Page 1 1...6-channel measurement amplifier GSV-6 GSV-6CPU, GSV-6L, GSV-6K Instruction manual GSV-6L: 12V/24V supply, output current / voltage GSV-6CPU: 3.7V supply, output 0...3V; CAN, UART, 6x ADC GSV-6K: 12V/24V supply, output current / voltage Version: 27.04.2015...
-
Page 2: Table Of Contents
GSV-6K..........................9 Description........................9 Functions........................10 Dimensions........................10 Terminal assignment....................10 5-pin socket......................10 5-pin plug.........................11 Annex..........................11 Technical data of GSV-6CPU..................11 Technical data GSV-6L / GSV-6K................13 Factory settings......................14 ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 3: Gsv-6Cpu

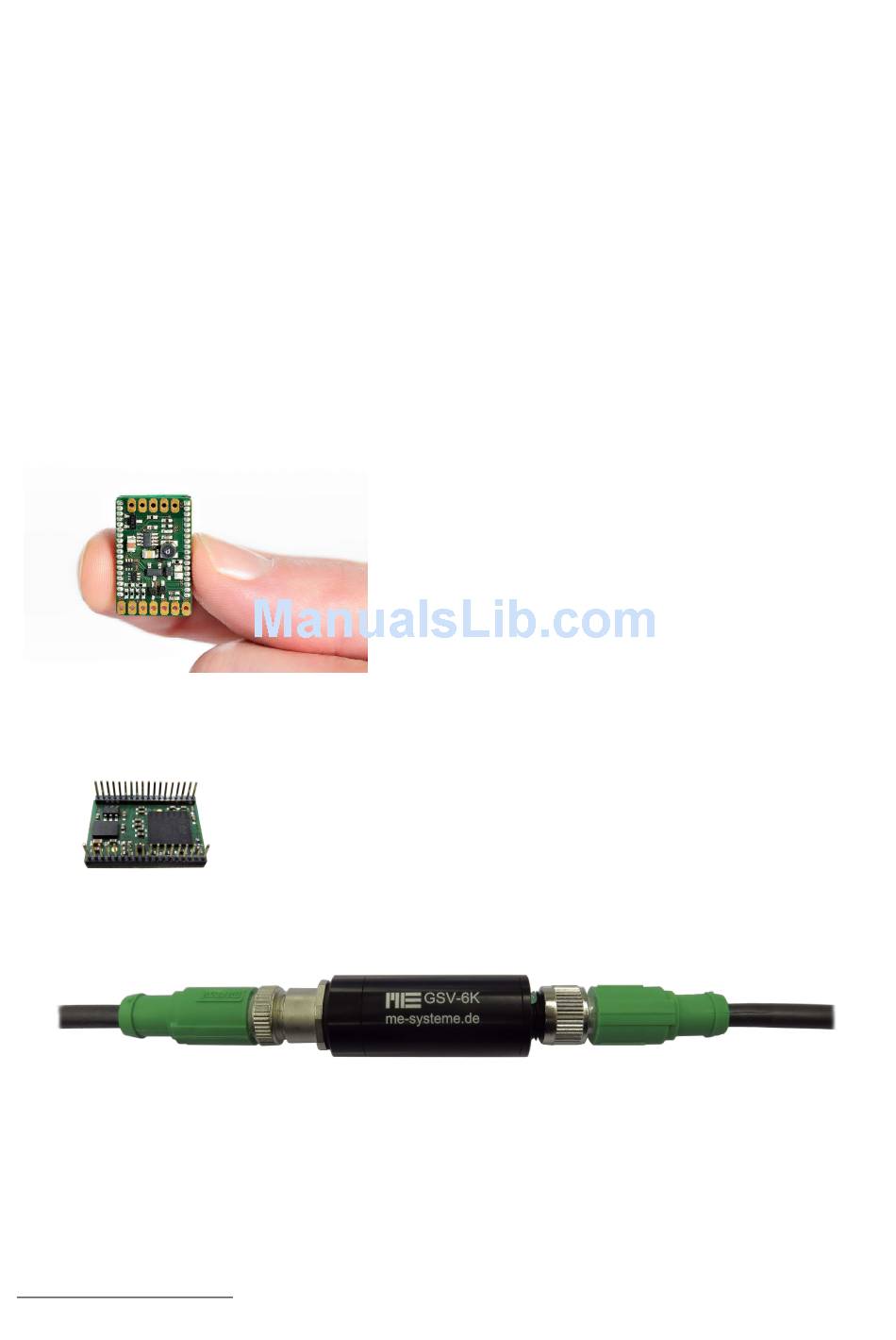

The core component of the GSV-6 is a PCB measuring 19mm x 14mm. This "GSV-6CPU" provides all the required functions to set up a 1- to 6-channel measurement amplifier. Connector panels and functions for additional applications are expanded via 18-pin strips with a 1.0 pitch: UART to Bluetooth, CAN bus driver, GPRS modem, etc. -
Page 4: Dimensions
There is also scope to configure the most important settings using the Tare and Scale cables. Terminal assignment Figure 2: Terminal assignment GSV-6CPU ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 5: Configuration Interface
Tare >1s in actual-value mode: Zero adjustment Tare > 100ms in maximum-value mode maximum- value reset Tare > 2s in maximum-value mode: Zero adjustment ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 6: Gsv-6L
The calibration data from the electronic data sheet of the sensor is automatically accepted via a TEDS input. The analogue output is then automatically adjusted to the increase set in TEDS. Dimensions and terminal assignment ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 7: Dimensions
Threshold value output, OpenDrain 200mA, 30V 7-pin terminal strip Designation Function Comment Connection for LED max. 4mA, 200 ohm series resistor; Ground supply voltage ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 8: Functions
The autoscale level can be adjusted in stages, from 5% within the range 0 to 100%. When "0%" is set, the autoscale function is ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 9: Gsv-6K
The outputs 0...10V, ±10V, 0...5V, ±5V, 4...20mA, 0...20mA can be set using the "Tare" and "Scale" control cables. Similarly, an offset or sampling frequency can also be set. ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 10: Functions
Negative bridge excitation white black white Positive differential input green green blue Negative differential input yellow white black TEDS input grey grey ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 11: 5-Pin Plug
Zero point drift (at 2 mV/V FS) <0.05 %FS/10K (1 µV/V / 10K) Sensitivity drift (at 2 mV/V FS) <0.01%RD/10K Analogue input ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... - Page 12 -40°C … 125°C Dimensions L x W x H 19 x 14 x 4 mm x mm x mm Protection Class IP00 ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de...
-
Page 13: Technical Data Gsv-6L / Gsv-6K
200 mA, 30V Interfaces TEDS Voltage supply Nominal voltage 12V … 24V Current consumption Min. supply voltage Max. supply voltage Operating temperature ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... -
Page 14: Factory Settings
Level for threshold value indicator 1 Zero adjustment non-volatile TEDS activated Peak value output inactive Gradient ±1 (mV/V) / s Configuration interface 115200 baud, 8n1 ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de... - Page 15 ME-Meßsysteme GmbH, Neuendorfstr. 18a, DE-16761 Hennigsdorf Tel +49 (0)3302 78620 60, Fax +49 (0)3302 78620 69, info@me-systeme.de, www.me-systeme.de...
- Page 16 All details describe our products in a general form. They constitute no warranty of characteristics as defined by § 459, Paragraph 2 of the German Civil Code nor grounds for liability. Made in Germany Copyright © 2015 ME-Meßsysteme GmbH Printed in Germany...
