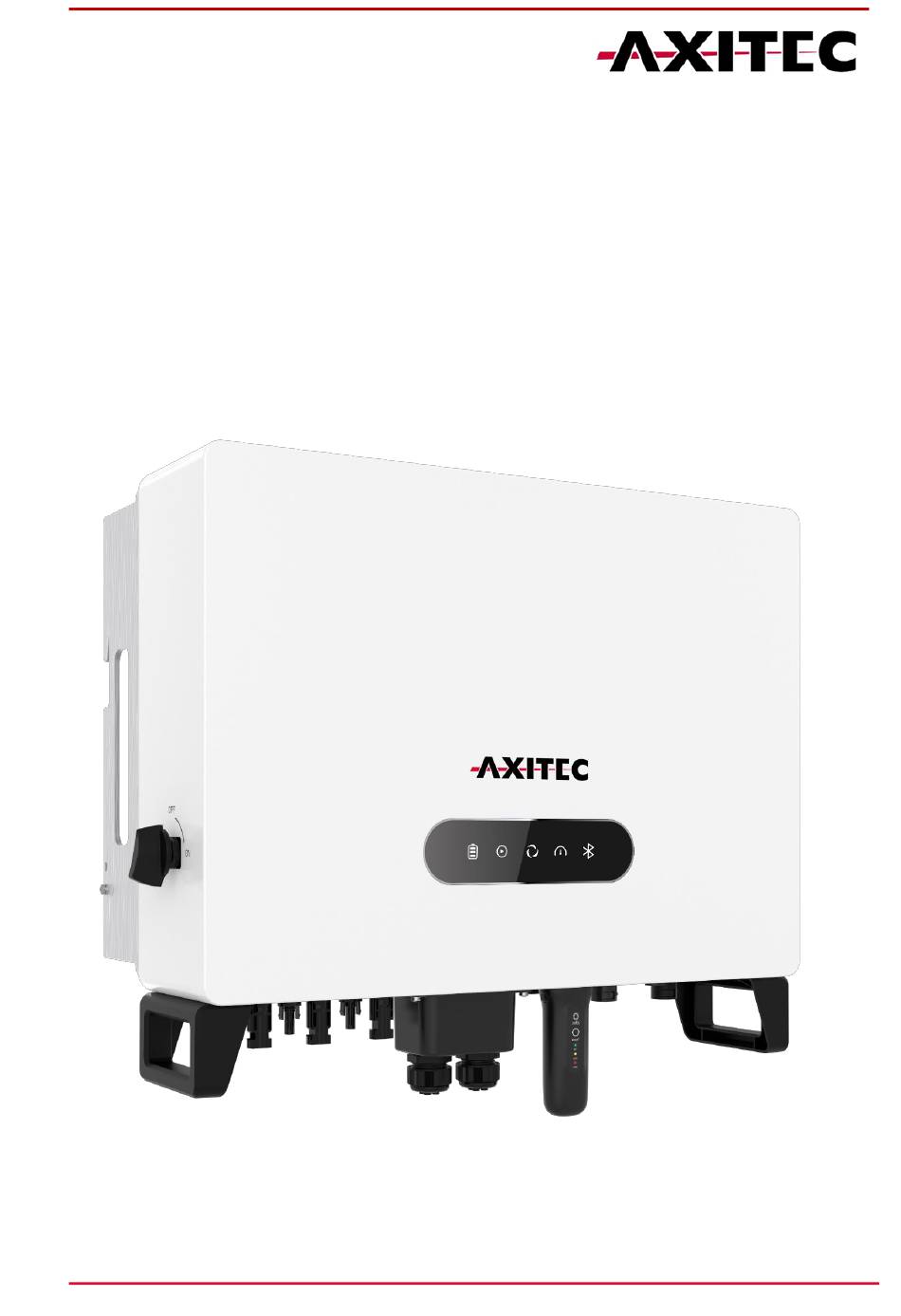

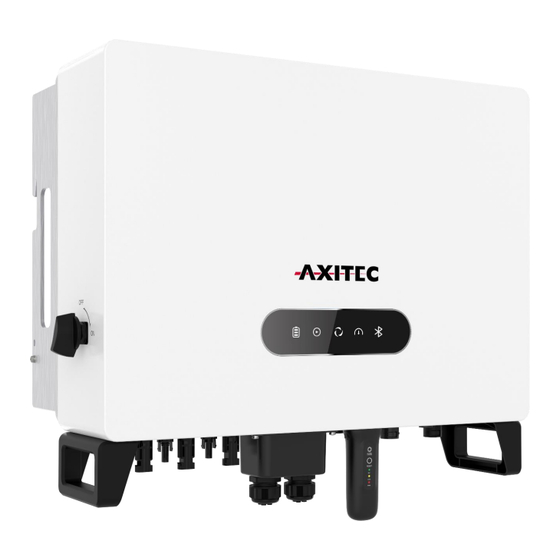

- Page 1 Quick Start Guide AXIhycon 5 – 10 H AXIhycon-EN241031 AXITEC Energy GmbH & Co. KG, Otto-Lilienthal-Str. 5, 71034 Böblingen, Germany, www.axitecsolar.com...
- Page 2 UK and Australia. (Optional) Communication ports for parallel operation (reserved). P-A/P-B (Optional) Connection for potential-free contact (reserved). DO/DI Connect the AC power supply. Connect additional communication ports (BMS, meter, RS485, DRM, P-A/P-B, DO/DI) as needed. AXIhycon-EN241031...
- Page 3 The other two CT-clamps are connected to the next phase. • The phase that has already been recognized as correct can now be ignored. The phase of the re- maining two with the largest negative active power is wired correctly. Attach the last CT-clamp to the remaining phase. AXIhycon-EN241031...
- Page 4 Use the supplied CAN cable to connect one end to the CAN port of the battery and the other end to the BMS port of the inverter. NOTE: The pin configuration of the BMS and CAN ports ad- heres to the EIA/TIA 568B standard. CAN-H is on pin 4 (blue) CAN-L CAN-L is on pin 5 (blue/white). CAN-H AXIhycon-EN241031...
- Page 5 Measure the AC voltage and frequency. Connect the photovoltaic and battery power cables to the inverter. INSTALLATION OF THE INVERTER (OFFLINE) Connect with the device INV_... During the initial setup, you will be prompted to set a password. Please follow the on-screen instruc- tions. AXIhycon-EN241031...
- Page 6 Die Rote LED gibt an, dass der Datenlogger mit Strom versorgt wird, die gelbe LED zeigt an, dass eine Verbindung zwischen Datenlogger und Wechselrichter besteht. Die grüne LED gibt an, dass der Datenlogger eine Verbindung zur AXIcloud aufge- baut hat. AXIhycon-EN241031...
- Page 7 CREATING PLANT AND ADDING DATA LOGGER Log in to the AXIcloud app. Fill in all necessary fields. Enter the owner's email address to allow them to monitor their plant. Add the logger. The inverter will appear automatically after a short period. AXIhycon-EN241031...
- Page 8 If you encounter any issues with the inverter, please identify the inverter's serial number (S/N) and contact us. We will strive to respond to your inquiry as quickly as possible. AXITEC Energy GmbH & Co. KG Otto-Lilienthal-Straße 5 D-73014 Böblingen Mail: energy@axitecsolar.com...
