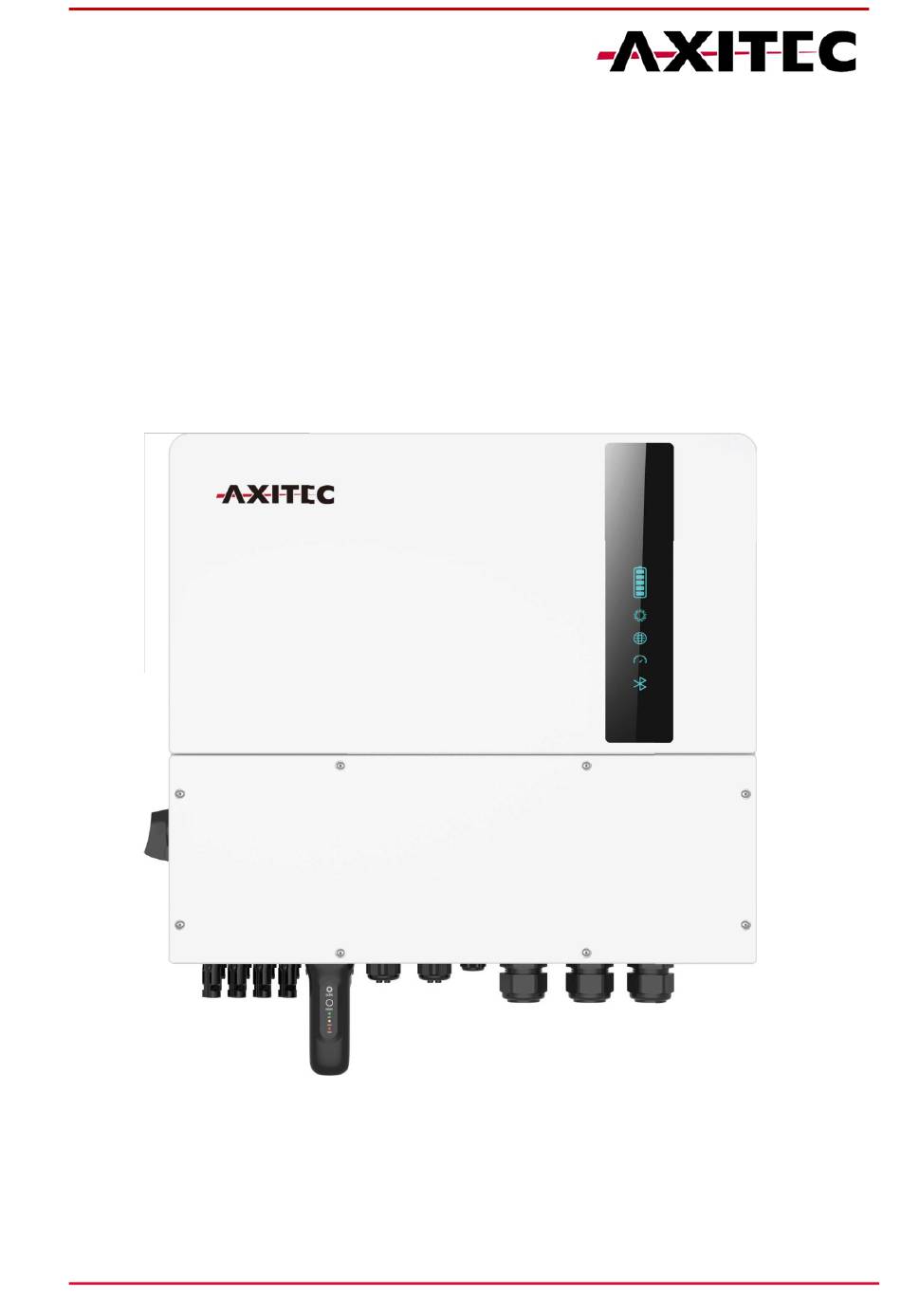

- Page 1 Quick Start Guide AXIhycon 12 – 20 H AXIhycon-EN241203 AXITEC Energy GmbH & Co. KG, Otto-Lilienthal-Str. 5, 71034 Böblingen, Germany, www.axitecsolar.com...
-
Page 2: Preparation For Start-Up
WARNING: Please be aware that this is a quick guide. It is absolutely essential to carefully read and follow the complete instructions to ensure proper setup. PREPARATION FOR STARTUP Ensure accessibility to all devices. Check the installation and ventilation of the inverter. Ensure the top of the inverter is free of obstacles. - Page 3 CONNECTORS RS485 AXIhycon-EN241203...
- Page 4 Terminal Description Used for RS485 communication. RJ45 RS485 (Optional) Parallel operation communication port. PAR-A RJ45 (Optional) Parallel operation communication port. RJ45 PAR-B Used for CAN communication between inverter and Lithium RJ45 battery BMS. (Optional)Used for RS485 communication between inverter Meter RJ45 and the smart meter.
- Page 5 ATTACH CT-CLAMPS CORRECTLY Please follow the steps below to attach the CT clamps to the correct phase: • Switch off the inverter. • Attach all three CT-clamps to one of the three phases. • Read the active power (P) on the smart meter. The phase with the greatest negative active power is wired correctly.
- Page 6 ATTACH CT-CLAMPS CORRECTLY Please follow the steps below to attach the CT clamps to the correct phase. - Check in the app - Attach all three CT clamps to one of the three phases. - Read the active power in the “Mains” area of the CT clamps in the app. - The phase with the highest negative active power is correctly wired.
- Page 7 CONNECTION OF THE POWER STORAGE SYSTEM Use the supplied CAN cable to connect one end to the CAN port of the battery and the other end to the BMS port of the inverter. NOTE: The pin configuration of the BMS and CAN ports ad- heres to the EIA/TIA 568B standard.
- Page 8 INTERNET CONNECTION INVERTER + BATTERY (RECOMMENDED) LAN-CONNECTION INVERTER Step 1: Turn on the external AC switch. Step 2: Connect the data logger via the COM port. Step 3: Connect the data logger to the router using an LAN cable. All LEDs on the data logger should be lit steadily. AXIhycon-EN241203...
- Page 9 CAUTION: No other device should be connected to the inverter via USB except for the data logger, as this may cause damage to the inverter. NOTE: The red LED indicates that the data logger is powered, the yellow LED signifies a connection between the data logger and the inverter, the green LED indicates that the data logger has established a connection to AX- Icloud.
- Page 10 CREATING PLANT AND ADDING DATA LOGGER Log in to the AXIcloud app. Fill in all necessary fields. Enter the owner's email address to allow them to monitor their plant. Add the logger. The inverter will appear automatically after a short period. AXIhycon-EN241203...
-
Page 11: Turning On The System
If you encounter any issues with the inverter, please identify the inverter's serial number (S/N) and contact us. We will strive to respond to your inquiry as quickly as possible. AXITEC Energy GmbH & Co. KG Otto-Lilienthal-Straße 5 D-73014 Böblingen Mail: service@axitecsolar.com...
