Baxton Studio 5998C Assembly Instruction

ASSEMBLY INSTRUCTION
Read this instruction carefully, remove all wrapping material, staples and straps from the carton. See
hardware and furniture part list
For guidance. Be sure you have all wooden furniture parts on a clean and soft surface to prevent from
being scratched. Follow the figure to start assembling.
Caution:
1.Do not FULLY -TIGHTEN the nut or bolt until all nut or nut bolt is ready to assembled.
2.Do not OVER- TIGHTEN the nut or nut bolt to avoid causing damages to the thread.
3.Keep all hardware part out of reach of children.
STEP 1
B
7
D
B
B
C
STEP 2
6
5
2
7
6
1 5
NO PART LIST QTY
A BACK REST
B FRONT LEG
C BOX SEAT
D CUSHION SEAT
7 C
3
5
6
A
D
4
C
MODEL: 5998C
NO DESCRIPTION
1 1 JCBC SCREW M6 X 80MM
2 2 JCBC SCREW M6 X 60MM
1 3 JCBC SCREW M6 X 40MM
4 CSK SCREW M4 X 30MM
1
5 SPRING WASHER
6 FLAT WASHER
7
M4 ALLEN KEY
A

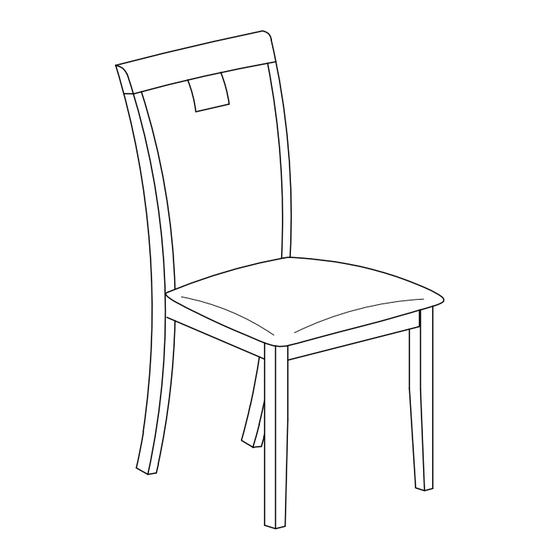

COMPLETED ASSEMBLY
QTY
4
4
2
3
10
10
1
