Owner's Manual & Installation Guide
Note: Read all instructions before proceeding with installation. All specifications are

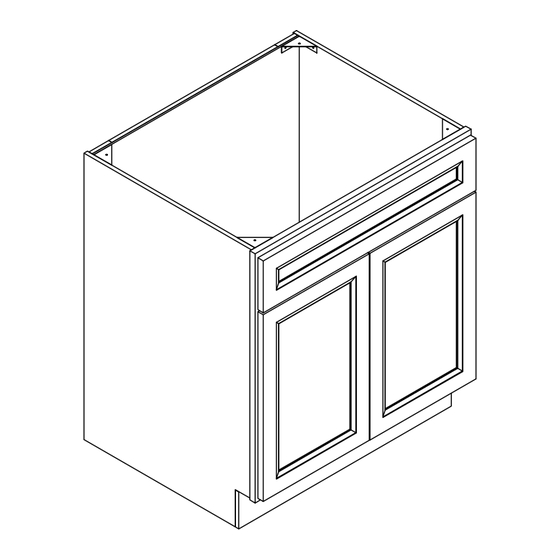

Two-Door Base Kitchen Cabinets
KSB30
KSB36
subject to change without notice.
Questions? Contact Us:
1-855-561-5222 • info@pelhamandwhite.com
Model #
KSB39
KSB45
Advertisement
Related Manuals for PELHAM & WHITE KSB30
Summary of Contents for PELHAM & WHITE KSB30
- Page 1 Owner’s Manual & Installation Guide Two-Door Base Kitchen Cabinets Model # KSB30 KSB39 KSB36 KSB45 Note: Read all instructions before proceeding with installation. All specifications are subject to change without notice. Questions? Contact Us: 1-855-561-5222 • info@pelhamandwhite.com...
- Page 2 TWO-DOOR BASE CABINET ASSEMBLY & INSTALLATION GUIDE Unpack and inspect your cabinet upon delivery to avoid costly contractor delays. Package Contents A. Back Panel x1 B. Left Panel x1 D. Toe Kick x1 C. Right Panel x1 E. Bottom Panel x1 F.
- Page 3 Base Cabinet Assembly Guide Step 1: Attach back panel (A) to left side panel (B) and right side panel (C), flip the cam-locks to secure in place. Step 2: Insert bottom panel (E) into assembled unit. Step 3: Attach toe kick (D) to the assembly unit by flipping the cam-locks, make sure they are in place.
- Page 4 Step 4: Attach front face (F) to assembled unit by inserting the tabs on the left and right side panels into the slots, and pushing down until the panel slide into the place. Base Cabinet Installation Guide For additional support on cabinets that will be loaded with heavy contents, we have included corner brackets to be used when installing.
- Page 5 STARTING IN A CORNER: Always start in a corner where two runs of cabinets will come together or at the end of the cabinet run (if there is no corner.) All doors and drawers will need to be removed prior to installation. Locate and mark wall studs for mounting hardware placement.
- Page 6 INSTALL REMAINING CABINETS: Drill a 3/16” pilot hole at the stud locations through the back panel and into the stud. Level and mount the cabinet to the wall with hardware appropriate for your wall type. If needed, shim the cabinet to level. DO NOT COMPLETELY TIGHTEN MOUNTING SCREWS UNTIL ALL CABINETS HAVE BEEN ATTACHED TOGETHER.
- Page 7 HINGE ADJUSTMENT: Review the illustrations to locate the hinge on your specific cabinet. Up/Down In/Out Left/Right Silcone Pads: Attach silicone pads (BB) on the top and bottom corners of each door. Page 7/8...
- Page 8 Care & Maintenance To keep the product clean & shining, follow the steps below. 1. For normal spills, a damp cloth is sufficient. Dry the surface immediately. 2. Cabinets can be cleaned with most general purpose household cleaners. 3. Do not use caustic agents and/or abrasive scrubbers, or oven cleaners.
