YORKTOWN

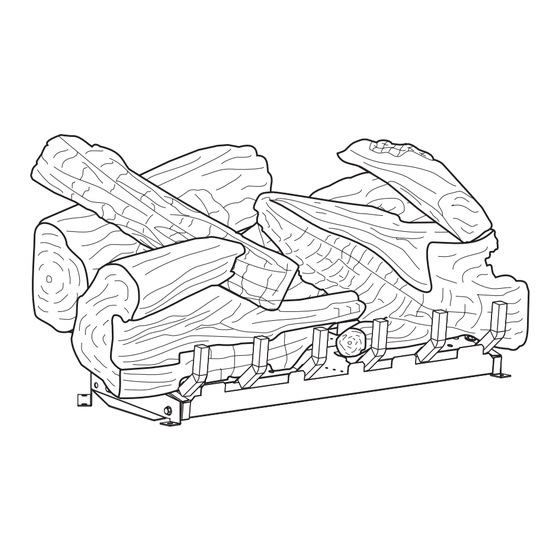

LS-24YK-1 Shown
Installer: Leave this manual with the appli-
ance.
consumer: retain this manual for future refer-
ence.
wArNINg: If the information in these in-
structions are not followed exactly, a fire or ex-
plosion may result causing property damage,
personal injury or loss of life.
— Do not store or use gasoline or other flamma-
ble vapors and liquids in the vicinity of this or
any other appliance.
— wHAT TO DO If YOu SMeLL gAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not
use any phone in your building.
•
Immediately call your gas supplier from
a neighbor's phone. follow the gas sup-
plier's instructions.
•
If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
INSTALLATION INSTrucTIONS
AND OwNer'S MANuAL
LOg SeT fOr uNVeNTeD
gAS LOg HeATer
VeNTeD DecOrATIVe APPLIANce
MODeLS
ALS-18YK-1
ALS-24YK-1
ALS-30YK-1
Log sets comply with ANSI Z21.11.2 unvented
Heaters and also comply with ANSI Z21.60
Decorative Vented Appliances for Solid fuel
Burning fireplaces. State or local codes may only
allow operation of log sets in a vented configuration.
check your state or local codes.
wArNINg: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
Or
Page 1
Advertisement
Related Manuals for American Hearth ALS-24YK-1
Summary of Contents for American Hearth ALS-24YK-1
- Page 1 AND OwNer'S MANuAL YORKTOWN LOg SeT fOr uNVeNTeD gAS LOg HeATer VeNTeD DecOrATIVe APPLIANce MODeLS ALS-18YK-1 ALS-24YK-1 ALS-30YK-1 LS-24YK-1 Shown Installer: Leave this manual with the appli- ance. consumer: retain this manual for future refer- ence. wArNINg: If the information in these in-...
- Page 2 TABLe Of cONTeNTS Section Page Important Installation Guidelines ........................3 General Information............................3 Requirements for Canada ..........................4 Log Placement LS(18,24)YK ..........................5 Log Placement LS30YK ..........................6 Ember Placement LS-18YK Photos ........................7 Ember Placement LS-24YK Photos ........................8 Ember Placement LS-30YK Photos ........................9 Parts Lists and Parts Views ..........................10 How to Order Repair Parts ..........................10 Service Notes ..............................11 Page 2...
- Page 3 IMPOrTANT INSTALLATION guIDeLINeS a vent-free log set can cause the flame to impinge on the log and Proper Log Placement create a sooting situation. Log placement is critical to proper burner performance. Logs must be correctly positioned onto the burner. The photos in this manual wArNINg: Do not allow fans to blow directly into the fireplace.
- Page 4 reQuIreMeNTS fOr cANADA normal temporary occurrence. A window should be opened This unit cannot be installed in a UNVENTED application, this during the initial bake out period. unit can only be installed as a VENTED application with these • Keep burner and control compartment clean. requirements.
- Page 5 LOg PLAceMeNT LS-(18,24)YK Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash your hands gently with soap and water. All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance.
- Page 6 LOg PLAceMeNT LS-30YK Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash your hands gently with soap and water. All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance.
- Page 7 eMBer PLAceMeNT LS-18YK-1 PHOTOS 24978-1-0509 Page 7...
- Page 8 eMBer PLAceMeNT LS-24YK-1 PHOTOS Page 8 24978-1-0509...
- Page 9 eMBer PLAceMeNT LS-30YK-1 PHOTOS 24978-1-0509 Page 9...
- Page 10 REAR LEFT LOG R10259 REAR LEFT LOG R10273 TOP LEFT LOG TOP LEFT LOG R10268 TOP CENTER LOG R10262 TOP CENTER LOG R10262 ALS-24YK-1 INDex DeScrIPTION PArT NuMBer LeTTer FRONT LEFT LOG R10264 FRONT RIGHT LOG R10265 REAR RIGHT LOG R10267...
- Page 11 SerVIce NOTeS 24978-1-0509 Page 11...
- Page 12 A Registered Trademark of Empire Comfort Systems Inc. 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.americanhearth.com Page 12 24978-1-0509...
