If not installed, operated and maintained in ac-
cordance with the manufacturer's instructions,
this product could expose you to substances in
fuel or from fuel combustion which can cause
death or serious illness.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do
not use any phone in your building.
•
Leave the building immediately.
•
Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
•
If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency or the gas supplier.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
Note: Barrier required, but may be sold separately.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING
WARNING
HOT GLASS
CAUSE BURNS.
DO NOT TOUCH
UNTIL COOLED.
NEVER
ALLOW CHILDREN
TO TOUCH GLASS.

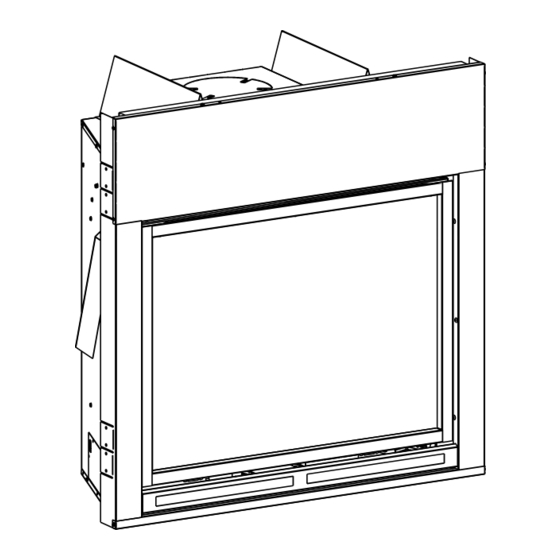

DIRECT VENT ZERO CLEARANCE
GAS FIREPLACE HEATER
MULTIFUNCTION REMOTE (MF)
MH30033
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
WILL
GLASS
MODEL SERIES:
ADVCX(36,42)FP91(N,P)-1
GAS-FIRED
Page 1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for American Hearth ADVCX36FP91N-1
Summary of Contents for American Hearth ADVCX36FP91N-1
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS AND OWNER’S MANUAL INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. DIRECT VENT ZERO CLEARANCE WARNING GAS FIREPLACE HEATER If not installed, operated and maintained in ac- cordance with the manufacturer’s instructions, MODEL SERIES: this product could expose you to substances in fuel or from fuel combustion which can cause... - Page 2 BEFORE YOU START Read the safety information on Pages 60 - 61. If located in the Commonwealth of Massachusetts, please note the special requirements on Page 62. Where are you going to install the unit? See Page 14. Frame the opening. See Page 15. Install the gas lines.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION PAGE CARTON CONTENTS ..............................4 INTRODUCTION ................................5 SPECIFICATIONS ................................ 6 HARDWARE PACKAGE .............................. 7 ACCESSORIES ................................7 FIREPLACE DIMENSIONS ............................8 CLEARANCES ................................ 9-10 COMBUSTIBLE MATERIAL ............................10 VENT TERMINATION CLEARANCES ........................11 VENT TERMINATION CLEARANCES ........................12 GAS SUPPLY ................................ -
Page 4: Carton Contents
CARTON CONTENTS INDEX DESCRIPTION NUMBER SUPPLIED Rock Wool Receptical Cover Receptical Flue Restrictor Assembly - NAT or LP Hardware Pack AA Battery AAA Battery Remote Not Shown Log Set (see Page 32) 1 set Not Shown Fireplace Not Shown Accessory Sheet Not Shown Product Registration Card See Parts Lists on Pages 52 - 55 for ordering replacement parts. -
Page 5: Introduction
INTRODUCTION Instructions to Installer The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code 1. Installer must leave instruction manual with owner after ANSI Z223.1/NFPA 54* Natural Gas and Propane Installation installation. -
Page 6: Specifications
SPECIFICATIONS ADVCX36NAT ADVCX36LP ADVCX42NAT ADVCX42LP Input BTU/Hr Maximum 37,000 34,000 40,000 36,000 Input BTU/Hr Minimum 26,000 27,000 27,000 29,000 KWH (Maximum) 10.84 9.96 11.72 10.55 KWH (Minimum) 7.62 7.91 7.91 Orifice (Front / Rear) 47 / 42 58 / 1.45 44 / 40 57 / 1.45 Air Shutter Opening... -
Page 7: Hardware Package
HARDWARE PACKAGE HEX HEAD SCREW 10 X 1/2 ACCESSORIES The following parts can be obtained from your Empire Comfort Systems dealer. Contact your Empire Dealer for more accessory options. If you need additional information beyond what your dealer can furnish, contact Empire Comfort Systems Inc., 918 Freeburg Ave., Bel- leville, Illinois 62220-2623. -
Page 8: Fireplace Dimensions
FIREPLACE DIMENSIONS DIMENSIONS (in inches) INDEX DIMENSION DESCRIPTION LETTER ADVCX36FP ADVCX42FP The maximum height of firebox face (excluding standoffs) 41-7/8 41-7/8 The maximum width of the firebox face (excluding nailing flanges) 42-1/4 46-1/4 The maximum depth of the firebox 22-1/16 22-1/16 The height of the firebox opening 27-1/2... -
Page 9: Clearances
CLEARANCES Mantel Chart Clearance to Combustibles Back Stand-off 0" (0 mm) Side Stand-off 0" (0 mm) Floor 0" (0 mm) Top Stand-off 0" (0 mm) Top Framing Edge 6” (152 mm) SEE MANTEL CHART FOR MAXIMUM MANTEL DEPTH 2" x 4" HEADER SEE MANTEL CHART STAND-OFF FOR MINIMUM HEIGHT... -
Page 10: Combustible Material
CLEARANCES WARNING This fireplace has not been tested nor approved to have a televi- sion or other electrical appliance installed above it. Clearance from bottom of fireplace to ceiling is 84 inches. Clearance from side of fireplace to adjacent sidewall is 6 inches. Television Considerations Installing a television above a fireplace has become increasingly popular;... -
Page 11: Vent Termination Clearances
VENT TERMINATION CLEARANCES Termination clearance for buildings with combustible and noncombustible exteriors. Figure 7 Vertical Sidewall Installations The graph showing the relationship between vertical and horizontal Important! Minimum clearance between vent pipes and combustible side wall venting will help to determine the various vent lengths materials is 3 inches (76 mm) on top, and 1 inch (25 mm) on bottom allowable. -
Page 12: Vent Termination Clearances
VENT TERMINATION CLEARANCES Canadian Installations1 US Installations2 Canadian Installations1 US Installations2 A= Clearance above grade, 12 in (30 cm) 12 in (30cm) I= Clearance to service veranda, porch, deck, or regulator vent outlet 3 ft (91 cm) 6 ft balcony B= Clearance to window or 6 in (15 cm) for appli- 6 in (15 cm) for appli-... -
Page 13: Gas Supply
GAS SUPPLY The gas pipeline can be brought in through the right or left side of Never use an exposed flame to check for leaks. Appliance must the appliance. Consult the current National Fuel Gas Code, ANSI be disconnected from piping at inlet of control valve and pipe capped or plugged for pressure test. Never pressure test with Z223.1 CAN/CGA-B149 (.1 or .2) installation code. -
Page 14: Locating Fireplace
LOCATING FIREPLACE Note: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet with a minimum vertical run of 8 feet. See details in Venting Section. Note: When installing this appliance against an exterior wall, insulate to applicable insulation codes. When you install your Direct Vent Fireplace in Room divider or Flat on wall corner positions, a minimum of 6 inches clearance must be maintained from the perpendicular wall and the front edge of the appliance. -
Page 15: Installation
INSTALLATION Framing Framing and Finishing Fireplace framing can be built before or after the fireplace is set Choose unit location. in place. Framing should be positioned to accommodate wall Frame in fireplace with a header across the top. It is important covering and fireplace facing material. - Page 16 INSTALLATION (continued) Vent Pipe Clearance Note: Maintain two inches of clearance around vertical vent pipe on first twelve inches. See Figure 16. For horizontal vent, maintain a minimum one-inch clearance to the bottom and sides of the vent, and three-inch clearance to combustibles above the vent pipe.
- Page 17 INSTALLATION (continued) Attention: Cold climate installation recommendation: When installing this unit against a non-insulated exterior wall, the outer walls should be insulated to conform to applicable codes. Finish the joint between the fireplace and wall with sealant rated at 300 degrees F, or tile/stone over the joint. Vent Runs In planning the installation for the fireplace, it is necessary to install certain components before the appliance is completely positioned...
- Page 18 INSTALLATION (continued) VERTICAL, 90 DEGREE ELBOW TO HORIZONTAL OUT THE After installing the vent system, install flue heat shield. WALL (12 inch minimum rise before elbow) Hand bend tabs on flue heat shield out 90°. Attach to insulation box as shown in Figure 26. Figure 26 (vent pipe removed for clarity) Dimensions (in inches) 14 to 15-1/2 4-3/4 to 6-1/4...
-
Page 19: Vent System Identification
VENT SYSTEM IDENTIFICATION Begin the vent system installation by selecting the type of venting installation. Check pipe diameter on vent system and fireplace to verify the size is the same. to be installed and the path that it will take. Verify that clearances are met throughout the path of the venting system. -
Page 20: Venting Fireplace
VENTING FIREPLACE The minimum hole location dimensions for through the wall CAUTION horizontal installations with a 90 degree elbow and 12 inch rise off the top of the fireplace. Use flue restrictor for vertically terminated units only. Do not use for horizontally terminated units. Incorrect usage may cause sooting. - Page 21 VENTING FIREPLACE Positioning the Fireplace Below Grade Installation Determine the exact position of the appliance so the direct-vent When it is not possible to meet the required vent termination termination will be centered (if possible) between two studs. This clearances of 12 inches (305 mm) above grade level, a snorkel kit is will avoid any extra framing.
-
Page 22: Venting Fireplace
VENTING FIREPLACE VENTING GRAPH (Dimensions in Feet) To Use the Vent Graph Determine the height of the center of the horizontal vent pipe. Using this dimension on the Sidewall Vent Graph, locate the point it intersects with the slanted graph line. From the point of this intersection, draw a vertical line to the bottom of the graph. -
Page 23: Top Vent - Horizontal Termination
TOP VENT - HORIZONTAL TERMINATION One 90° Elbow Two 90° Elbows Note: Subtract 3 feet from the total horizontal measurement for INSTALLED VERTICALLY each 90° elbow installed horizontally. Subtract 1-1/2 feet from the total horizontal measurement for each 45° elbow installed hori- zontally. -
Page 24: Top Vent - Vertical Termination
TOP VENT - VERTICAL TERMINATION No Elbows Three 90° Elbows Note: Subtract 3ft (914 mm) from the total horizontal measure- ment for each 90° elbow installed horizontally. Subtract 1-1/2 ft (457 mm) from the total horizontal measurement for each 45° el- bow installed horizontally. -
Page 25: Vertical Termination
VERTICAL TERMINATION General Maintenance Locate and mark the center point of the vent pipe using a nail on Inspect venting system semi-annually as follows: the underside of the roof. Drive the nail through the center point. 1. Check for corrosion areas of the venting system exposed to Mark the outline of the roof hole around this center point. -
Page 26: Vertical Termination
VERTICAL TERMINATION (continued) Installing the Vent System in a Chase Vertical Through the Roof Applications A chase is a vertical box-like structure built to enclose the gas Your Gas Fireplace has been approved for: appliance and/or its vent system. Vertical vent runs on the outside of a) Vertical installations up to 40 feet in height. -
Page 27: Framing And Finishing
FRAMING AND FINISHING Installing Support Brackets NAILS, 4 REQUIRED Install a horizontal pipe support used for each 3 feet of horizontal run to framing members. Allow 3 inch clearance to combustibles above 8 inch diameter pipe and elbows and 1 inch clearance on both sides and bottom. - Page 28 FRAMING AND FINISHING (continued) Vertical Firestops Vertical runs of this system which pass through ceilings require the use of ONE ceiling firestop at the hole in each ceiling through which the vent passes. Position a plumb bob directly over the center of the vertical vent component and mark the ceiling to establish the center point of the vent.
-
Page 29: Dvvk-5F Flex Vent Instructions
DVVK-5F FLEX VENT INSTRUCTIONS The DVVK-5F FLEX VENT KIT includes the following compo- nents: • (1) Horizontal Termination Cap • (1) 4-foot section of Flex vent with spacers (5-inch flue/ 8-inch outer pipe) with flue adapter collar • (1) Wall Firestop/Thimble Assembly •... - Page 30 DVVK-5F FLEX VENT INSTRUCTIONS Prior to making the vent connections, apply high temperature sealant (1000°F min.) to the vent connections before securing with the band clamps provided. Note: the flue pipe end without the adapter is to be installed to the Termination Cap. 10.
-
Page 31: Liner Placement
LINER PLACEMENT Note: Install Ceramic Fiber or Reflective Liner before placing logs. Refer to the instructions that came with your Liner for proper installation. GLOWING EMBERS Use only the amount of glowing embers supplied with your fireplace. Applying excess glowing embers may adversely affect fireplace performance. If you mix in platinum embers (for a distinctive glow), remove a like amount of embers from the kit supplied with the fireplace. -
Page 32: Log Identification
LOG IDENTIFICATION Part Number Front View Top View & Description 34199 Bottom Rear Log (A) 34191 Left Log B 34200 Rear Top Log (C) 34196 Center Front Log (D) 34197 Center Left Log (E) 34192 Front Left Log (F) 34198 Center Right Log (G) 34193 Front Right Log (H) -
Page 33: Log Placement
LOG PLACEMENT Place Bottom Rear Log (A) onto Burner Pins 1 and 2. Burner Pin Layout Note: Ember material not shown for clarity. 35363-3-1015 Page 33... - Page 34 LOG PLACEMENT Place Left Log (B) onto Burner Pins 3 and 4. Burner Pin Layout Note: Ember material not shown for clarity. Page 34 35363-3-1015...
- Page 35 LOG PLACEMENT Place Rear Top Log (C) onto Burner Pin 5 and the rear pin on Left Log (B). Note: Ember material not shown for clarity. 35363-3-1015 Page 35...
- Page 36 LOG PLACEMENT Place Center Front Log (D) onto Burner Pins 6 and 7. Note: Ember material not shown for clarity. Page 36 35363-3-1015...
- Page 37 LOG PLACEMENT Place Center Left Log (E) onto Burner Pin 8 and the front pin on Left Log (B). Burner Pin Layout Note: Ember material not shown for clarity. 35363-3-1015 Page 37...
- Page 38 LOG PLACEMENT Place Left Log (F) onto Burner Pin 9 and the pin on Center Front Log (D). Burner Pin Layout Note: Ember material not shown for clarity. Page 38 35363-3-1015...
- Page 39 LOG PLACEMENT Place Center Right Log (G) onto Burner Pin 10 and the pin on Center Left Log (E). Note: Ember material not shown for clarity. 35363-3-1015 Page 39...
- Page 40 LOG PLACEMENT Place Front Right Log (H) onto Burner Pins 11 and 12. Burner Pin Layout Note: Ember material not shown for clarity. Page 40 35363-3-1015...
- Page 41 LOG PLACEMENT Place Log Chunk (I) to the outside of the burner as shown. Note: Ember material not shown for clarity. 35363-3-1015 Page 41...
- Page 42 LOG PLACEMENT Place Right Log (J) onto the pins on Rear Top Log (C) and Front Right Log (H). Burner Pin Layout Note: Ember material not shown for clarity. Page 42 35363-3-1015...
- Page 43 LOG PLACEMENT Completed Logset Note: Ember material not shown for clarity. 35363-3-1015 Page 43...
-
Page 44: Lighting Instructions
LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device which au- Follow the gas supplier's instructions. -
Page 45: Ipi System Wiring Diagram
IPI SYSTEM WIRING DIAGRAM If any of the original wire as supplied with this unit must be CAUTION replaced, it must be replaced with equivalent gauge and tem- Do not operate the appliance with glass panel removed, perature rated wire. cracked or broken. -
Page 46: Remote Control Operation Instructions
REMOTE CONTROL OPERATION INSTRUCTIONS NOTICE: ON/OFF rocker switch must be ON for the remote to operate. Features: Blue LCD display Main Burner ON/OFF Main Burner flame modulation (6 levels) ON/OFF Button Choice of standing or intermittent pilot THERMOSTAT Button Thermostat or Smart thermostat functions UP/DOWN Arrow Button On/Off relay* MODE Button... - Page 47 REMOTE CONTROL OPERATION INSTRUCTIONS Initializing the System for the First Time Turn the Appliance ON and OFF Install the three AAA type batteries in the Transmitter battery With the system OFF, press the ON/OFF key on the Trans- bay located on the base of the Transmitter (back side). See mitter.
- Page 48 REMOTE CONTROL OPERATION INSTRUCTIONS Remote Flame Control The Proflame has six flame levels. With the system ON and the flame level at the maximum in the appliance, pressing the DOWN ARROW key once will reduce the flame height by one step until the flame is turned OFF. The UP ARROW key will increase the flame height each time it is pressed.
- Page 49 REMOTE CONTROL OPERATION INSTRUCTIONS SMART Thermostat Operation Fan Speed Control The Smart Thermostat function adjusts the flame height in accor- The speed of the fan can be controlled by the Proflame system. dance with the difference between the set point temperature and The fan speed can be adjusted through six speeds.
- Page 50 REMOTE CONTROL OPERATION INSTRUCTIONS Accent Light Control Continuous Pilot/Intermittent Pilot (CPI/IPI) Selection With the system in “OFF” position press the MODE key (Figure The light function controls the light by the dimmable light control. To activate this function, use the Mode Button (Figure 57a) to 57a) to index to the CPI mode icon.
- Page 51 REMOTE CONTROL OPERATION INSTRUCTIONS Key Lock Using Without a Remote Control This function will lock the keys to avoid unsupervised operation. Remove the decorative front and outer surround to access the module. With the ON/OFF rocker switch in the ON position, press To activate this function, press MODE and UP keys at the same with SW1 button on the module.
-
Page 52: Intermittent Pilot Parts View
PARTS VIEW INTERMITTENT PILOT Page 52 35363-3-1015... -
Page 53: Intermittent Pilot Parts List
PARTS LIST INTERMITTENT PILOT PART NO. INDEX NO. DESCRIPTION ADVCX36 ADVCX42 R11585 R11585 PILOT ASSEMBLY, NAT R11586 R11586 PILOT ASSEMBLY, LPG 33633 33633 THERMOCOUPLE SHIELD 34005 34005 BURNER REAR WELDED ASSEMBLY 34006 34006 BURNER FRONT WELDED ASSEMBLY R10602 R10602 VENTURI GASKET (QTY. 2) R10432 R10432 VENTURI (QTY. -
Page 54: Fireplace - All Units Parts View
FIREPLACE - ALL UNITS PARTS VIEW Page 54 35363-3-1015... -
Page 55: Fireplace - All Units Parts List
FIREPLACE - ALL UNITS PARTS LIST PART NUMBER INDEX NO. DESCRIPTION DVCX36 DVCX42 R11935 R11935 INSULATION TOP, CENTER 34050 34051 OUTER WRAPPER TOP ASSEMBLY 34054 34054 FLUE RESTRICTOR ASSEMBLY - NAT 34062 34062 FLUE RESTRICTOR ASSEMBLY - LPG R7567 R7567 INLET VENT ADAPTER, 8 R7573 R7573... -
Page 56: Maintenance And Service
MAINTENANCE AND SERVICE General Glass Information NOTE It is normal for steel appliances to make expansion and/or WARNING contraction noise during the start-up or cool-down cycle. Do not operate appliance with the glass front removed, Similar noises are found with your furnace heat exchanger cracked or broken. -
Page 57: Maintenance And Service
MAINTENANCE AND SERVICE Glass & Barrier Removal Remove the lower panel. Lift off and remove the barrier screen. Release two glass frame clamps at bottom of firebox. Remove glass frame. Glass & Barrier Replacement Place the glass frame into fireplace. Attach two glass frame clamps at bottom of firebox. -
Page 58: Control System Troubleshooting
CONTROL SYSTEM TROUBLESHOOTING If the IFC is signaling lock out: The Verify the electrical connections’ integrity and board should be unlocked to make sure they are in accordance with the relevant reinitiate a pilot flame ignition (for Is the IFC board in system wiring diagram. -
Page 59: Control System Troubleshooting
CONTROL SYSTEM TROUBLESHOOTING Replace IFC board. Main burner lights when the pilot only Replace the gas valve. should light. Verify the pilot flame fully engulfs the tip of the sense electrode. If not, replace the pilot assembly. Replace the pilot assembly. Carefully clean the electrical connections of the sense cable and the IFC board sense cable connection. -
Page 60: Important Safety Information
IMPORTANT SAFETY INFORMATION Definitions DANGER: Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE: Addresses practices not related to personal injury. -
Page 61: Safety Information For Users Of Lp Gas
SAFETY INFORMATION FOR USERS OF LP GAS Propane (LP-Gas) is a flammable gas which can cause its odor intensity. fires and explosions. In its natural state, propane is odor- LP-Gas may stratify in a closed area, and the odor intensity less and colorless. You may not know all the following could vary at different levels. Since it is heavier than air, there safety precautions which can protect both you and your may be more odor at lower levels. -
Page 62: Requirements For Massachusetts
REQUIREMENTS FOR MASSACHUSETTS For all side wall horizontally vented gas fueled equipment 3. SIGNAGE. A metal or plastic identification plate shall be installed in every dwelling, building or structure used in permanently mounted to the exterior of the building at a whole or in part for residential purposes, including those minimum height of eight feet above grade directly in line owned or operated by the Commonwealth and where the... -
Page 63: Master Parts Distributor List
MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. -
Page 64: Warranty
WARRANTY Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods speci- fied below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual.
