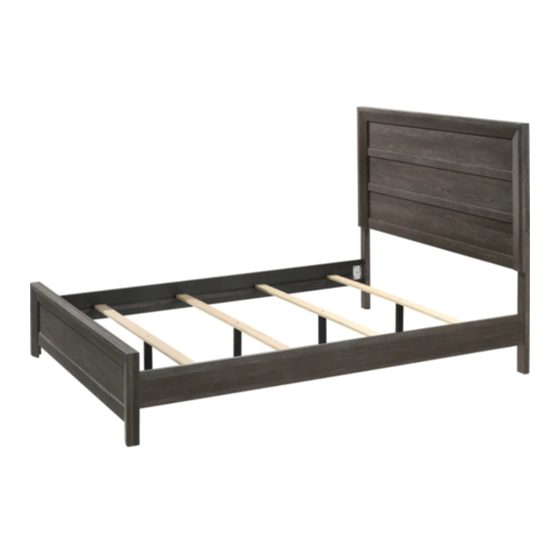

Living Spaces Holin B6700-F-HBFB Assembly Instruction

A
SSEMBLY
I
NSTRUCTION
(BOX 1)
BOX OF HEADBOARD & FOOTBOARD
ITEM DRAWING
A
B
C
D
E
F
(BOX 2)
BOX OF SIDE RAIL
G

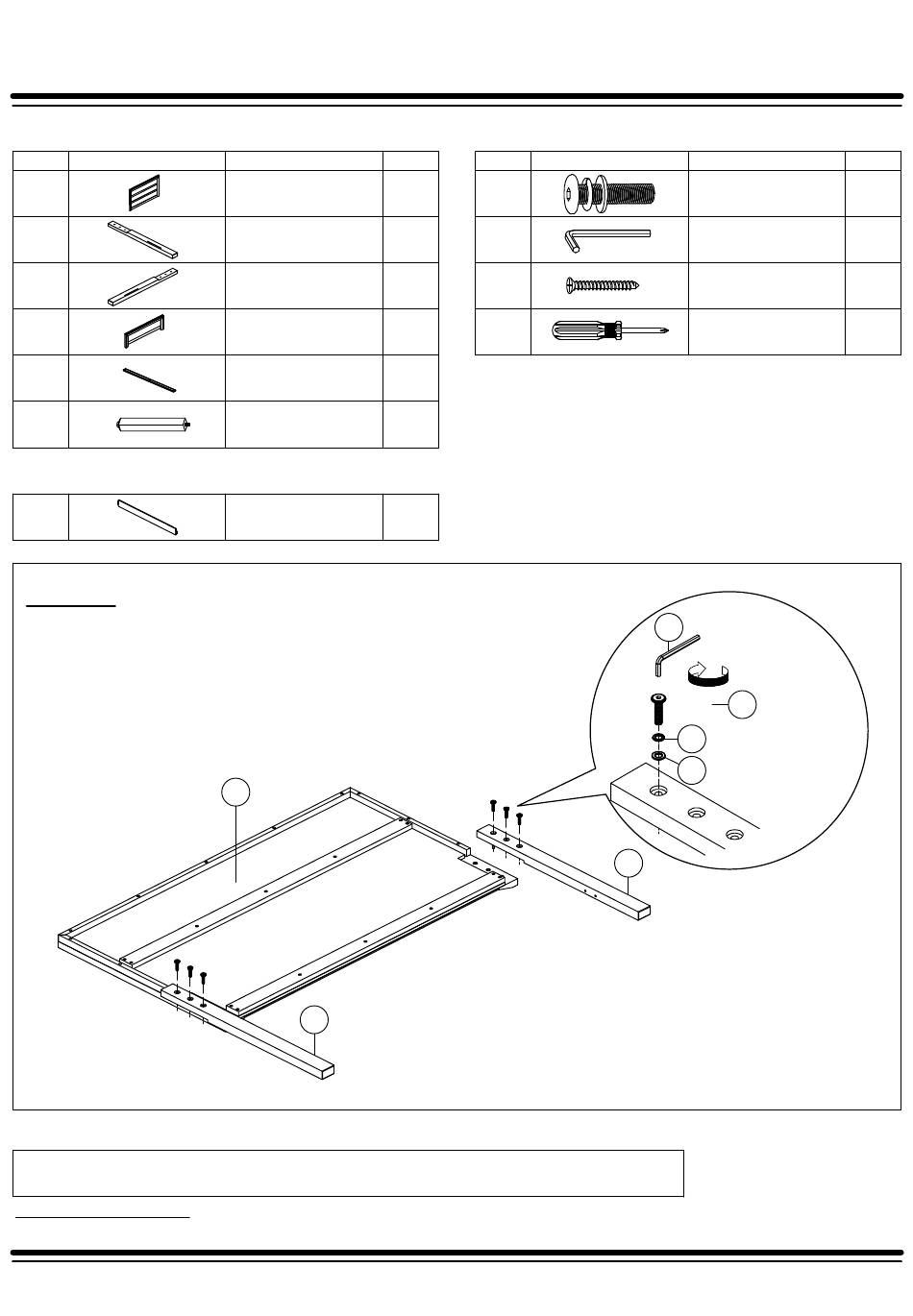

Step 1
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREWS MAY LOOSE.
CHECK TIGHNESS OF ALL SCREWS VERY 6-8 WEEKS.
CLEANING INSTRUCTION
After assembled, clean & polish the completed parts if necessary with soft cloth and industrial recognized furniture polish
QTY
DESCRIPTION
HEADBOARD
PANEL
LEFT
HEADBOARD LEG
RIGHT
HEADBOARD LEG
FOOTBOARD
WOODEN SLAT
WOODEN
SUPPORT
SIDE RAIL
A
C
MODEL NO:B6700-F-HBFB & B6700-FT-RAIL
FOR HEADBOARD, FOOTBOARD & SIDE RAIL
(BOX 1)
HARDWARE LIST
ITEM DRAWING
1 1
1 2
3
1
1 4
The manufacturer does not provide item 6.
4
4
2
PAGE 1 OF 2
B6710-F-HBFB & B6710-FT-RAIL
DESCRIPTION
JCBC M8 x 35mm With
Spring Washer With
Flat Washer
ALLEN KEY (M5)
CSK SCREW
(M4 x 32mm)
SCREW
DRIVER (*)
4
1
2
3
B
MADE IN MALAYSIA
QTY
6
1
8
1
FULL BED K/D
