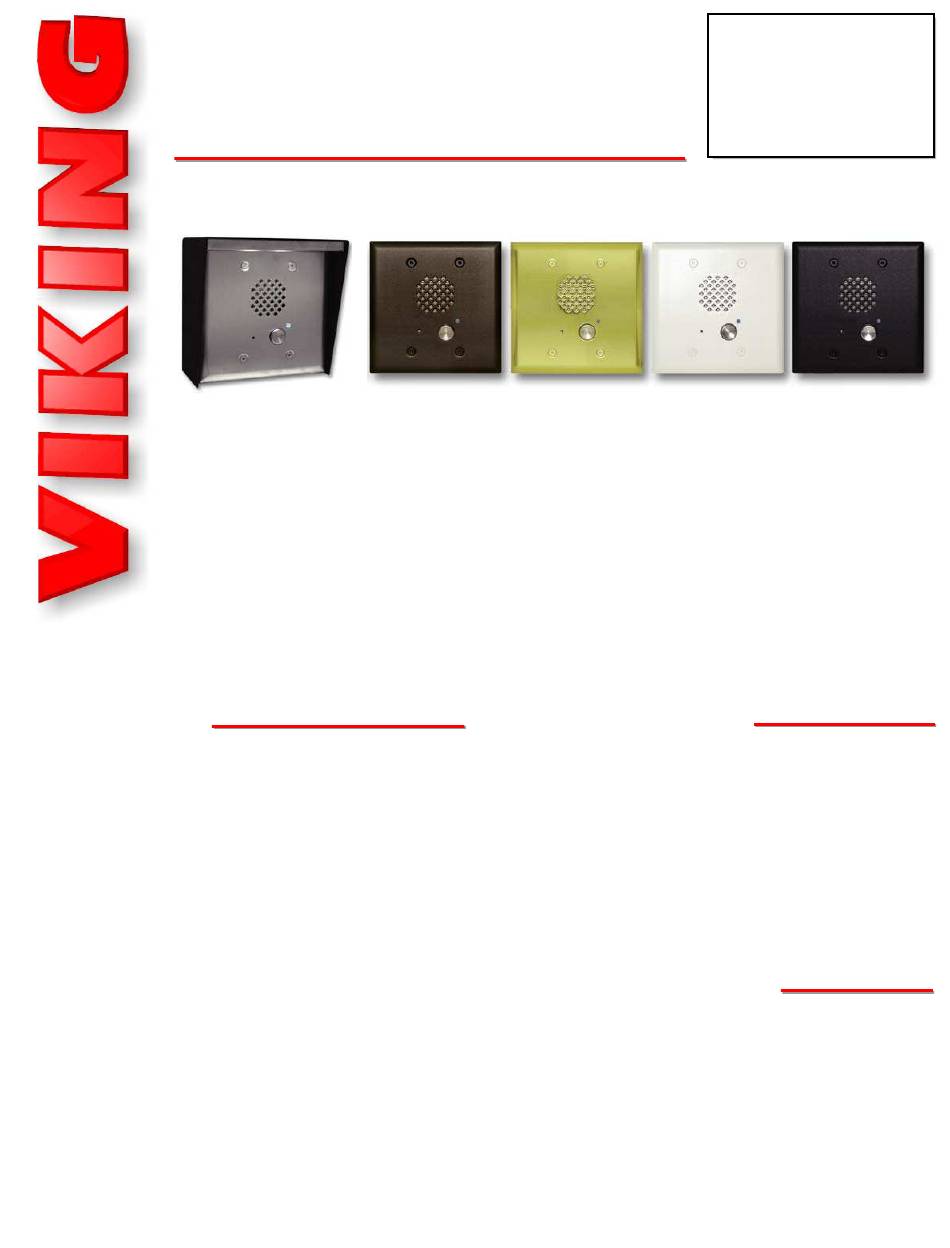

Entry Phones Now Mount in a Standard Double Gang Box
"Brushed Stainless Steel"
(similar to brushed nickel) Shown
with optional VE-5x5 surface mount
box and VE-LIGHT kit (not included)
The E-60 Series entry phones are compact, vandal resistant, telephone line powered speaker phones designed to provide two-
way handsfree communication. The E-60's compact size allows it to be mounted in a standard double gang electrical box. The
E-60 is available in five different attractive finishes to match your door hardware, light fixtures, etc. Replacement E-60 faceplates
(PNL60) can be purchased separately and are available in all five standard finishes. The E-60's blue LED continually provides
light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming ring.
The E-60 entry phones can share a single phone line with house or small business telephones when used with a Viking model
C-200, C-250, C-500 or C-2000B Entry Phone controller. The E-60 entry phones can also be connected to an unused analog
station port (programmed for ring down) on a phone system or connected directly to a telephone line when used with a Viking
model K-1900-5 or K-1900-30 auto dialer. The E-60 features microphone and speaker volume controls, selectable auto answer
for monitoring and intelligent call progress detection for automatic hang-up when the call is completed. For outdoor installations
where the unit is exposed to precipitation or condensation, the E-60 Series is available with Enhanced Weather Protection
(EWP). For more information on EWP, see DOD# 859.
F e a t u r e s
F e a t u r e s
• Compact size: Front panel is the size of a typical double gang mid-
size wall plate
• Mounting: Flush mounts in a double gang electrical box (2.25" deep
x 3.65" wide x 2.84" tall minimum) or surface mounts in a Viking
model VE-5x5 (not included, see DOD# 424) for mounting to a wall,
post or VE-GNP Gooseneck Pedestal (EWP recommended)
• Available in 5 standard faceplate finishes: Brushed Stainless Steel,
Oil Rubbed Bronze, Polished Brass, Satin Black and Satin White
• PNL-60 faceplates: Replacement faceplates with matching screws
available in all five standard finishes
• Vandal Resistant Features: 16 gauge polished brass or 18 gauge
304 stainless steel faceplate, 316 stainless steel push button,
stainless steel speaker screen, scratch resistant powder coating,
hex drive mounting screws
• Weather Resistant Features: Mylar speaker, faceplate gasket,
mic and speaker gasket, internally sealed (IP67) push button
switch, self draining mic mount and UV stable weather resistant
powder coating (excluding E-60-SS 304 Stainless Steel faceplate)
• E-60-EWP is designed to meet IP66 Ingress Protection Rating
(see DOD# 859 for more information)
• Blue LED helps locate the push button, indicate ringing and off-hook
• Telephone line powered
• Programmable intelligent call progress detection for automatic
hang-up on CPC, silence, busy signal, or time out
• Selectable auto answer feature for monitoring
• VE-LIGHT: Optional faceplate light kit for use with the VE-5x5
S
S
C O M O L U T I O N S
C O M O L U T I O N S
E-60-SS

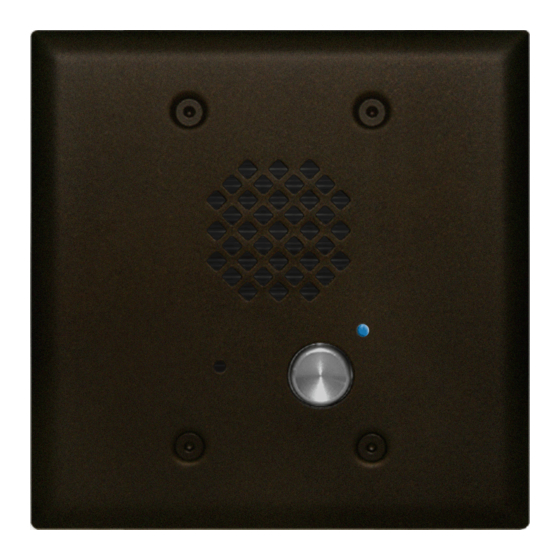

"Oil Rubbed Bronze"
(satin dark brown powder
paint with fine copper metallic)
P r a c
P r a c
2 1 C
2 1 C
F O R T H E S T
F O R T H E S T
E-60-BN E-60-PB
"Polished Brass"
(with clear gloss powder
paint to prevent tarnishing)
A p p l
A p p l
• Door or gate communication, business delivery entrances
• Use with a Viking C-200 or C-250 to control an E-60 on a single line
• Use with a Viking C-500 to control 1 or 2 (expandable to 8) E-60's
and door/gate control on a single phone line
• Use with a Viking C-2000B to control 1 to 4 E-60's and door/gate
control on a single phone line
• Provide unique front and back door chimes and paging when used
with a Viking SLP-1, SLP-4 and C-2000B
• Residential, commercial and industrial door security
• Use with a Viking K-1900-5 or K-1900-30 for automatic speed
dialing on telephone lines or analog PABX/KSU station ports
• Use on any analog PABX station port with programmable ringdown
capability
S p e c
S p e c
Power: Telephone line powered. Minimum 18V DC talk battery voltage with a minimum
loop current of 20mA. Loop current may be boosted on low current lines with a Viking
model TBB-1B Talk Battery Booster (see DOD# 632).
Dimensions: Faceplate: 123.8mm x 125.4mm x 4.3mm (4.875" x 4.938" x 0.17"), Phone:
72mm x 46mm x 42mm (2.84" x 1.8" x 1.65")
Shipping Weight: 0.55 kg (1.2 lbs)
Operating Temperature: -34° C to 65° C (-30° F to 150° F)
Humidity: Standard model: 5% to 95% non-condensing humidity, EWP model: up to
100% humidity
Speaker Volume: Approximately 62db maximum @ 1m
Ring Voltage: 25V AC RMS minimum (for auto answer)
CPC Disconnect Time: 300ms minimum
REN: 0.8A
Connections: (2) gel-filled butt connectors
E-60 Series
E-60 Series
Double Gang Entry
t i c e
t i c e
Phones with LED
November 27, 2013
E N T U R Y
E N T U R Y
E-60-WH
"Satin White"
(satin white powder paint)
i c a t i o n s
i c a t i o n s
i f i c a t i o n s
i f i c a t i o n s
E-60-BK
"Satin Black"
(fine texture satin black
powder paint)
