Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Built-In Analog Color Video Camera
The E-35-IP VoIP Entry Phone is designed to provide quick
and reliable handsfree communication for SIP VoIP phone
systems with PoE. The E-35-IP Entry Phone can be pro-
grammed from any Touch Tone phone or PC on the same
LAN. The Entry phone can dial up to 5 programmable num-
bers and provide color analog CCTV video of who is at your
door or gate.
The E-35-IP Entry Phone will flash the "Call" LED during di-
aling and automatically light the LED when the call is an-
swered. All programming parameters, including phone
numbers and location numbers, are stored in non-volatile
memory, requiring no batteries. The unit is PoE powered.
For outdoor installations where the unit is exposed to precipitation or condensation, the E-35-IP Entry Phones are available
with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel-
filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD# 859.
Installation requires the assistance of a Network Administrator / IT Technician.
!
Features
• Built-In high resolution analog NTSC color video camera with wide viewing angle,
tilt/swivel adjustments and wide operating temperature
• Self diagnostic reports via email (testing com, mic, speaker & switch)
• Automatic polling and programming software included
• 2 Amp relay contacts for door/gate or SL-2 strobe light control
• Blue "Call" LED indicator
• SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environ-
ments
• VoIP eliminates the need for "Push to Talk" mode
• Network downloadable firmware
• T-10 Torx security screws for added security
• Handsfree operation
• Marine grade 316 stainless steel prevents corrosion
• Laser Etched graphics on stainless steel models
• Programmable to dial up to 5 numbers on busy or ring no answer
• Cycles through backup phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet
IP66 Ingress Protection Rating, see DOD# 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-40°F to 140°F)
• Replacement board available
• Volume adjustments for microphone and speaker
• E-35-IP is flush mountable using the included rough-in box or can be surface mounted
using an optional VE-5x5 Surface Mount Box (DOD# 424)
• Optional PB-100 Polling System available (DOD# 232)
• Optional SL-2 or BLK-4-EWP strobe light kit available (DOD# 242/653)
PRODUCT MANUAL
VoIP Entry Phones with
Standard
Flush Mount
Applications
• Gate Entrance
• Parking ramps/lots
• ATM machines
• Medical centers
• Lobbies
www.vikingelectronics.com
Information: (715) 386-8861
Specifications
Power: PoE class 1 (<4 watts)
Dimensions: Overall-127mm x 127mm x 57mm (5" x 5" x 2.25"),
Plastic Electrical Box-102mm x 102mm x 54mm (4" x 4" x 2.12")
Shipping Weight: 0.9 Kg (2 lbs)
Operating Temperature: -40° C to 60° C (-40°F to 140°F)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,
100BASE-TX with auto cross over
Connections: (1) RJ45 10/100 Base-T, (6) gel-filled butt connec-
tors (3M Scotchlok UR2)
(See page 3 for camera specifications)
E-35-IP/EWP
VoIP Entry Phones with
Analog Color Video Camera
September 21, 2015

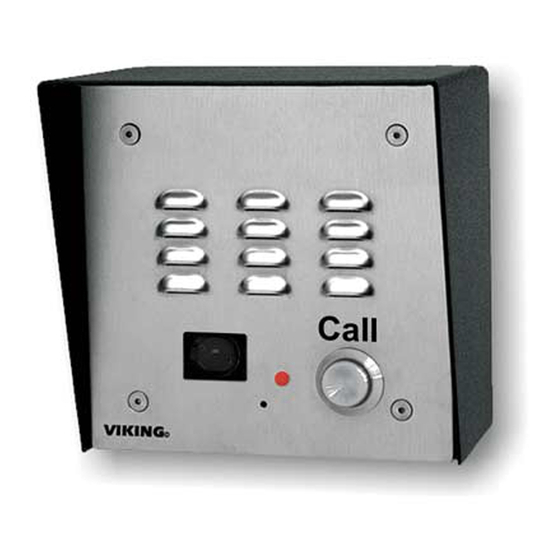

Shown in Optional
VE-5x5 Surface Mount Box
• Entryways
• Stadiums
• Convention centers
• Public access areas
Advertisement
Table of Contents
Related Manuals for Viking E-35-IP
Summary of Contents for Viking E-35-IP
- Page 1 The unit is PoE powered. For outdoor installations where the unit is exposed to precipitation or condensation, the E-35-IP Entry Phones are available with Enhanced Weather Protection (EWP). EWP products feature foam rubber gaskets and boots, sealed connections, gel- filled butt connectors, as well as urethane or thermal plastic potted circuit boards.
- Page 2 Viking VoIP SIP System Compatibility List NOTE: Exclusion from this list means only that compatibility has not been verified, it does not mean incompatibility. For detailed configuration instructions for certain vendors below, see Configuring Viking VoIP Phone and SIP Servers, DOD# 944. Infrastructure Class...
-
Page 3: Camera Specifications
The standard camera is NOT compatible with IR illumina- tors. If IR illumination is required, you will need to replace the existing camera with a Viking model VCAM-1IR. For more information, see DOD# 190. -
Page 4: Features Overview
Features Overview Front View of the E-35-IP Entry Phone Mounting Screws: (4) 6-32 X 3/4” Marine grade 316 stainless steel, flat head, T-10 Torx security Microphone: Omni-directional screws and drive bit (included) microphone with protective water-resistant cloth. Faceplate: 14 gauge Marine grade... -
Page 5: Installation
A. Mounting the E-35-IP The E-35-IP is designed to be flush mounted to the included 4” x 4” x 2” deep plastic rough in box or surface mounted using an optional Viking model VE-5x5. Important: The E-35-IP will NOT mount to a standard double gang box. The plastic rough in box (part # 259576) may be purchased separately. - Page 6 B. Replacement IP Board Kit (Model E-1600-53A-IP) This is a board (PCB) only kit, no chassis is included. This kit can be used to convert any Viking E-35 analog phone to a VoIP version. The kit can also be used to replace a damaged IP board in the field. This kit comes in standard and EWP version.
- Page 7 *** Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield. *** Note: For ease of installation, a Viking Female "F" to Wire Converter Cable can be used (Part # 261217) or "BNC" to wire converter cable (Part # U213510) can be used.
- Page 8 • IBM compatible personal computer with: • Adobe Acrobat Reader 8 or higher Windows 2000 (service pack 4 or higher) • E-35-IP hardware Windows XP (service pack 2 or higher) • Available LAN with PoE (class 1, <4 watts) Windows Vista (SP2 or newer), 32 or 64 bit versions •...
- Page 9 The PC must be connected to the same LAN as the E-35-IP VoIP phone. Install the application on your PC by placing the DVD into your PC’s drive. Click “I Accept” on the bottom of the first screen, then select “Viking VoIP Phone Programming”...
- Page 10 Step 1. From a touch tone phone call the E-35-IP phone you would like to program. When the E-35-IP phone answers, enter the 6-digit security code (factory set to 845464, see section B). A double Step 2. beep should then be heard indicating you have entered the programming mode.
- Page 11 Quick Programming Features (after accessing the Touch Tone Programming Mode) MEMORY DESCRIPTION DIGITS LOCATION First speed dial number 0-32 digits Second speed dial number 0-32 digits Third speed dial number 0-32 digits Fourth speed dial number 0-32 digits Fifth speed dial number 0-32 digits To clear any speed dial number (no digits)
-
Page 12: Programming Features
0 in this location to disable the call length time out. With the call length disabled, the 1 min E-35-IP phone must rely on a CPC signal, busy signal, silence or return to dial tone to 2 min hang-up. Use chart at the right. - Page 13 “Q”, “#” or match the number used for the security code. To disable the Access Code enter no digits then #21 in programming. Simply call the E-35-IP phone, the unit will automatically answer the line and output two beeps.
- Page 14 6 = Loud Ring Flash Mode. When programmed for Loud Ring Flash Mode the relay will momentarily turn on and off in a 400ms on/off cadence while the ringing extension is called. This mode is useful for activating a Viking LPL-1 Remote Visual Indicator, etc.
- Page 15 17. “Call” LED Control (#30) The call LED on the E-35-IP phone can be programmed to: 0 = LED will automatically light when the distant party has answered, this is the factory default setting. 1 = LED will light steady, only after a Touch Tone Q is entered from the called party.
-
Page 16: Operation
You may silence the error beeps, per instance, by pressing and holding the CALL button for 5 seconds or by clicking the “Mute Alarm Until Next Failure” button in the Viking VoIP Programming Software (see section A on page 9). The error beeps... -
Page 17: Related Products
The VE-3x5, VE-5x5, VE-6x7 and VE-5x10 add vandal and weather resistance, as well as ver- satility to many Viking products. The VE-Series backboxes are available in black fine texture pow- der painted steel or Marine Grade 316 stainless steel. The weather resistant boxes are designed to be surface mounted to a wall, post, single gang box, or a VE-GNP gooseneck pedestal. -
Page 18: Warranty
TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
