MAIN INDIPENDENT CONTROLS

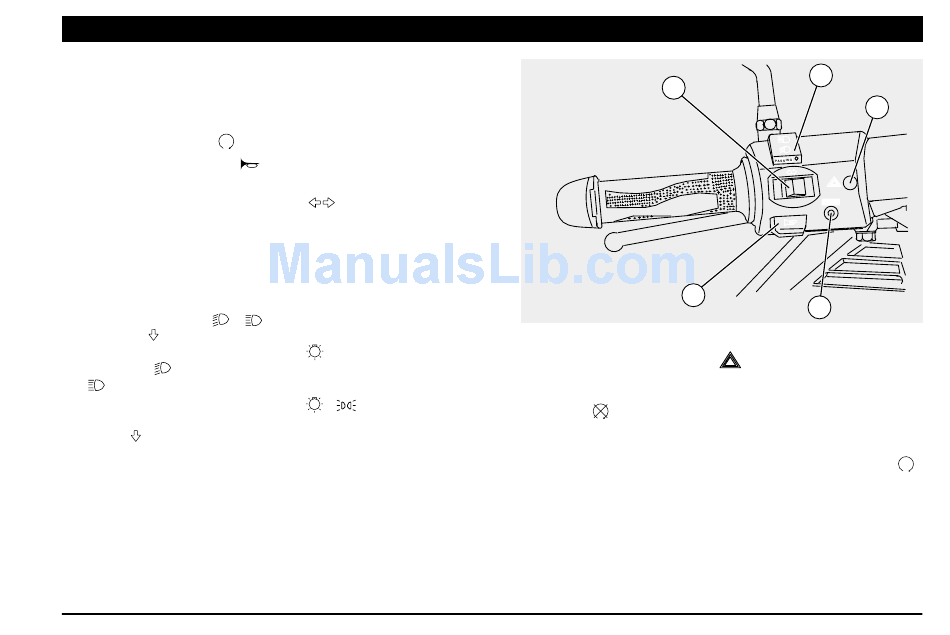

CONTROLS ON THE LEFT SIDE OF THE HANDLEBAR
IMPORTANT
The electric components work only when the igni-
tion switch is in position "
".
1) HORN PUSH-BUTTON (
When it is pressed, the horn is operated.
2) DIRECTION INDICATOR SWITCH (
Move the switch to the left in order to indicate the turn to the left;
move the switch to the right in order to indicate the turn to the
right. Press the switch on its centre to turn off the direction indi-
cator. With moving vehicle, the automatic return system is trig-
gered and turns off the direction indicator after 40 seconds or
500 m.
3) DIMMER SWITCH (
-
(PASSING )
When the light switch is in position "
in position "
", the low beam comes on, while if it is in position
"
", the high beam comes on.
Regardless of the light switch position (
signaller is operated by pressing the dimmer switch to position
"PASSING ".
IMPORTANT
When releasing the dimmer switch, the high beam
signaller is deactivated.
4) MODE PUSH-BUTTON
Press it more than once to select the data shown on the
multifunction LCD display.
)
)
) / HIGH BEAM PUSH-BUTTON
": if the dimmer switch is
-
- •), the high beam
2
1
5) HAZARD PUSH-BUTTON (
ACTIVATION Press the push-button to activate the four direc-
tion indicators; now it is possible to turn the ignition switch to
position
and extract the key.
DEACTIVATION
Insert the key into the ignition switch and turn it to position "
press the HAZARD push-button again to deactivate the system.
