REMOTE MONITORING OPTIONS FOR ABB DRIVES

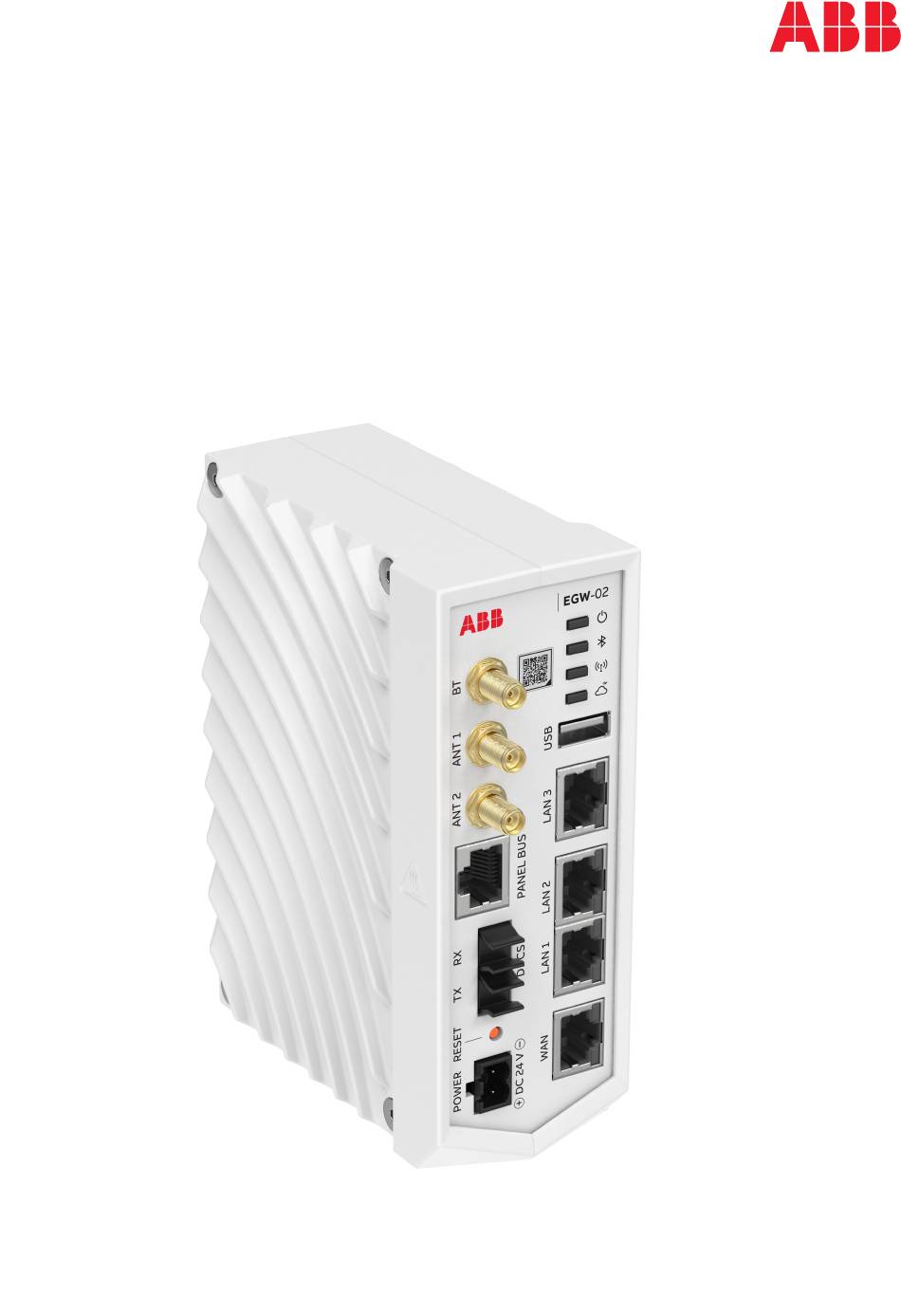

EGW-02 Connectivity Edge Gateway
User's manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the EGW-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for ABB EGW-02

  • Page 1 — REMOTE MONITORING OPTIONS FOR ABB DRIVES EGW-02 Connectivity Edge Gateway User's manual...
  • Page 3 EGW-02 Connectivity Edge Gateway User's manual Table of contents 3. Mechanical installation 4. Electrical installation 3AXD50000929719 Rev B Original instructions EFFECTIVE: 2024-10-23...
  • Page 5 Contents of this chapter ............... . EGW-02 gateway and ABB Ability™ Condition Monitoring for drives (CMD) ..
  • Page 6 Assigning users to a device in ABB DMS ....... . .
  • Page 7 Table of contents 7 Supported cellular bands ............... LTE antenna specification .
  • Page 9 Contents of this chapter This chapter introduces this manual. Applicability This manual applies to the EGW-02 Connectivity Edge Gateway. In this document, we refer to it as the EGW-02 gateway or gateway. Safety WARNING Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur.
  • Page 10 CIAM Customer Identity and Access Management. Another name for DMS. ABB Ability™ Condition Monitoring for drives. CMD is a cloud service for remote storing, monitoring, and the analysis of drive data. It is also a part of the Di- gital Powertrain offering.
  • Page 11 ABB and its affiliates are not liable for damages and/or losses related to such security breaches, any unauthorized access, interference, intrusion, leakage and/or theft of...
  • Page 13 EGW-02 gateway. The customer can order the EGW-02 gateway as a factory-installed option for a new drive. The ABB factory installs the EGW-02 gateway into the drive and associates the EGW-02 gateway with the customer CMD service and account.
  • Page 14 Power supply Firewall 1) Notes: • Use a direct PC connection (to the LAN 3 connector) to access the local user interface of the EGW-02 gateway. • To use Drive Composer, connect the PC directly to a drive control unit.
  • Page 15 Product overview 15 EGW-02 gateway layout Description Label LTE MIMO antenna connectors for the mobile Internet connec- ANT 1, ANT 2 tion: a) primary antenna connector b) RX diversity antenna connector Bluetooth antenna connector. (Currently not in use.) RS-485 connector for the panel bus. (Currently not in use.)
  • Page 16 16 Product overview Type designation label This is an example of a type designation label for an EGW-02 gateway. The type designation label is located at the bottom of the EGW-02 gateway case. EGW-02 INPUT / ENTRADA: 19–32 V 600 mA...
  • Page 17 Contents of this chapter This chapter contains unpacking and mechanical installation instructions for the EGW-02 gateway and the guidelines to install the antennas. Tools and accessories You can attach the gateway to a 35 × 7.5/15 mm DIN installation rail (IEC/EN 60715) without tools.
  • Page 18 • The product package does not show signs of damage. • The antitamper sticker on the top of the EGW-02 gateway and the type designation label on the bottom do not have signs of tampering. • The EGW-02 gateway does not have signs of damage.
  • Page 19 Installing the gateway to an installation rail If the installation rail is not installed, install it. To attach the EGW-02 gateway to the rail, put it into position at the bottom edge of the installation rail and push to lock it fully into position.
  • Page 20 20 Mechanical installation High signal strength facing. Point this side of the antenna towards the nearest cellular tower. Low signal strength facings.
  • Page 21 Electrical installation 21 Electrical installation Contents of this chapter This chapter shows how to connect the EGW-02 gateway to an ABB drive. Safety WARNING Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
  • Page 22 Cable specification (page 59). Use the LAN 1 and/or LAN 2 connector of the EGW-02 gateway. Use a daisy chain or star connection. For the star connection, use an Ethernet switch as the central node. The diagrams show example connections to drive control units. Some control units have an embedded Ethernet connection and others require an additional Ethernet adapter.
  • Page 23 Use a cable that complies with the Cable specification (page 59). Connect the fiber-optic cables to the DDCS connector of the EGW-02 gateway. The diagram shows an example connection of drives with RDCU control units and RDCO adapter modules. RDCU...
  • Page 24 • Wired Ethernet takes priority over wireless mobile network connection. • When an Ethernet cable is connected to the EGW-02 gateway, even if this wired connection is not set up correctly, the mobile network connection is disabled. • To use a mobile network connection, you must disconnect the Ethernet (WAN) cable from the EGW-02 gateway.
  • Page 25 Connect the recommended antenna to the ANT 1 and ANT 2 connectors on the EGW-02 gateway. Use a torque of 0.5 N·m (4.5 lbf·in). If you use a non-MIMO antenna, connect it to the ANT 1 connector on the EGW-02 gateway.
  • Page 26 26 Electrical installation Network connection example For more information, refer to EGW-02 Connectivity Edge Gateway cyber security guide (3AXD50001061845 [English]). . 5 ÿ 1 1 4 ÿ @ 3 9 D 4  E 1 5 B4   1 ÿ1 4   2 1 . /   1 1 4...
  • Page 27 If it is necessary, select the organization and the suborganization. Click Register connectivity device. Enter the serial number and the PIN code of the EGW-02 gateway. Read the serial number and the PIN code from the type designation label at the bottom of the...
  • Page 28 28 Registration and start-up Click Validate. ABB DMS verifies the entered serial number against the Connectivity Device Registry (CDR) database: • For a correct serial number, DMS shows a green checkmark and gives a "Serial number validated" message. • If the serial number is not found in the registry, DMS shows a red checkmark and gives a "Serial number not found"...
  • Page 29 Registration and start-up 29 The EGW-02 gateway is now added to the list of connectivity devices in the ABB DMS portal. Note: For information on other DMS functions, refer to ABB DMS operations (page 52). Assigning users to a device in ABB DMS ■...
  • Page 30 ABB Device Management Service (DMS). If the Cloud connection LED is red, a connection is not available. If the EGW-02 gateway is in a cabinet, the Cloud connection LED may not be visible. In this case, log into the local user interface to examine drive connectivity.
  • Page 31 Configuration and use 31 Configuration and use Contents of this chapter This chapter shows you how to log into and use the local user interface of the EGW-02 gateway. Device management and firmware updates You can set up the EGW-02 gateway in the ABB Device Management Service (DMS)
  • Page 32 IP address and make sure that it is in the same subnetwork as the EGW-02 gateway. • If the current IP address of the EGW-02 gateway is not known, you can reset it to the default value: Refer to System recovery (page 51).
  • Page 33 Getting an access token from DMS (page 32). Connect a PC directly over Ethernet to the LAN 3 connector on the EGW-02 gateway. Use a web browser to access the local user interface. The default address for the local user interface is https://192.168.1.1.
  • Page 34 34 Configuration and use Home page The Home page gives information on the EGW-02 and its active settings. The data is view only, you cannot adjust the settings on this page. The page has these sections: 1. Navigation bar: 4. Proxy settings (http/https): •...
  • Page 35 EGW-02 gateway). You can set the start IP address, subnet mask, and default network gateway (use 0.0.0.0 if no other is defined). Note: The start IP address is the address of the EGW-02 gateway and its local user interface. The subsequent IP addresses are set for the clients (drives)
  • Page 36 36 Configuration and use that connect to the EGW-02 gateway according to the CIDR subnetwork definition. • Manual: Set the IP address, subnet mask, and the default network gateway. Click Submit. To examine the connection between two nodes, select Ping server.
  • Page 37 Select Automatic DHCP or Manual: • Automatic (DHCP): The DHCP server is set up in the customer network environment and the EGW-02 gateway gets the IP address from the server. • Manual: Set the IP address, subnet mask, default gateway, and preferred DNS server.
  • Page 38 38 Configuration and use To examine the connection to the Internet, select Ping server. Enter an internet address. Make sure that the domain accepts ping requests. Click Ping. It shows on the window if the connection is successful or not. Proxy configuration ■...
  • Page 39 Configuration and use 39 Select the proxy: HTTP or HTTPS. Enter the address. Enter the port number. Select the proxy authentication: • Authenticated: Enter a username and password. • Not authenticated: No username or password is needed. Click Submit. To clear the proxy settings, select Unset HTTPS proxy.
  • Page 40 SSH key configuration On the SSH keys configuration page, you can add SSH keys. NOTICE This action requires Authorized person (ABB personnel) priviledges in the ABB Device Management System (DMS). To make and use an SSH key: Go to Configuration > SSH keys.
  • Page 41 Configuration and use 41 Generate a new SSH key pair (private key for SSH client and public key for EGW-02). To generate an SSH key pair on your PC, you can use a tool such as PuTTYgen. Copy the generated key into the Public key field.
  • Page 42 42 Configuration and use Configuration for secure drive communication over Ethernet Secure drive communication over Ethernet is possible between the EGW-02 gateway and a suitable fieldbus adapter module. The supported fieldbus adapter modules: • FEIP-21 • FPNO-21 • FMBT-21 To configure secure drive communication: Create the HTTPS certificates.
  • Page 43 Configuration and use 43 Enter the password for the certificate file. Click Add certificate. Note: After the certificates are added and other drive communication settings are done, open the Drives page in the local user interface to make sure that the drive connections are secure.
  • Page 44 44 Configuration and use Device interface configuration On the Device interface configuration page, you can set up device interfaces for a DDCS through a fiber-optic connection or Ethernet connection. DDCS ■ Note: Make sure that the DDCS settings agree with the settings of the drive. To adjust the DDCS settings: Go to Device Interface >...
  • Page 45 Configuration and use 45 Select the way to filter the drives you want to discover: • Range: Set the start IP address and end IP address. The gateway only finds drives in this range. • Set: Add up to 10 individual IP addresses. Select Submit once you have added the IP addresses.
  • Page 46 46 Configuration and use If you do not select a filter, the EGW-02 gateway finds the drives that are in the same network. NOTICE Do a soft reset of the EGW-02 every time that you connect a new drive. Refer...
  • Page 47 Configuration and use 47 Drives page The Drives page has a list of the drives that are connected to the EGW-02 gateway. The icon in the Secure Connection column shows connection security information: • Green locked icon: Connection is secure. (HTTPS/TLS connected and valid certificates in use.)
  • Page 48 Filter the drive control units that you want to discover with this EGW-02 gateway. Refer to Device interface configuration (page 44). Set the IP address of the EGW-02 gateway. Each gateway must have a unique IP address. Refer to Network configuration (page 35).
  • Page 49 Maintenance and troubleshooting 49 Maintenance and troubleshooting Contents of this chapter This chapter contains descriptions of the status LEDs of the EGW-02 gateway, and the related diagnostics and troubleshooting instructions. Ethernet connector LEDs LEDs Description (color) Status Data transfer speed (green)
  • Page 50 50 Maintenance and troubleshooting LEDs on the front panel There are four LEDs in the top right corner of the front panel of the EGW-02 gateway. LEDs Symbol Description (color) Status Power (red/green) Off: No power Red on: Error Green flashing: Start-up...
  • Page 51 There is no backup for the configurations so they cannot be restored after the factory reset. If you want to restore the values, record them before the reset. To reset the EGW-02 gateway, push the reset button with a thin object. Do not use a sharp point. •...
  • Page 52 EGW-02 gateway in ABB DMS. After registration, you can monitor the EGW-02 gateway in ABB DMS. To do this, Log into the CIAM/DMS portal at https://accessmanagement.motion.abb.com. Select the Connectivity Devices page to see your registered connectivity devices.
  • Page 53 ■ Note: Only authorized persons can do a device restart. To do a check for a new firmware version for the EGW-02 gateway, click Check for updates in the Device details subtab in the Advanced details tab. If a new firmware version for the device is available, click Update Now to do the update.
  • Page 54 To request a troubleshooting package: Select the Connectivity Devices page in ABB DMS. Click the arrowhead at the right of a device line to open the Device details for the applicable device.
  • Page 55 Maintenance and troubleshooting 55 Device logs ■ The Logs tab in Device details collects device event log entries and the list of generated troubleshooting packages. Events are, for example, security logs, user actions, and system errors. The list of events can help in troubleshooting. You can also filter the list of events to find specific entries.
  • Page 57 Technical data Contents of this chapter This chapter contains the technical data for the EGW-02 gateway. Dimension drawings 50 [1.97] 122.6 [4.83] 105.3 [4.15] 109.1 [4.30] The dimensions are in millimeters and [inches]. The EGW-02 gateway weighs 800 g (1.76 lb).
  • Page 58 Power consumption 15 W (maximum) Reverse voltage protec- Input protected against 28 V DC reverse voltage. tion Wired connectivity features and intended usage Label on EGW-02 front panel Connection Description Panel bus Single RJ45 Panel bus connection port (RS-485) LAN 1...
  • Page 59 LTE cellular modem Cloud connection Outbound connection to the cloud Bluetooth 5 Connect to sensors Local short-range connection for sensors, for example, ABB Abil- ity™ Smart Sensor Supported cellular bands Region Technology Supported bands B2, B4, B5, B7, B12, B13, B20, B25, B26,...
  • Page 60 60 Technical data Bluetooth antenna specification Frequency range 2400…2483.5 MHz Nominal impedance 50 ohm Antenna cable 50 ohm, low-loss coaxial cable 0.5…20.0 m (1…65 ft) with SMA male connector Antenna type Manufacturer: 2J Antennas Model: 2J6702B Band: 2.4 GHz Installation kit ordering code: 3AXD50001082802 Interfaces Function Specifications...
  • Page 61 The full text of the EU Declaration of Conformity is available on the Internet: https://library.abb.com/d/3AXD10001893055 UK Declaration of Conformity ■ ABB hereby declares that the radio equipment type EGW-02 complies with Radio Equipment Regulations 2017 No. 1206. The full text of the UK Declaration of Conformity is available on the Internet: https://library.abb.com/d/3AXD10001924244 Federal Communications Commission Notice (FCC –...
  • Page 62 62 Technical data This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
  • Page 63 2300…2400 30.6 1) Japan requirement: Use the 2J6983Ba antenna with a 300 cm fixed cable and a 400 cm ABB extension cable 3AXD50001106232 to make sure that the antenna gain is less than 3 dBi for all frequency bands. Technology...
  • Page 64 2496…2690 25.0 1) Japan requirement: Use the 2J6983Ba antenna with a 300 cm fixed cable and a 400 cm ABB extension cable 3AXD50001106232 to make sure that the antenna gain is less than 3 dBi for all frequency bands. Technology...
  • Page 65 Product and service inquiries Address any inquiries about the product to your local ABB representative, quoting the type designation and serial number of the unit in question. A listing of ABB sales, support and service contacts can be found by navigating to www.abb.com/contact-centers.
  • Page 66 3AXD50000929719B © Copyright 2024 ABB. All rights reserved. Specifications subject to change without notice.
