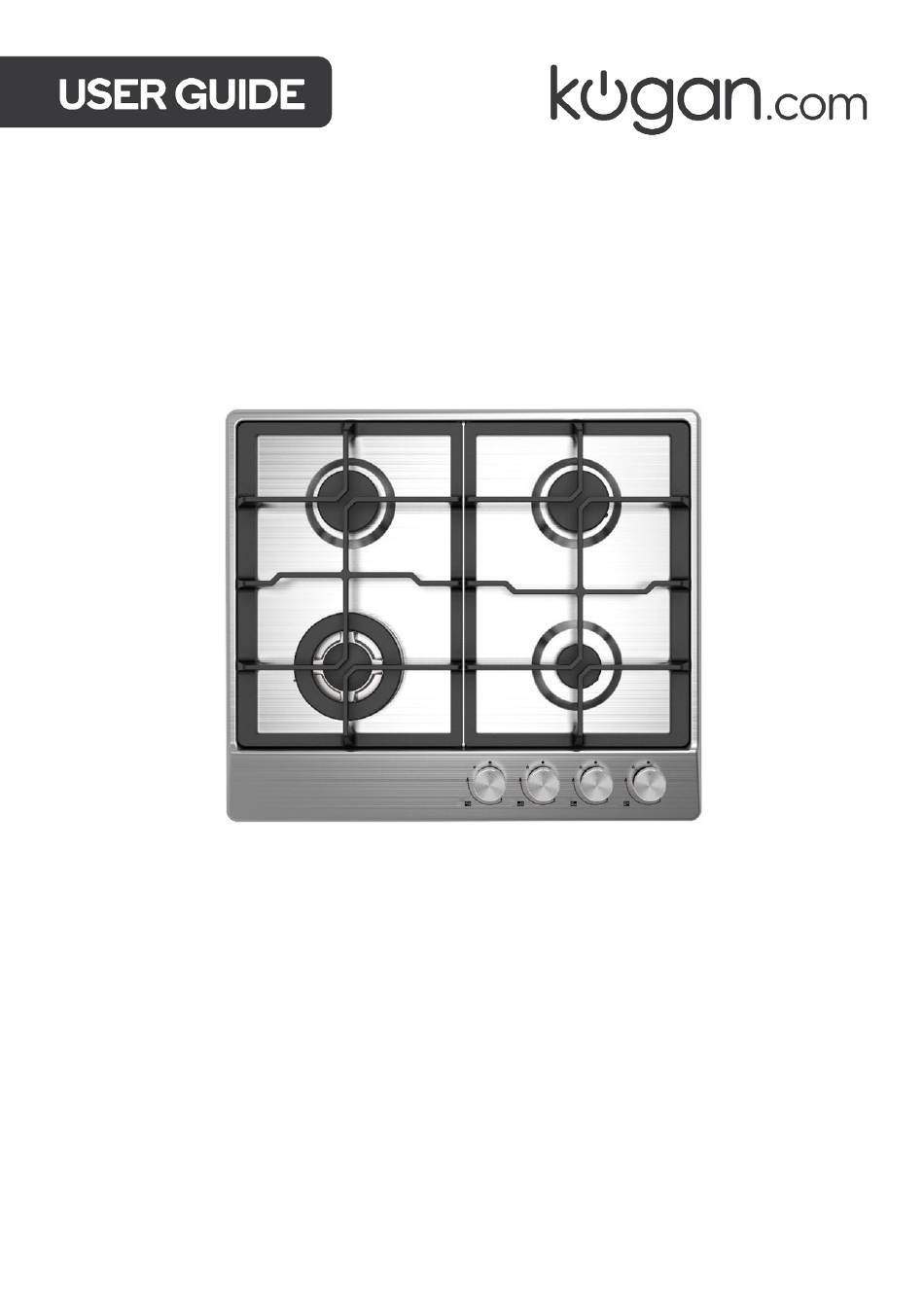

- Page 1 GAS COOKTOP 60CM KAMCTGASSSA & KAMCTGASBLA...
- Page 2 Safety & Warnings Components Installation Operation Cleaning & Care Specifications Troubleshooting...
- Page 3 • Children must not play with the appliance. • Cleaning and user maintenance must not be made by children without supervision. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. Do not attempt to repair or replace the power cord yourself.
- Page 4 • The adjustment conditions for this appliance are stated on the label or data plate. • Remove all packaging before using the appliance. • After unpacking the appliance, make sure the product is not damaged and that the power cord is in perfect condition. Otherwise, contact help.Kogan.com before installing the appliance.
- Page 5 • The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85°C above the ambient temperature of the room it is in, whilst in use. • In the event of burner flames being accidentally extinguished, turn off the burner and do not attempt to re-ignite the burner for at least one minute.
- Page 6 During Use • Do not use or store flammable materials in the storage drawer near this appliance. • Perishable food, plastic items and aerosols may be affected by heat and should not be stored above or below the appliance. • Do not spray aerosols in the vicinity of this appliance while it is in operation. •...
- Page 7 • A gas pipe or connector shouldn’t be bent or blocked by any other appliances. • Check the dimensions of the appliance as well as the dimensions of the gap to be cut in the kitchen unit. • The panels located above the work surface and directly next to the appliance must be made of non-flammable material.
- Page 8 Cleaning and Maintenance Warning: • Never use abrasive or caustic cleaning agents. • This appliance should only be repaired or serviced by Kogan.com. If the appliance is damaged, cease use and contact help.Kogan.com for support. Caution: • Before attempting to clean the appliance, disconnect the power plug and allow the appliance to cool.
- Page 9 COMPONENTS Bracket (x4) Sealing Strip (x4) Screw (x4) Injector (x4) Pressure Joint Gas Regulator Valve Elbow Auxiliary Pan Support User Guide...
- Page 10 400mm, then it must be at least 50mm away from the outer edges of the cooktop. • Maintain 50mm clearance around the appliance and between the cooktop surface and any combustible materials. 650mm 400mm 400mm Model KAMCTGASSSA KAMCTGASBLA...
- Page 11 • There must be a gap of at least 25mm and at most 74mm between the underneath of the appliance and any surface that is below it. 45mm 25mm (min) • An oven must have forced ventilation to install a cooktop above it. •...
- Page 12 Place the bracket (A) over the holes that match the size of the screws. There is one set of screw holes in each corner of the cooktop. Slightly tighten a screw (B) through the bracket (A) so that the corner bracket is attached to the cooktop, but so that you can still adjust the position.
- Page 13 Gas Connection • This appliance must be installed and connected in accordance with installation regulations in force in the country in which the appliance is to be used. • This appliance is supplied to run on LPG and natural gas. Conversion for use on LPG and natural gases must only be undertaken by a qualified person.
- Page 14 Adjusting the Direction of the Elbow After loosening the elbow, adjust the elbow interface to the required direction as required and keep the hexagonal head of the elbow motionless with a wrench. Use a 9±1N.m torque wrench to tighten the black bolt of the gas inlet pipe assembly.
- Page 15 Required Tools Item How to use Use for assembly and disassembly of Screwdriver all screws. Tubing Use for assembly and disassembly of Wrench tubing to the burner cup. 7mm Injector Use for assembly and disassembly of Nozzle Tool injector nozzles� . Torque Use for elbow installation and Wrench...
- Page 16 Replacement of Gas-type Fitting Disassemble the gas-type fittings from the main gas tube using a spanner. When disassembling or assembling the gas connection, use two spanners: one to secure the gas connection elbow and the other to tighten the gas hose. Tightly lock a replaceable gas-type fitting onto the main gas tube.
- Page 17 Statutory Requirements This installation must conform with the following: • Local Gas Fitting Regulations. • Municipal Building Codes. • Refer to AS/NZS 5601.1 for Gas Installations. • S.A.A. Wiring Code. • Local Electrical Regulations. • Any other statutory regulations. Preparing to Install •...
- Page 18 If the appliance fails to operate correctly after all checks have been carried out, cease use and contact help.Kogan.com for support. • Flexible Hose: If installing with a hose assembly, it must comply with AS/NZS 1869, 10mm ID, class B or D, no more than 1.2m long, and be installed in accordance with...
- Page 19 Gas Connection • Install in accordance with relevant gas standards and/or codes. Connect the elbow fitting to the appliance gas manifold connection and check that the seals between the elbow and manifold connection are in place and in good condition. •...
- Page 20 • The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter ‘E’ or by the grounding symbol. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support.
- Page 21 Gas Adjustment Caution: • Take precautions on the operations and adjustments to be carried out when converting from one gas to another. • All work must be carried out by a qualified technician. • Before you begin, turn off the gas and electricity supply to the appliance. Change the Injector of the Burners: 1.
- Page 22 Adjusting the Minimum Level of the Flame: Turn the taps down to the minimum. Remove the control knob from the tap and place a small, bladed screwdriver in the centre of the adjustment screw. The correct adjustment is obtained when the flame has a length of about 3-4 mm. For butane/ propane gas, the adjusting screw must be tightly screwed in.
- Page 23 OPERATION Warning • Fats and oil, when heated, can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them. • Very hot oil vapours can cause spontaneous combustion, monitor your food closely during cooking.
- Page 24 Igniting a Burner • Press and hold the control knob of the burner you wish to light and turn it anti-clockwise to the maximum position. • Keep the control knob held down for 15 seconds after the burner ignites. If the burner does not ignite after 15 seconds, stop operating the device, open the compartment door, and wait at least 1 minute before attempting to ignite the burner again.
- Page 25 Only use pots, Do not use a pan with a saucepans and frying convex or concave base. pans with a thick, flat base. Do not place cookware on one side of a burner, as it could tip over. Do not use cookware with a large diameter on the Always place the burners near the controls,...
- Page 26 CLEANING & CARE Caution • Cleaning must only be performed when the appliance is completely cool. • The appliance should be disconnected from the electrical outlet before commencing cleaning. • Clean the appliance regularly, preferably after each use. • Abrasive cleaners or sharp objects will damage the appliance surface. It is recommended to use water and mild detergent to clean the appliance.
- Page 27 Burners • Remove the burner lids and flame spreaders by pulling them upwards and away from the top plate. Soak them in hot water with a little detergent or washing-up liquid. • After cleaning, wipe and dry them carefully, ensuring that the flame holes are clean and completely dry.
- Page 28 Reassemble the Auxiliary, Semi-rapid, Rapid and Triple-Crown Burners Caution: • Replace parts in the correct order after cleaning. • Do not mix up the top and bottom. • The locating pins must fit exactly into the notches. Reassembly: Place the flame spreader (4) on to the burner cup (5) so that the ignition device and the flame supervision device extend through their respective holes in the flame spreader.
- Page 29 SPECIFICATIONS KAMCTGASSSA KAMCTGASBLA Top plate Stainless Steel Glass Dimensions (W x D x H) 590 x 510 x 100mm 600 x 510 x 110mm Ignition device Continuous ignition type Gas connection G 1/2 thread Electric supply 220-240V~ 50Hz-60Hz, 2W Burner feature Triple-Crown (1), Semi-rapid (2), Auxiliary (1) ∑QN...
- Page 30 • Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger. • If the power cord is damaged, cease use immediately and contact help.Kogan.com for support. • However, some minor problems can be resolved as follows. If these solutions are unsuccessful, contact help.Kogan.com for support.
- Page 31 The flame supervision device Clean the flame supervision is blocked by a foreign device. substance. The food being cooked has Turn off the control knob. Wait The flame goes boiled over and extinguished one minute and reignite. out when in use. the flame.
- Page 32 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
