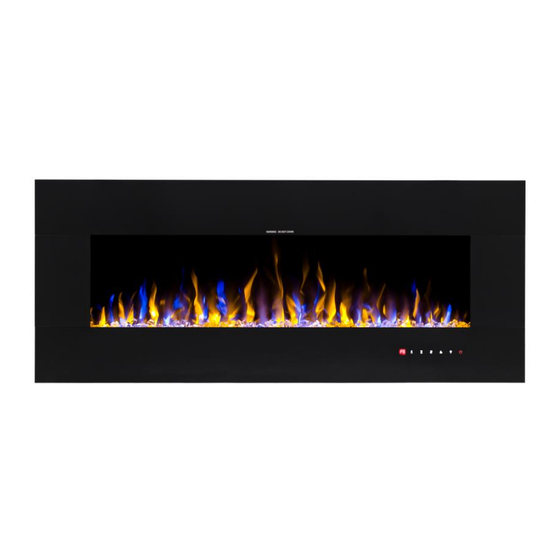

80-BEF-50B (BEF-50BI02)
OWNER'S MANUAL
50"/72" Wall Mounted / Built-in Electric Fireplace
AC 120V 60Hz 1500W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
Linear Electric Fireplace
80-BEF-72B (BEF-72BI02)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Northwest 80-BEF-50B
Summary of Contents for Northwest 80-BEF-50B
- Page 1 Wall Mounted & Wall Recessed Linear Electric Fireplace Model#: 80-BEF-50B (BEF-50BI02) 80-BEF-72B (BEF-72BI02) OWNER’S MANUAL 50"/72" Wall Mounted / Built-in Electric Fireplace AC 120V 60Hz 1500W Read and understand this entire owner’s manual, including all safety WARNING information, before plugging in or using this product. Failure to do so could result in fire, electric shock, or serious personal injury.
- Page 2 IMPORTANT SAFETY INFORMATION! WARNING Read all instructions before using this heater! This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
- Page 3 NEVER leave this heater unattended. ALWAYS unplug this heater when not in use. ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet. NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or connections. Plugging this heater into a faulty outlet could result in electric arcing within the outlet that could cause the outlet to overheat or catch fire.
- Page 4 B – Wood Screws C – Drywall anchors A – Fireplace D- Remote Control E - “L”Shape Bracket F- Metal Feet (x2) G-Decorative Crystals H-Decorative Pebbles Specification and Dimension Model Number 80-BEF-50B " " " [1270MM] 38-3/4 [984MM] 43-3/8 [1102MM] 80-BEF-72B "...
- Page 5 Installation and Assembly Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE: Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
- Page 6 NOTE: The wall mounting is fixed on the back of the appliance. (80-BEF-50B Illustrated) Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall.
- Page 7 H. With the mounting bracket installed, have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance (Fig. 1-5). I. Check the appliance for stability, ensuring that the bracket will not pull free from the wall. J.
- Page 8 C. Remove the front glass (see “front glass removal / installation” section). D. Hold the appliance up to ensure it will fit into the framing. Finishing Material Framing Hole Size Model No. 43-7/8 1114mm] 19" [483mm] 4" [102mm] 80-BEF-50B " [ 65-13/16 1672mm] 19" [483mm] 4" [102mm] " [ 80-BEF-72B...
- Page 9 Wall Recessed Installation A. Create an opening for the appliance (see “framing” section for details). B. Remove the front surround (see “front surround removal / installation” section). C. Remove the cord from the appliance (see “hard-wiring installation” section). D. Insert the appliance into the opening and complete hard wiring installation (see “hard-wiring installation”section). E.
- Page 10 Hard Wiring Installation WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. HARD WIRING CONNECTION If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring.
- Page 11 Front Glass Surround Removal / Installation FOR WALL MOUNT INSTALLATION： A. Take off the screws on both side.(Fig. 2-1 ) B. Carefully lift the front glass surround up and away from the appliance (Fig. 2-2 ). Place it face down on a soft, non-abrasive surface.
- Page 12 Sloped Clear Glass Removal / Installation WARNING • Glass may be hot. Do not touch glass until cooled. • If equipped with door latches that are part of a safety system, they must be properly engaged. Do not operate the appliance with latches disengaged. •...
- Page 13 Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
- Page 14 COLOR button: Makes the color flame effect 1. Press once. Flame color effect gets changing. changing. NOTE: color effect stays on until power button 2. Press again until desired setting is reached. is turned off. Color flame effect must be on for In total with 3 color flames.
- Page 15 Temperature Limiting Control This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the heater will automatically turn OFF. To reset: 1. Turn the ON/OFF switch on the CONTROL PANEL to OFF. 2. Unplug the power cord from the outlet. Wait 15 minutes. 3.
- Page 16 Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.
- Page 17 Customer Service Contact us through our website: www.TeamCustomerService.com If you have a question about assembly, use or a possible missing part, Please contact us and we will be glad to assist you.
