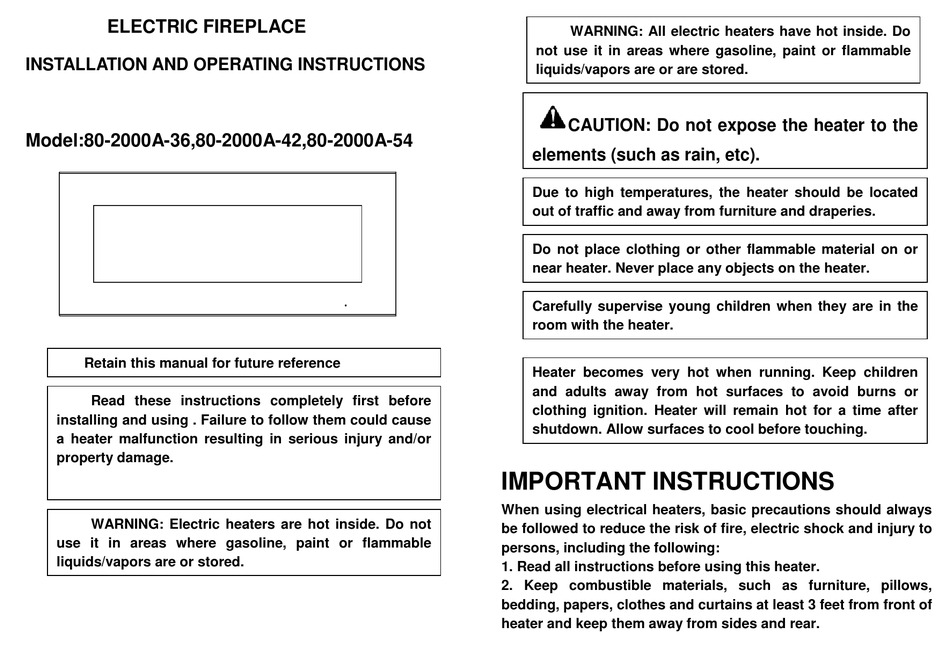

ELECTRIC FIREPLACE
INSTALLATION AND OPERATING INSTRUCTIONS

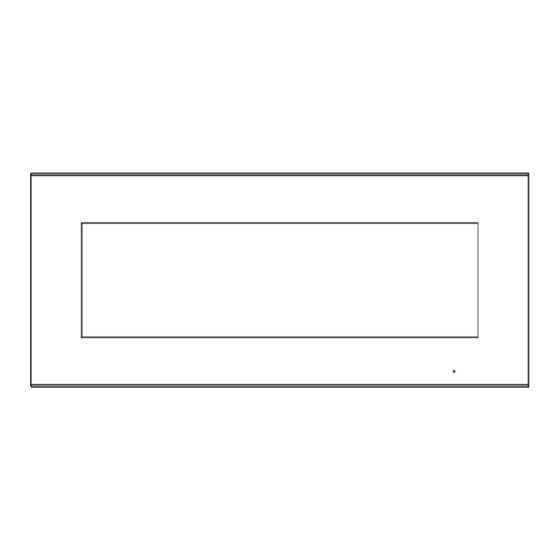

Model:80-2000A-36,80-2000A-42,80-2000A-54
Retain this manual for future reference
Read these instructions completely first before
installing and using . Failure to follow them could cause
a heater malfunction resulting in serious injury and/or
property damage.
WARNING: Electric heaters are hot inside. Do not
use it in areas where gasoline, paint or flammable
liquids/vapors are or stored.
WARNING: All electric heaters have hot inside. Do
not use it in areas where gasoline, paint or flammable
liquids/vapors are or are stored.
CAUTION: Do not expose the heater to the
elements (such as rain, etc).
CAUTION: The fireplace in
Due to high temperatures, the heater should be located
out of traffic and away from furniture and draperies.
Do not place clothing or other flammable material on or
near heater. Never place any objects on the heater.
Carefully supervise young children when they are in the
room with the heater.
Heater becomes very hot when running. Keep children
and adults away from hot surfaces to avoid burns or
clothing ignition. Heater will remain hot for a time after
shutdown. Allow surfaces to cool before touching.

IMPORTANT INSTRUCTIONS

When using electrical heaters, basic precautions should always
be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:
1. Read all instructions before using this heater.
2. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet from front of
heater and keep them away from sides and rear.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80-2000A-36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Northwest 80-2000A-36

  • Page 1: Important Instructions

    INSTALLATION AND OPERATING INSTRUCTIONS liquids/vapors are or are stored. CAUTION: Do not expose the heater to the Model:80-2000A-36,80-2000A-42,80-2000A-54 elements (such as rain, etc). CAUTION: The fireplace in Due to high temperatures, the heater should be located out of traffic and away from furniture and draperies.
  • Page 2: Technical Specification

    Description of product 11. Use this heater only as described in this manual. Any other use is not recommended by the manufacturer which may cause Model 80-2000A-36,80-2000A-42,80-2000A-54 fire, electric shock or injury to people and/or animals. Rated Voltage 120V~ 12. Always use properly grounded fused and polarized outlets.
  • Page 3: Parts And Hardware

    outlet. Check to see the unit turns on and produces function. Parts and hardware WARNING: Do not operate the unit if it is damaged or has Part Quantity malfunctioned. If you suspect the unit is damaged, please Remote Control contact customer service . The appliance is employed a manually reset thermal cut-out Manual for safeguard, if it operates, please inspect for any...
  • Page 4: Product Dimensions

    80-2000A-54 Product Dimensions Unit:mm 80-2000A-36 Before Assembly Before you assemble your fireplace, you should put the crystals on the ember. Please following below : 1) Put the fireplace on flat floor with the front glass panel on top position. 80-2000A-42 2) Use screwdriver(not supplied) to loosen the 7or 9 screws as Fig A, and remove the glass panel.
  • Page 5: Installation

    INSTALLATION 1.This heater is for wall mounting only. Do not attempt to use it free standing. 2.Referring to Fig. 3 below select a suitable position in which to mount the heater horizontally – use a spirit level to achieve this. 3.Check the wall to ensure there is no wiring, pipe wires etc in the area to be drilled.
  • Page 6: Operation

    OPERATION Plug the heater in to a suitable main outlet (see rating label on unit for power requirements). Remove all packaging before use. 1) “Power Switch ON/OFF” Set this switch to position “I“ to turn the product ON. Setting it to “O” to turn Control Panel (See also ‘Operating Instructions’...
  • Page 7 Operating by Remote Control 4. “ ”buttons is on/off button; to control the red and blue lamp of flame and ember bed. 5. The Red buttons control the red brightness of flame and ember bed. To increase the brightness, press and release the button.
  • Page 8 PROBLEM CAUSE CHECK  Stove has  Reset switch by Stove turns off and will not turn overheated and turning main power safety device has switch off and caused thermal waiting 5 minutes switch to then turning it back disconnect or home circuit “HEATER”...
