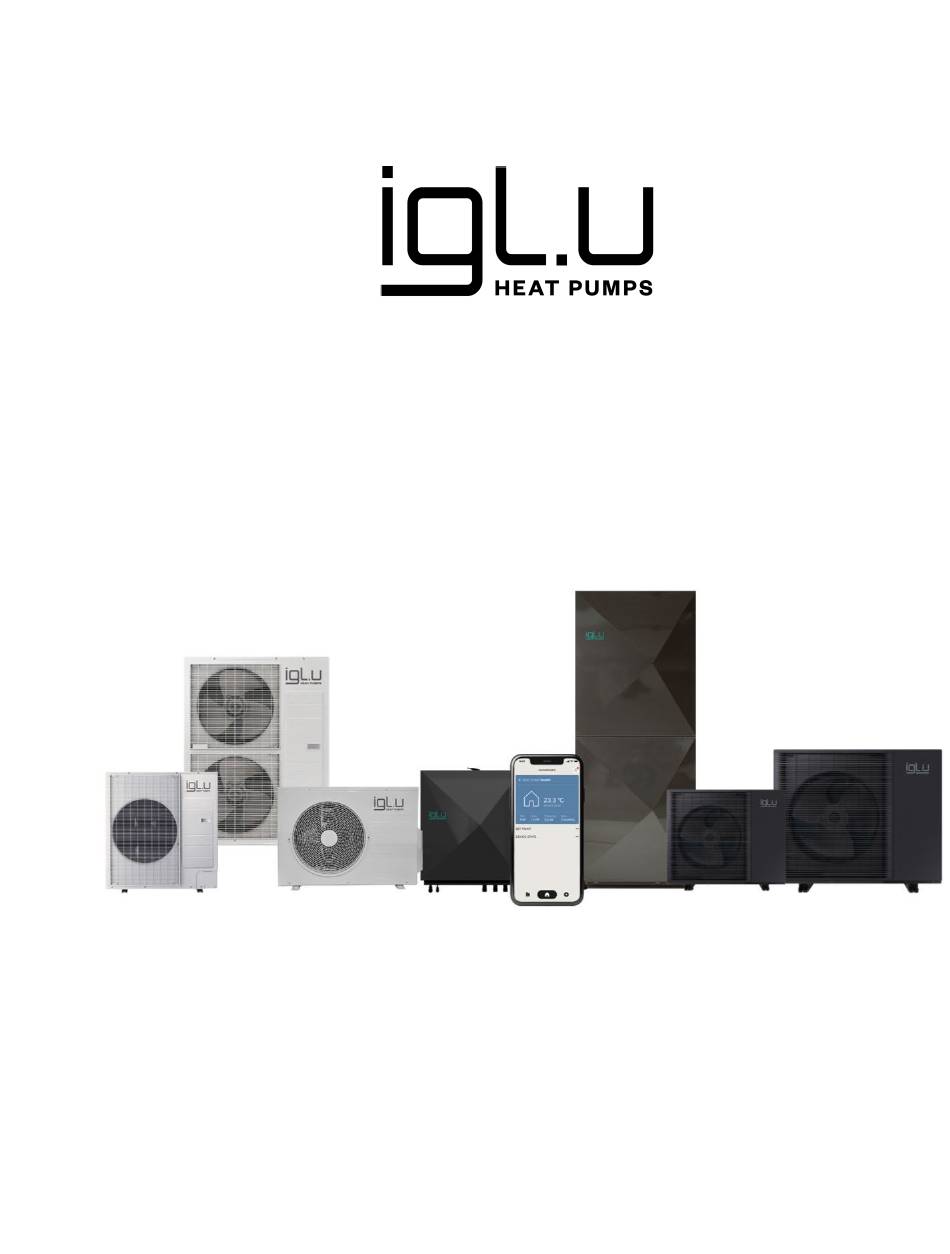

- Page 1 IGLU INUIT/INUIT MONO USER MANUAL VERSION 2.2 UAB IGLU TECH 2024 USER MANUAL AIR-TO-WATER HEAT PUMPS IGLU Inuit/ IGLU Inuit Mono...
- Page 2 PURPOSE ................................6 HOW DOES AIR-TO-WATER HEAT PUMP WORK? ..................6 PRODUCT PACKAGING AND TRANSPORTATION ..................7 LOGO ILLUMINATION ..........................7 IGLU HOME NEXT MOBILE APPLICATION ..................8 1.1. INSTALLATION OF THE APPLICATION ....................8 1.2. REGISTRATION AND LOG IN ....................... 9 1.3.
- Page 3 IGLU heat pumps are equipped with a convenient control system that allows to control the functions of the heat pump, select individual settings and help to quickly find and eliminate faults. The device can also be controlled via a mobile application.
- Page 4 Only a qualified person may transport, connect, activate and maintain the heat pump. SAFETY INSTRUCTIONS Storage conditions The device must be stored in a vertical position only, so that the compressor is always at the bottom. Installation and reconstruction Only a heating system maintenance company may be authorised to install or reconstruct the device. Customer recommendation Functional check.
- Page 5 For safety reasons, never open the device unless the device is disconnect from the power supply. ENVIRONMENTAL PROTECTION Environmental protection is a priority of IGLU TECH UAB. Product quality, cost-efficiency and environmental protection are equally important to us. Therefore, we strictly adhere to environmental requirements. In order to protect the environment and take into account financial possibilities, we use the best technologies and materials in our production.
- Page 6 IN CASE OF FAILURE If the illuminated IGLU logo on the front panel or the IGLU Home Next mobile application reports system errors, please contact us immediately and report any error by specifying: • Date of purchase of the device;...
- Page 7 The device can be stored at a temperature no lower than -10°C. LOGO ILLUMINATION The IGLU air – to - water heat pump has an illuminated IGLU logo on the front panel. The logo can be illuminated in three different colours –...
- Page 8 IGLU HOME NEXT MOBILE APPLICATION IGLU air - to - water heat pumps are controlled via the IGLU Home Next app. It allows to control the device and monitor the operating parameters of the heating system, electricity consumption, thermal energy produced and instantaneous or seasonal coefficient of performance in real time.
- Page 9 REGISTRATION AND LOG IN REGISTRATION When you open the IGLU Home Next app, for the first time you need to create an account by clicking “CREATE ACCOUNT” or just “LOGIN” button in case you have already an account (Window 1).
- Page 10 (Window 2) On the opened new account window, the following information should be provided (Window 3): • First name; • Last name; • Phone number; • Create password; • Repeat password Note: the password must consist of: number, capital letter, symbol (Window 3)
- Page 11 To continue the registration, click the button (bellow): At once the letter with the verification request will be sent to your indicated email. Please open this letter and confirm. LOG IN In order to login to already existing account enter the following information (Window 4): •...
- Page 12 (Window 5) 1.3. ADDING A NEW DEVICE Upon successful registration, you will be directed to the: “Add device’’ window (Window 6), where you need to: • Choose the device you wish to add; • Enter the device serial number or scan QR code. This information is placed on the product label code; •...
- Page 13 (Window 7) IMPORTANT! The IGLU Home Next application is supported by the latest versions of iOS and Android OS, but may not work properly with some mobile phone models. E.g.: OnePlus, Xiaomi. This list is not exhaustive.
- Page 14 2.1. TEMPERATURES SETTINGS In the main application window you can set the desired room air and hot water temperatures (Window 8). This is carried out at follows: • Choose the particular heat pump where you want to define the temperature or make changes; •...
- Page 15 General settings - to define whether notifications, warnings, alerts you want to make an active or disabled; • Information - to reach an information such as the user manuals in PDF or reach the IGLU TECH website by hyperlink; •...
- Page 16 (Window 10) 3.1. HEAT PUMP SETTINGS Click on the section “HEAT PUMP SETTINGS” (Window 10), then the settings window unfold (Window 11) (Window 11)
- Page 17 3.2. LANGUAGE In the “SETTINGS” section (Window 10) unfold ”GENERAL SETTINGS” and you may change the language (Window 12) (Window 12) 3.3. ACCOUNT SETTINGS (DELETE AN ACCOUNT) In the “ACCOUNT SETTINGS’’ section you may delete an account (Window 13): (Window 13)
- Page 18 3.4. THERMAL DISINFECTION TIME When a water heater is installed in the system and an electric heating element is integrated, the system once a week performs thermal disinfection (Window 14);. • In the “SETTINGS’’ click on the section “HEAT PUMP SETTINGS”; •...
- Page 19 • Then click the “Disinfection time” (Window 14), it takes you to the disinfection time setting window (Window 15), where you can select the desired disinfection time. In the water heating settings window you can see information on the time of the next thermal disinfection. (Window 15) In the Disinfection Time window, you can select: •...
- Page 20 STATISTICS WINDOW In order to perform monitoring by day/week/month/year of how much kW of electricity is being used or how much kW of heat energy is being produced click on the statistic icon (below) in the main application window (Window (Window 16) Then pop –...
- Page 21 5. SYSTEM ERROR AND FAILURE INDICATIONS If in the right corner appears a bell with red spot indicates a system error or fault. In this kind of event a system will continue to operate, but every effort should be made to fix the fault. By clicking on the symbol you will be redirected to the ACTICE ALARMS window, where you will see a list of system errors and faults.
- Page 22 LIST OF SYSTEM ERRORS AND FAULTS ITEM POSSIBLE CAUSE ACTION Incoming glycol Temperature sensor or connection Contact customer service. temperature sensor failure. When the problem is resolved, the error disappears automatically. Outgoing glycol Temperature sensor or connection Contact customer service. temperature sensor failure.
- Page 23 Voltage and phase Bad phase sequence. One or two When the problem is resolved, the error control phases are missing. disappears automatically. Hot water preparation Three-way valve failure. Contact customer service. time too long Large temperature Low glycol flow in the outdoor circuit. Clean the outdoor circuit filter.
- Page 24 Valve configuration Incorrect EEV valve configuration. Contact customer service. FC not ready The frequency converter is not ready Contact customer service. When the for operation. E.g., oil return to the problem is resolved, the error disappears compressor. automatically. External alarm External failure (DI).
- Page 25 Supply temperature Supply temperature too high. Contact customer service. too high Controller The connection between the Contact customer service. communication failure controller modules is lost. Internal circuit Fault in the power measurement Contact customer service. circulating pump chain of the internal circuit’s power measurement circulating pump.
- Page 26 CONTROL PANEL (an optional) The control panel comes with the heat pump as an optional The main panel window (Window 1) displays: • Outside temperature; • Water temperature; • Set room air temperature. (Window 1) In the device status window (Window 2) you can: •...
- Page 27 See the current room temperature; INFORMATION CONCERNING THE EU DECLARATION OF CONFORMITY The IGLU TECH heat pumps meet the basic and other essential requirements of the European Union directives and standards and are CE marked. The full text of the EU declaration of...
