Summary of Contents for iglu WTI-7
- Page 1 USER MANUAL GEOTHERMAL HEAT PUMPS IGLU® Aleut...
- Page 2 Technical data of IGLU ® Aleut I variable capacity heat pump............. 21 Technical data of IGLU ® Aleut WTI variable capacity heat pump with integrated water heater ..23 THIS USER MANUAL APPLIES TO THE FOLLOWING HEAT PUMP MODELS .......... .25...
- Page 3 IGLU® heat pumps are equipped with a convenient control system that allows to control the functions of the heat pump, select individual settings and help to quickly find and eliminate faults. The device can also be controlled via a mobile application.
- Page 4 The work must be carried out in accordance with all safety requirements. The copyright of these operating instructions belongs to IGLU TECH UAB. Only a qualified person may transport, connect, activate and maintain the heat pump.
- Page 5 Do not use pure water in the outdoor circuit. ENVIRONMENTAL PROTECTION Environmental protection is a priority of IGLU TECH UAB. Product quality, cost-efficiency and environmental protection are equally important to us. Therefore, we strictly adhere to environmental requirements. In order to protect the environment and take into account financial possibilities, we use the best technologies and materials in our production.
- Page 6 IN CASE OF FAILURE If the illuminated IGLU® logo on the front panel or the IGLU® Home mobile application reports system errors (see, page 8), please contact us immediately and report any error by specifying: date of purchase of the device;...

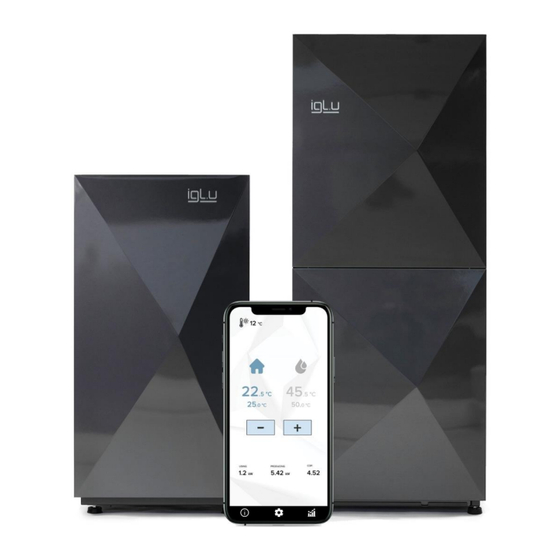

- Page 7 red – heat pump failure, operation is stopped. IGLU® HOME MOBILE APPLICATION IGLU® Aleut geothermal heat pumps are controlled via the IGLU® Home app. It allows to control the device and monitor the operating parameters of the heating system, electricity consumption, thermal energy produced and instantaneous or seasonal coefficient of performance in real time.
- Page 8 App Store Google Play LOGIN AND REGISTRATION When you open the IGLU® Home app for the first time, you will need to log in or register by clicking the Login or Register buttons (Window 1). When the registration window opens, enter the following information (Window 2): ...
- Page 9 STATISTICS section INFORMATION section SETTINGS section IMPORTANT! The IGLU® Home application is supported by the latest versions of iOS and Android OS, but may not work properly with some mobile phone models. E.g.: OnePlus, Xiaomi. This list is not exhaustive.
- Page 10 TEMPERATURES SETTINGS In the main window you can set the desired room air and hot water temperatures (Window 5). This is carried out at follows: by clicking on one of the symbols, the settings of which you want to change (the activated function turns blue);...
- Page 11 LIST OF SYSTEM ERRORS AND FAULTS ITEM POSSIBLE CAUSE ACTION Incoming glycol Temperature sensor or connection Contact customer service. temperature sensor failure. When the problem is resolved, the error disappears automatically. Outgoing glycol Temperature sensor or connection Contact customer service. temperature sensor failure.
- Page 12 Voltage and phase Bad phase sequence. One or two When the problem is resolved, the error control phases are missing. disappears automatically. Hot water preparation Three-way valve failure. Contact customer service. time too long Large temperature Low glycol flow in the outdoor circuit. Clean the outdoor circuit filter.
- Page 13 FC not ready The frequency converter is not ready Contact customer service. When the problem for operation. E.g., oil return to the is resolved, the error disappears compressor. automatically. External alarm External failure (DI). If it is provided Eliminate the external fault signal. that the heat pump can be stopped from an external signal.
- Page 14 Internal circuit Fault in the power measurement Contact customer service. chain of the internal circuit’s circulating pump power measurement circulating pump. failure Outdoor circuit Fault in the power measurement Contact customer service. chain of the outdoor circuit’s circulating pump power measurement circulating pump.
- Page 15 After making adjustments, click the Save button. In the SETTINGS section, clicking the “>” button will take you to an additional window (Window 11) where you can: turn the device on/off; change the language of the IGLU® Home app. Window 11 Window 12...
- Page 16 THERMAL DISINFECTION When a water heater is installed in the system and an electric heating element is integrated, the system periodically performs thermal disinfection. In the water heater settings window (Window 12) you can see information on the time of the next thermal disinfection.
- Page 17 > 4 seconds (Windows 3 and 4) Clicking on the IGLU logo at the bottom in the main window (Window 1) will take you to the device status window (Window 2).
- Page 18 see the current hot water temperature; set the preferred hot water temperature. In the room temperature window (Window 7) you can: see the current room temperature; set the preferred room temperature. In the thermal water disinfection setting window (Window 8) you can select: ...
- Page 19 Technical data of IGLU ® Aleut fixed capacity heat pumps Units 5 kW 7 kW 9 kW 11 kW 13 kW 16 kW Brine/water used Thermal power (B0/W35) 5,24 7,25 9,22 10,95 13,07 15,45 Thermal power (B0/W45) 4,89 6,85 8,67...
- Page 20 Technical data of IGLU ® Aleut WT fixed capacity heat pump with water heater Units 5 kW 7 kW 9 kW 11 kW 13 kW 16 kW Brine/water used Thermal power (B0/W35) 5,24 7,25 9,22 10,95 13,07 15,45 Thermal power (B0/W45)
- Page 21 Technical data of IGLU ® Aleut I variable capacity heat pump Units Aleut 7 I Aleut 12 I Aleut 18 I Power network connection values Electrical connections 400 V 3 N~50 Hz Inertial fuse; with electric 16-20-25 16-20-25 16-20-25 heater 3/6/9 kW...
- Page 22 Brine circuit Rated flow (DT = 3K) 3,00 Permissible external pressure drop Maximum pressure Volume (internal) Operating temperature °C from -10 to +20 Connection (Cu) Compressor “Scroll” Type Mass of refrigerant R410A Maximum pressure Heating system Max. permissible operating 4.00 pressure Max.
- Page 23 Technical data of IGLU ® Aleut WTI variable capacity heat pump with integrated water heater Units Aleut 7 WTI Aleut 12 WTI Aleut 18 WTI Power network connection values Electrical 400 V 3 N~50 Hz connections Inertial fuse; with electric heater 3/6/9...
- Page 24 Brine circuit Rated flow (DT = 3,00 Permissible external pressure drop Maximum pressure Volume (internal) Operating °C from -10 to +20 temperature Connection (Cu) Compressor “Scroll” Type Mass of refrigerant R410A Maximum pressure Heating system Hot water tank volume Max. permissible 4.00 operating pressure Max.
- Page 25 IGLU Aleut 18 WTI INFORMATION CONCERNING THE EU DECLARATION OF CONFORMITY The IGLU® Aleut heat pumps listed above meet the basic and other essential requirements of the European Union directives and standards and are CE marked. The full text of the EU declaration of conformity can be provided by distributors or importers.
