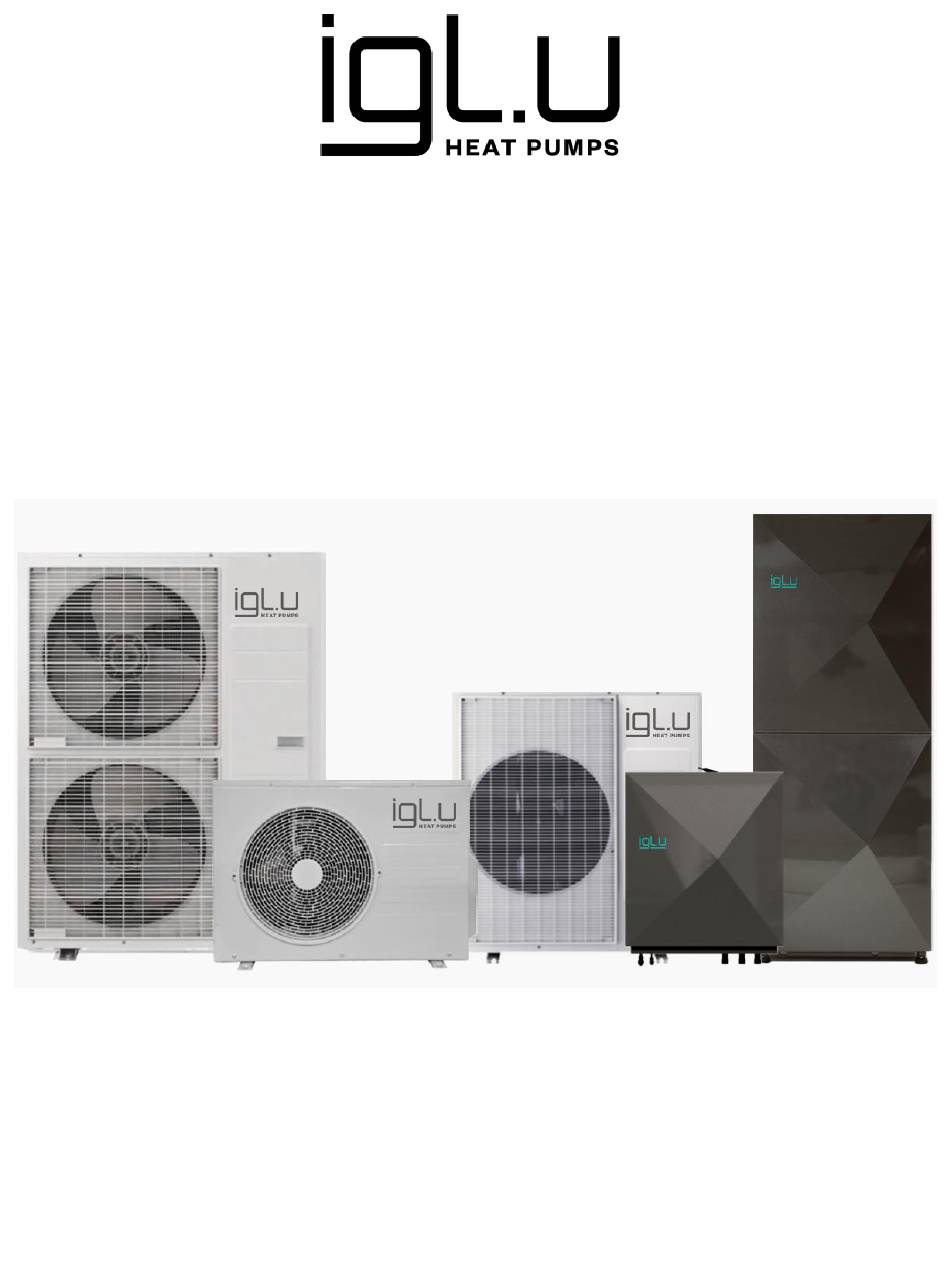

- Page 1 USER MANUAL AIR-TO-WATER HEAT PUMPS IGLU® INUIT...
-
Page 2: Table Of Contents
THERMAL DISINFECTION ............................16 SYSTEM STATUS ............................... 16 STATISTICS SECTION..............................16 CONTROL PANEL ................................17 Technical data of IGLU ® INUIT 6÷16kW AIR-TO-WATER heat pumps ................18 Technical data of IGLU ® INUIT 6÷16kW AIR-TO-WATER heat pumps with integrated boiler ........19... -
Page 3: Introduction
IGLU® heat pumps are equipped with a convenient control system that allows to control the functions of the heat pump, select individual settings and help to quickly find and eliminate faults. The device can also be controlled via a mobile application. -
Page 4: Important Information
The work must be carried out in accordance with all safety requirements. The copyright of these operating instructions belongs to IGLU TECH UAB. Important! Only a qualified person may transport, connect, activate and maintain the heat pump. -
Page 5: Safety
For safety reasons, never open the device unless the device is disconnect from the power supply. ENVIRONMENTAL PROTECTION Environmental protection is a priority of IGLU TECH UAB. Product quality, cost-efficiency and environmental protection are equally important to us. Therefore, we strictly adhere to environmental requirements. In order to protect the environment and take into account financial possibilities, we use the best technologies and materials in our production. -
Page 6: In Case Of Failure
IN CASE OF FAILURE If the illuminated IGLU® logo on the front panel or the IGLU® Home mobile application reports system errors (see, page 8), please contact us immediately and report any error by specifying: date of purchase of the device;... -
Page 7: Product Packaging And Transportation
3. Distribution System: The distribution system includes pipes or radiators that distribute the heated water throughout the building. This can be used to heat the space, supply hot water for showers and faucets, or even heat a swimming pool. The air-to-water heat pump works on the principle of refrigeration. The refrigerant gas is compressed by the compressor. -
Page 8: Logo Illumination
red – heat pump failure, operation is stopped. IGLU® HOME MOBILE APPLICATION IGLU® Inuit air-to-water heat pumps are controlled via the IGLU® Home app. It allows to control the device and monitor the operating parameters of the heating system, electricity consumption, thermal energy produced and instantaneous or seasonal coefficient of performance in real time. -
Page 9: Login And Registration
LOGIN AND REGISTRATION When you open the IGLU® Home app for the first time, you will need to log in or register by clicking the Login or Register buttons (Window 1). When the registration window opens, enter the following information (Window 2): ... -
Page 10: Main Application Window
STATISTICS section INFORMATION section SETTINGS section IMPORTANT! The IGLU® Home application is supported by the latest versions of iOS and Android OS, but may not work properly with some mobile phone models. E.g.: OnePlus, Xiaomi. This list is not exhaustive. -
Page 11: Temperatures Settings
TEMPERATURES SETTINGS In the main window you can set the desired room air and hot water temperatures (Window 5). This is carried out at follows: by clicking on one of the symbols, the settings of which you want to change (the activated function turns blue);... -
Page 12: List Of System Errors And Faults
LIST OF SYSTEM ERRORS AND FAULTS ITEM POSSIBLE CAUSE ACTION Outgoing glycol Temperature sensor or connection Contact customer service. temperature sensor failure. When the problem is resolved, the error disappears automatically. Outgoing heating Temperature sensor or connection Contact customer service. water temperature failure. - Page 13 Large temperature Low heating water flow in the internal Clean the internal circuit filter. difference in the circuit. If the problem persists, contact customer internal circuit service. Tank temperature Temperature sensor or connection Contact customer service. sensor failure. When the problem is resolved, the error disappears automatically.
-
Page 14: Information Section
High temperature in High temperature in the internal If the operating mode was extreme: after the indoor circuit circuit circulation pump electronics. switching off the heat pump, wait for the circulation pump internal circulation pump to cool down. If electronics the problem persists, contact customer service. - Page 15 In the SETTINGS section, clicking the “>” button will take you to an additional window (Window 11) where you can: Window 9 Window 10 turn the device on/off; change the language of the IGLU® Home app. Window 11 Window 12...
-
Page 16: Thermal Disinfection
THERMAL DISINFECTION When a water heater is installed in the system and an electric heating element is integrated, the system periodically performs thermal disinfection. In the water heater settings window (Window 12) you can see information on the time of the next thermal disinfection. -
Page 17: Control Panel
CONTROL PANEL The control panel comes with the IGLU® Inuit heat pump. The main panel window (Window 1) displays: outside temperature; water temperature; set room air temperature. Window 1 Window 2 In the device status window (Window 2) you can: ... -
Page 18: Technical Data Of Iglu ® Inuit 6÷16Kw Air-To-Water Heat Pumps
Technical data of IGLU ® INUIT 6÷16kW AIR-TO-WATER heat pumps Units 6 kW 9 kW 12 kW 16 kW Air-water used Nominal Heating capacity/ COP (A7/W35) kW/ W/W 6,0/ 4,92 9,0/ 4,81 12,0/ 4,63 16,0/ 4,26 Nominal Heating capacity/ COP (A2/W35) -
Page 19: Technical Data Of Iglu ® Inuit 6÷16Kw Air-To-Water Heat Pumps With Integrated Boiler
Technical data of IGLU ® INUIT 6÷16kW AIR-TO-WATER heat pumps with integrated boiler Units 6 kW 9 kW 12 kW 16 kW Air-water used Nominal Heating capacity/ COP (A7/W35) kW/ W/W 6,0/ 4,92 9,0/ 4,81 12,0/ 4,63 16,0/ 4,26 Nominal Heating capacity/ COP (A2/W35) - Page 20 IGLU INUIT 16 WTI INFORMATION CONCERNING THE EU DECLARATION OF CONFORMITY The IGLU® INUIT heat pumps listed above meet the basic and other essential requirements of the European Union directives and standards and are CE marked. The full text of the EU declaration of conformity can be provided by distributors or importers.
