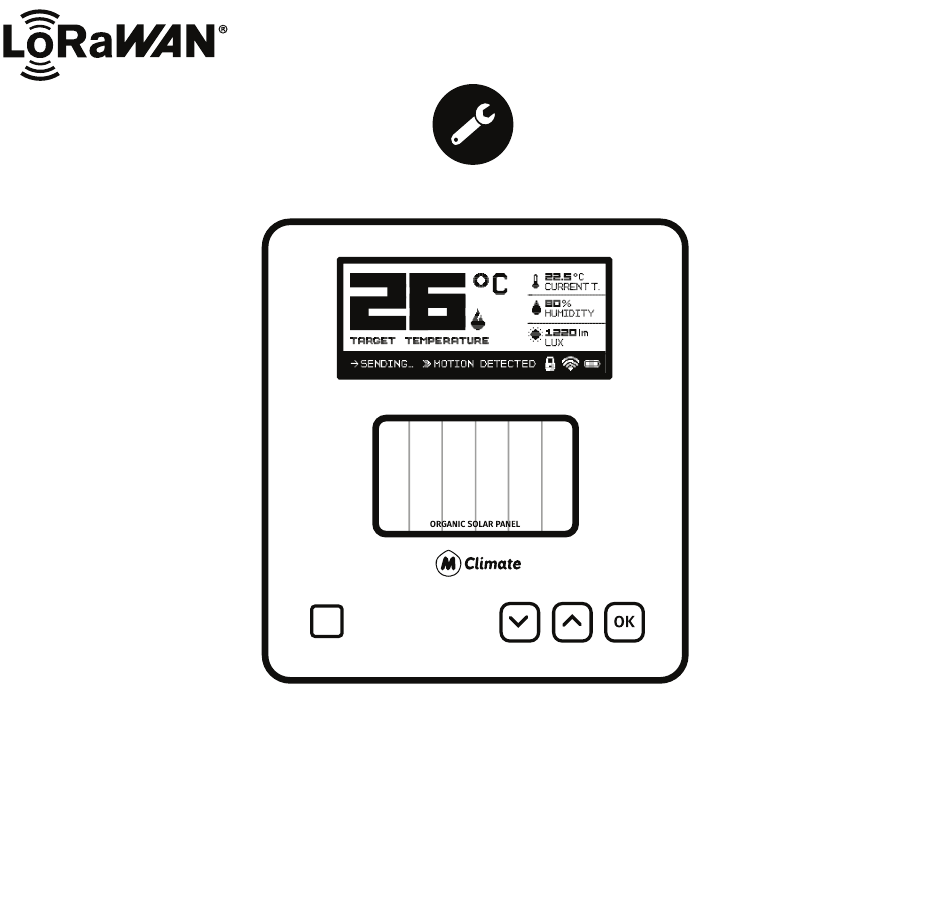

- Page 1 MClimate Wireless Thermostat LoRaWAN® User manual...
- Page 2 Scan the QR Code Bulgarian Dutch to access MClimate Wireless За да разберете как се инсталира Om te weten te komen hoe u MClimate MClimate Wireless Thermostat Wireless Thermostat LoRaWAN® Thermostat LoRaWAN® LoRaWAN®, сканирайте QR кода installeert, scan de QR-code of bezoek или...
- Page 3 Table of content What’s inside the box? What is in the box? Technical details, Safety instructions, Legal Notices & Compatibility Device Parts, Mechanical dimensions Display’s content MClimate Wireless Thermostat LoRaWAN® Buttons Behavior Commissioning Placement guidelines Installation Wall mounting plate T5 Secure bolt...
- Page 4 (PIR), temperature and humidity sensor, LUX sensor and 3 buttons. The user can change the target temperature and see current indoor turer MClimate Jsc., is not responsible for any loss conditions. The device sends an uplink after any event as well as or damage caused by failure to follow the periodically.
- Page 5 Display Solar panel PIR Sensor Down OK button MClimate Wireless Thermostat LoRaWAN®, top view MClimate Wireless Thermostat LoRaWAN®, back view Epishine’s indoor solar cell modules are manufactured using a roll-to-roll production process which includes a barrier foil to safeguard against water vapor and oxygen resulting in minor scratches on the outer layer.
- Page 6 Display’s content The image below has all visible elements of the display activated. Description The 2.9” e-ink display supports fast partial refresh. Target temperature Full refresh is performed every 12 hours (period can be adjusted via a downlink) to avoid the e-ink Sensor temperature phenomena “image sticking”...
- Page 7 Buttons top view bottom view Button Function Up arrow Increase the target temperature Down arrow Decrease the target temperature Reserved for future use OK + Down To enable/disable press the OK and DOWN buttons together and hold for 4 seconds. The DOWN button needs to be pressed within 2 seconds of pressing the OK button.
- Page 8 Start-up behavior Using multiple energy sources The device starts when you press the Reset button on the The MClimate Wireless Thermostat LoRaWAN® has three back one time. options for power supply: At startup, the device measures the voltage of the...
- Page 9 Commissioning Continue the Installation with the instructions Before you install the device, we highly recommend of your LoRaWAN® Network provider. that you first commission it on your LNS. Once the RESTART button is pressed, the device will initiate a LoRaWAN Join Procedure on SF9. Please, make sure you enable ADR in your LNS and/or mark the device as static.
- Page 10 Placement guidelines Do not place the device in direct sunlight, as this will result in gradual worsening of the performance of the solar panel. A few hours a day in direct sunlight wouldn’t be an issue. >20cm 150cm...
- Page 11 Installation We recommend installing the device in an open environment (e.g. not in a recess) at 1.5m height. Do not install the device near big metal items as it will worsen the RF performance. Use double-sided tape to attach it to the surface or screws and dowels to attach the anti-theft bracket in a more permanent manner.
- Page 12 Designed & Manufactured by MClimate in Europe. last update: 16.08.2024...
