Summary of Contents for MClimate MC-LW-FCT-01
- Page 1 MClimate Fan Coil Thermostat LoRaWAN® User manual...
- Page 2 Fan Coil Thermostat Slovak Polish Czech Hungarian LoRaWAN® extended Chcete-li zjistit, jak A MClimate Fan Coil Thermostat Ak chcete zistiť, ako Aby dowiedzieć się, jak nainstalovat MClimate Fan LoRaWAN® telepítésének nainštalovať MClimate Fan Coil zainstalować MClimate Fan Coil Coil Thermostat LoRaWAN®, kiderítéséhez keresse meg a...
-
Page 3: Table Of Contents
What is in the box? Introduction Technical details, Safety instructions, Legal Notices & Compatibility Installation Guide User Interface Guide 10-11 Wall mounting plate Secure bolt Operating Instructions 12-13 MClimate Fan Coil Thermostat LoRaWAN® T5 torx Connectivity and Smart Building Wiring diagrams Power module... -
Page 4: Introduction
MClimate Enterprise platform. Functions The MClimate FCT is a Class C LoRaWAN device, available for EU868, US915, AS923 and AU915 regions. This means that there’s real-time communication between the FCT and the LoRaWAN - Maintenance of room temperature via built-in temperature sensor or external network - commands can be sent to the FCT and it will respond as soon as possible. -
Page 5: Technical Details, Safety Instructions
Dimensions: 105 x 115 x 23mm specifications are subject to change without notice. combination heaters ,the following classes apply: MClimate retains all rights to review or update its Weight: 220gr Application with On / Off operation of a heater Class I value... -
Page 6: Installation Guide
Installation Guide Tools required (not exhaustive, depends on what thermostat you are replacing): - T5 torx screwdriver (used on secure bolt on mounting plate). - Small flat screwdriver (used for connecting wires to the terminal block). Before you install the device, we highly recommend that you first commission it on your LNS. Once the device is powered, it’ll initiate a LoRaWAN join-procedure using SF12. - Page 7 Installation Guide Danger of electrocution! The removal of the device from the metal mounting bracket exposes parts which carry mains voltage. The unit should be opened only by a qualified electrician or by the manufacturer‘s service personnel. Before starting any work on the electrical connections, separate the unit from the mains power supply.
- Page 8 Mounting 150cm Do not mount on a wall in niches or bookshelves, behind curtains, above or near heat sources, or exposed to Warning! The room thermostat direct solar radiation. Mount about 1.5 must be mounted in a Do not mount the device m (5 feet) above the floor.
- Page 9 Mounting Turn off the power supply to the existing thermostat and remove the thermostat WITHOUT disconnecting the Find out what is the correct wiring diagram. cables. They can help you with the next step. Further in this document, you’ll find wiring diagrams for different types of Fan Coil Units, compatible with the Fan Coil Thermostat.
- Page 10 Mounting Validate that the Fan Coil Unit is reacting to adjusting the modes, fan speed and target temperature through the FCT. Once you enter the Installer’s menu, select the correct wiring diagram for your Do not use non-flat head application. screws for the mounting bracket.
-
Page 11: User Interface Guide

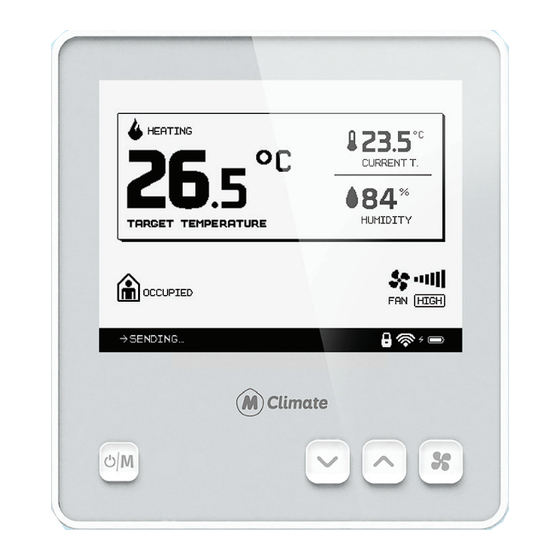

Long press 3 seconds turns the thermostat OFF. Down arrow Decreases target temperature Navigates items in Installer’s menu Increases target temperature Up arrow Navigates items in Installer’s menu Changes the fan speed according to the allowed fan speeds. Assembled MClimate Fan Coil Thermostat LoRaWAN®, top view... - Page 12 Accept/Join Failed/Sending, indicating the radio activity of the device. Lock Shows in case some of the buttons are locked Assembled MClimate Fan Coil Thermostat LoRaWAN®, top view Filter alarm Shows in case a filter alarm is connected to the IO1 and IO2 terminals.
-
Page 13: Operating Instructions
Operating Instructions Turning the thermostat ON/OFF The button on the far left of the thermostat serves two functions - turn it on and off and switch between modes. If the thermostat is currently off (screen is blank), a short press of the ON/OFF/MODE button will turn it on. The device should show more information, incl. - Page 14 Operating Instructions Mode selection By default, the device supports 3 operating modes - heating/cooling/ventilation. Depending on the wiring diagram of the Fan Coil Unit, some modes might be disabled by default. E.g. if you are using a 2-pipe fan coil unit, it can either heat or cool, it cannot do both throughout the whole year.
-
Page 15: Connectivity And Smart Building
In case you want to integrate the constantly listen for commands from the Building Management Software MClimate MClimate FCT into an existing BMS/BAS gateways. It means that the device will Enterprise, which unlocks monitoring system, that’s possible when using a... -
Page 16: Wiring Diagrams
Wiring diagrams Heating and cooling with 3-speed fan 2-pipe ON/OFF (220VAC); 2-pipe ON/OFF 3-wire valve (220VAC); 4-pipe ON/OFF (220VAC); 1-3 speeds fan; 1-3 speeds fan; 1-3 speeds fan; OPEN CLOSE Multipurpose Multipurpose Multipurpose input/output input/output input/output (occupancy, auto change-over, etc.) (occupancy, (occupancy, auto change-over, etc.) - Page 17 Designed & Manufactured by MClimate in Europe. last update: 01.04.2024...
