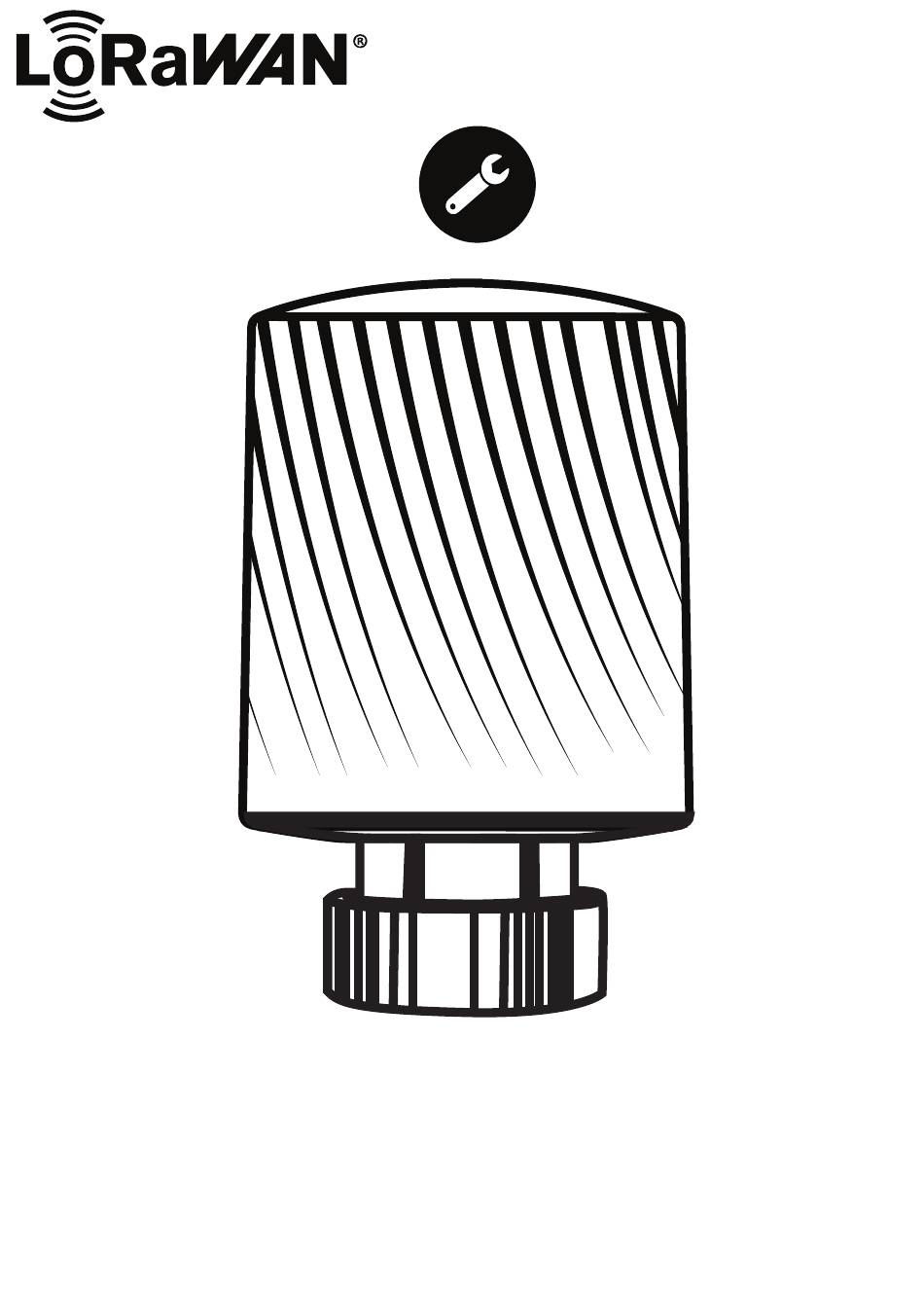

  • Page 1 Vicki LoRaWAN® User manual...

  • Page 2: Need Some Help

    Scan the QR Code Bulgarian to access MClimate За да разберете как се инсталира MClimate Vicki LoRaWAN® Vicki LoRaWAN®, сканирайте extended QR кода или посетете линка documentation до него. Italian Per installare MClimate Vicki LoRaWAN® scannerizzare il codice QR oppure aprire il link al suo lato.
  • Page 3 QR-koodi tai vierailla sen vieressä olevassa linkissä. Dutch Technical details, Safety Om te weten te komen hoe u instructions, Legal MClimate Vicki LoRaWAN® installeert, scan de QR-code Notices & Compatibility of bezoek de link ernaast. Polish Commissioning Aby dowiedzieć się, jak zainstalować...

  • Page 4: What Is In The Box

    What is in the box? Vicki Vicki’s backplate User manual 2xAA Batteries Energizer Lithium Ultimate L91...

  • Page 5: Technical Specifications

    Technical specifications Description: MClimate Vicki LoRaWAN - Smart Radiator Thermostat Developed & Manufactured by MClimate™ Model: MC-LW-V02 Dimensions: 54x78x50mm Weight: 107gr. Wireless technology: LoRaWAN® 1.0.3 LoRaWAN Security: LoRaWAN® End-to-End encryption (AES-CTR) LoRaWAN Device type: Class A End-device Supported LoRaWAN Features: OTAA, ADR, Adaptive Channels setup Supported LoRaWAN Regions: EU868 –...

  • Page 6: Safety Instructions

    Failure to follow the recommended instructions in this manual may be dangerous or in violation of the law. The manufacturer MClimate Jsc., is not responsible for any loss or damage caused by failure to follow the instructions in the operating manual.
  • Page 7 You can find a copy of the Declaration of Conformity at: www.mclimate.eu/conformity Compatibility Vicki works with the majority of radiator valves. Default radiator valve fitting: M30x1.5 Available adaptors: RA, RAV, RAVL, ORAS Termostar, ORAS Stabila, Oventrop, Giacomini, Caleffi, M28x1.5 to M30x1.5 In order to operate Vicki, you will need: -LoRaWAN®...
  • Page 8 Commissioning Open your LoRaWAN® Network provider access panel and add the device using the supplied Serial Number, DevEUI, AppEUI (JoinEUI) and AppKey. The data is example. Do not use. Continue the Installation with the instructions of your LoRaWAN® Network provider. You can get DevEUI, AppEUI (JoinEUI) &...
  • Page 9 Batteries Follow the steps below to insert the batteries. backplate Unplug the backplate of Vicki. battery metal cover Open the metal battery cover gently by using two fingers. Insert 2xAA 1.5VDC batteries and fix the battery cover tightly in place.
  • Page 10 Batteries display After successfully inserting the batteries and closing the metal battery plate, the device will display "Hi". If you don't see Hi, please check the polarity and voltage of your batteries. Recommended batteries: Energizer Lithium Ultimate L91 Device does not operate with rechargeable batteries! Do not mix new batteries in use with semi-used batteries or different types of batteries as it will affect the performance and conditions of Vicki.

  • Page 11: Installation

    Installation Remove the old radiator thermostat. thermostatic valve Set the old thermostastic valve to the highest setting (e.g. 5). Unscrew the securing ring and remove the thermostat. Warning: If you already have a thermostatic valve, during installation no water will leak. If you don't have a thermostatic valve, please call a specialist and ask them to replace your valves.
  • Page 12 Mount Vicki on the thermostatic valve Warning: Mount Vicki on the backplate ONLY AFTER the backplate is mounted and secured on the radiator valve. Place the backplate of Vicki on the thermostatic valve, use appropriate adaptors when required. Screw tightly the securing ring. Do not overscrew. Align the head and backplate notches and insert Vicki on the backplate.
  • Page 13 animation display After succesfully mounting of Vicki the front display must show the calibration animation. After that, Vicki starts calibrating, which takes 1-2 minutes MAX. If the calibration was successful, when you rotate Vicki, you should see degrees changing. If you do not see anything light up on the display, calibration was not successful and you might need to use a pin extender.
  • Page 14 Device operation Manual target temperature control You can set desired temperature directly from Vicki by rotating the device until you see the target temperature on the display. A properly installed and connected Vicki displays the target temperature when rotated. If two dashes appear on the top and bottom before the temperature, the device did not join the network successfully.

  • Page 15: Low Battery Indication

    Low battery indication If Vicki's batteries are running low, it indicates that by showing a "Lo" message on the display.

  • Page 16: Child Lock

    Child lock If Child lock is activated, Vicki’s display will show “Ch” and the manual temperature control will be disabled.
  • Page 17 Calibration animation Once you attach Vicki to the radiator, a calibration process will be initiated. The aim of the calibration process is to let Vicki know the kind of valve she is attached to. During calibration, the display will show a loading animation.
  • Page 18 Designed & Manufactured by MClimate in Europe. last update: 29.05.2024...
