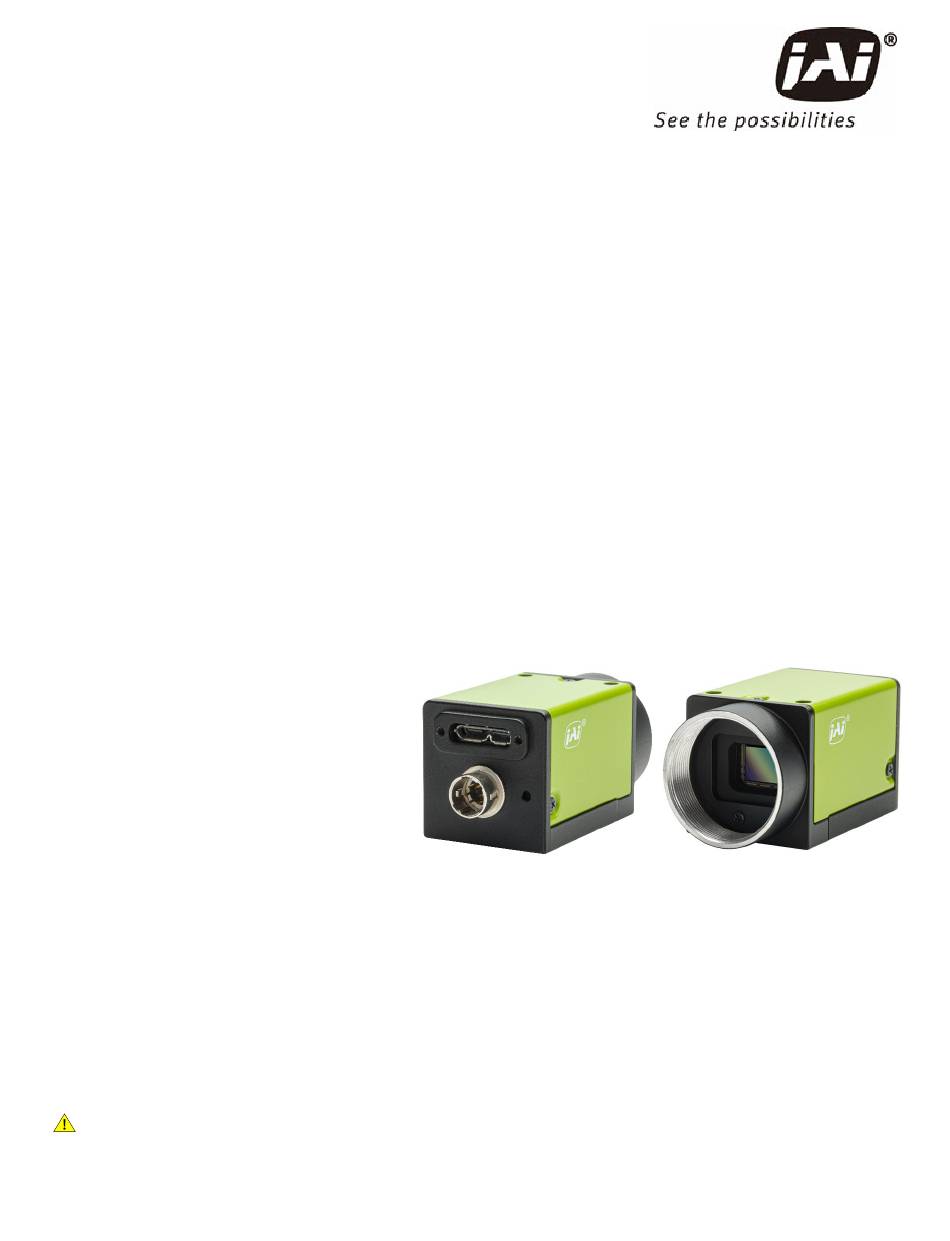

Page 1 User Manual Go-X Series - USB3 Vision Interface GOX-2402M-USB GOX-2402C-USB GOX-3200M-USB GOX-3200C-USB GOX-3201M-USB GOX-3201C-USB GOX-5102M-USB GOX-5102C-USB GOX-5103M-USB GOX-5103C-USB GOX-8901M-USB GOX-8901C-USB GOX-12401M-USB GOX-12401C-USB Digital CMOS Progressive Scan Global Shutter Camera (Monochrome and Color) Document Version: 1.3 Date: 2024-08-29 Thank you for purchasing this product.
Page 2 User Manual (Ver. 1.3) - Table of Contents GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Table of Contents Table of Contents About Technical Note Notice/Warranty Notice Warranty Certifications CE Compliance Warning China RoHS Usage Precautions Notes on Cable Configurations Notes on Attaching the Lens Phenomena Specific to CMOS Image Sensors...
Page 3 User Manual (Ver. 1.3) - Table of Contents GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ② Mounting (or Use MP-43 Tripod Adapter Plate) ③ USB Cable ④ DC IN / Trigger IN Connection Cable ⑤ AC Adapter (Power Supply) (If Necessary) Step 3: Verify Camera Operation Step 4: Verify the Connection between the Camera and PC Step 5: Change the Camera Settings...
Page 4 User Manual (Ver. 1.3) - Table of Contents GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-3201MC-USB (ExposureMode = Timed) GOX-5102MC-USB (ExposureMode = Timed) GOX-5103MC-USB (ExposureMode = Timed) GOX-8901MC-USB (ExposureMode = Timed) GOX-12401MC-USB (ExposureMode = Timed) Exposure Mode = TriggerWidth (Overlap Readout) GOX-2402MC-USB (ExposureMode = TriggerWidth) GOX-3200MC-USB (ExposureMode = TriggerWidth)
Page 5 User Manual (Ver. 1.3) - Table of Contents GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Single ROI - Example ROI Function (Multi ROI) Pulse Generator Sequencer Function TriggerSequencer Mode Sample TriggerSequencer Mode Operation CommandSequencer Mode Counter and Timer Control Function Counter Occurrence Diagram Internal Camera Blocks...
Page 6 About Technical Note Some additional technical information is provided on the JAI website as Technical Notes. In this manual, if a technical note is available for a particular topic, the above icon is shown. Please refer to the following URL for Technical notes.
Page 7 The material contained in this manual consists of information that is proprietary to JAI Ltd., Japan, and may only be used by the purchasers of the product. JAI Ltd., Japan makes no warranty for the use of its product and assumes no responsibility for any errors which may appear or for damages resulting from the use of the information contained herein.
Page 8 기자재명칭: Industrial Camera 기자재명칭: Industrial Camera 모 델 명: GOX-2402M-USB 모 델 명: GOX-2402C-USB 제조자 및 제조국가: JAI Ltd., Japan / JAPAN 제조자 및 제조국가: JAI Ltd., Japan / JAPAN R-R-JAi-GOX-5102C-USB R-R-JAi-GOX-5102C-USB 상 호: JAI Ltd. Japan 상 호: JAI Ltd. Japan 기자재명칭:...
Page 9 기자재명칭: Industrial Camera 기자재명칭: Industrial Camera 모 델 명: GOX-8901M-USB 모 델 명: GOX-8901C-USB 제조자 및 제조국가: JAI Ltd., Japan / JAPAN 제조자 및 제조국가: JAI Ltd., Japan / JAPAN R-R-JAi-GOX-5102C-USB R-R-JAi-GOX-5102C-USB JAI Ltd. Japan JAI Ltd. Japan 상 호: 상 호: 기자재명칭:...
Page 10 User Manual (Ver. 1.3) - Notice/Warranty GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB China RoHS The following statement is related to the regulation on “Measures for the Administration of the Control of Pollution by Electronic Information Products “, known as “China RoHS“. The table shows contained Hazardous Substances in this camera.
Page 11 User Manual (Ver. 1.3) - Usage Precautions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Usage Precautions Notes on Cable Configurations The presence of lighting equipment and television receivers nearby may result in video noise. In such cases, change the cable configurations or placement.
Page 12 User Manual (Ver. 1.3) - Usage Precautions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Phenomena Specific to CMOS Image Sensors The following phenomena are known to occur on cameras equipped with CMOS image sensors. These do not indicate malfunctions.
Page 13 GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Features Go-X Series USB3 Vision interface cameras are industrial progressive scan cameras equipped with a global shutter CMOS image sensor. These provide an attractive combination of high resolution, high speed, and high image quality for machine vision applications.
Page 14 User Manual (Ver. 1.3) - Parts Identification GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Parts Identification ① Lens Mount (C-Mount) ② USB Connector ③ POWER/TRIG LED ④ DC IN/TRIG Connector (6-Pin Round) ⑤ ⑥ ⑦ Mounting Holes ①...
Page 15 User Manual (Ver. 1.3) - Parts Identification GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ③ POWER/TRIG LED Indicates the power or trigger input status. Status Lit amber Camera initializing Lit green Camera in operation During operation in trigger mode, trigger signals are being input.
Page 16 User Manual (Ver. 1.3) - Parts Identification GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ⑤ ⑥ ⑦ Mounting Holes Use these holes when mounting the camera directly to a wall or other structural system. ⑤...
Page 17 User Manual (Ver. 1.3) - Parts Identification GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Characteristics of the Recommended Circuits for Opto OUT OUTPUT LINE RESPONSE TIME For the operating conditions of applied voltage (User Power) +12V, load resistance 10kΩ, and cable length 1m, the timing is shown in the table below.
Page 18 When using the camera for the first time, install the software for configuring and controlling the camera (eBUS SDK for JAI) on the computer. Note: When you install eBUS SDK for JAI, eBUS Player for JAI will also be installed. 1. Download the eBUS SDK for JAI from the JAI website (https://www.jai.com/support-software/jai-...
Page 19 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Step 2: Connect Devices ① Lens ② Mounting (or Use MP-43 Tripod Adapter Plate) ③ USB Cable ④ DC IN / Trigger IN Connection Cable ⑤...
Page 20 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Model Name Image Sensor GOX-5102M-USB Mono GOX-5102C-USB Color Type2/3 8.45 mm x 7.07 mm (11.01 mm diagonal) GOX-5103M-USB Mono GOX-5103C-USB Color GOX-8901M-USB Mono Type1...
Page 21 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ③ USB Cable Connect a USB cable to the USB 3.0 connector. Caution: The camera is equipped with a USB 3.0 compatible Micro B connector. Although this connector includes USB 2.0 connectors, the camera does not support use of USB 2.0.
Page 22 Verify whether the camera is properly recognized via Control Tool. 1. Launch eBUS Player for JAI. eBUS Player for JAI startup screen appears. 2. Select the camera you want to configure. Click the Select / Connect button. - 22 -...
Page 23 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB 3. The connected camera is listed. Please select one camera and click OK. 4. Check that the settings of the selected camera are displayed. - 23 -...
Page 24 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB 5. Click the Device control button. The screen shown below will be displayed. In this window, you can adjust various settings of the camera. This completes the procedure for verifying whether the camera is properly recognized and whether control and settings configuration are possible.
Page 25 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Example: Configure the Width of ImageFormatControl 1. By selecting the item of Width, you can change the value as shown below. Note: Depending on the setting item, you need to change visibility.
Page 26 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Adjust the Gain Adjust the image quality using the gain and white balance functions. The Visibility must be changed from Beginner to Guru. Note: For details on the Gain control, see Gain Control in the Main Functions chapter.
Page 27 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Adjust the White Balance Adjust the white balance using the automatic adjustment function. Note: The white balance function is only supported on color models. Automatic White Balance Adjustment 1.
Page 28 Related Setting Items: UserSetControl The setting values configured in eBUS SDK for JAI will be deleted when the camera is turned off. By saving current setting values to user memory, you can load and recall them whenever necessary. You can save up to three sets of user settings in the camera.
Page 29 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB To Save User Settings 1. Stop image acquisition. 2. Expand UserSetControl and select the save destination (UserSet1 to UserSet3) in UserSetSelector. Note: The factory default setting values are stored in Default and cannot be overwritten.
Page 30 User Manual (Ver. 1.3) - Preparation GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB To Load User Settings 1. Stop image acquisition. User settings can only be loaded when image capture on the camera is stopped. 2.
Page 31 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Main Functions This chapter describes the camera's main functions. Acquisition Control Related Setting Items: AcquisitionControl This camera has three Acquisition modes (SingleFrame, MultiFrame, Continuous). Use the AcquisitionControl settings to perform operations and settings for image capture.
Page 32 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Changing the Frame Rate When TriggerMode is disabled, you can change the frame rate in AcquisitionFrameRate. Notes: The shortest frame period varies depending on the ROI, pixel format, and binning mode selected. The longest frame period is 0.125 Hz (8 sec.).
Page 33 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Actual Exposure Time Related Setting Items: AcquisitionControl The actual exposure time will consist of the image sensor’s offset duration (refer to the table below) added to the setting configured on the camera.
Page 34 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Automatic Exposure Level Control (ExposureAuto) ExposureAuto (AcquisitionControl) can be used to automatically control exposure levels. In combination with GainAuto (AnalogControl), ExposureAuto can also be used to adjust various changes in brightness (ALC (Automatic Level Control) Function).
Page 35 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Trigger Control Related Setting Items: AcquisitionControl The camera allows the following controls to be performed via external trigger signals. TriggerSelector Description AcquisitionStart Start image acquisition in response to the external trigger signal input.
Page 36 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB When Using the FrameStart Trigger When AcquisitionStart is executed and a FrameStart trigger is received before the AcquisitionStop command is executed, one frame is acquired.
Page 37 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Image Flip Function Related Setting Items: ImageFormatControl Using this function, you can output the image by inverting it horizontally and/or vertically. In the ImageFormatControl settings, To reverse the image horizontally, set ReverseX to True.
Page 38 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GPIO (Digital Input/Output Settings) Related Setting Items: DigitalIOControl The camera can input/output the following signals to and from external input/output connectors. External Output Line2 : Opt Out DC IN / TRIG IN Connector (6-pin round)
Page 39 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB The table below shows the source signals that can be set. Nand0In1 Nand1In1 Timestamp Line Source Line2 Opt Out Line5 Opt In Nand0In2 Nand1In2 Reset...
Page 40 Note: The Frame Rate Calculator, which calculates the maximum frame rate or trigger rate, is available for download from the product page on the JAI website (www.jai.com). This section describes how to calculate the maximum frame rate (approximate). The maximum frame rate is as follows depending on the sensor’s scanning range and the USB bandwidth.
Page 41 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Please refer to table below for VerticalLineNumber. BinningHorizontal = 2 BinningHorizontal = 1 BinningHorizontal = 2 Model Name BinningVertical = 1 BinningVertical = 2 BinningVertical = 2 GOX-2402MC-USB...
Page 42 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Please refer to table below for Non-ExposurePeriod[H] . Model name Non-ExposurePeriod[H] GOX-2402MC-USB 16 (2x2 Binning) GOX-3200MC-USB GOX-3201MC-USB GOX-5102MC-USB GOX-5103MC-USB GOX-8901MC-USB GOX-12401MC-USB ExposureTime ≦...
Page 43 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Timing Chart Related Setting Items: AcquisitionControl This section shows the timing charts under the following conditions on each model when FrameStartTriger is set to On.
Page 44 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-2402MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 6146 15.4...
Page 45 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-3200MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 8396 16.4...
Page 46 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-3201MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 17921 35.3...
Page 47 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-5102MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 13387 18.8...
Page 48 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-5103MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 27933 41.3...
Page 49 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-8901MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 30864 43.1...
Page 50 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-12401MC-USB (ExposureMode = Timed) Period From Trigger start edge to PixelFormat Frame Period [A] (usec) Exposure start [B] (usec) Binning Off Mono8 42735 43.1...
Page 51 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Exposure Mode = TriggerWidth (Overlap Readout) This section shows the timing charts when FrameStartTrigger is set to On, and ExposureMode is set to TriggerWidth (Overlap Readout).
Page 52 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-2402MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 53 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-3200MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 54 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-3201MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 55 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-5102MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 56 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-5103MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 57 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-8901MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 58 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB GOX-12401MC-USB (ExposureMode = TriggerWidth) Period From Trigger Period From Trigger Period From Exposure PixelFormat Frame Period [A] (usec) start edge to Exposure end to Exposure end [C] end to next Trigger start start [B] (usec)
Page 59 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Gain Control Related Setting Items: AnalogControl Adjust the overall gain with AnalogAll (master gain) and adjust the white balance by changing DigitalRed and DigitalBlue.
Page 60 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Automatic Gain Level Control (GainAuto) GainAuto (AnalogControl) can be used to automatically control gain levels. In combination with ExposureAuto (AcquisitionControl), GainAuto can be used to adjust various changes in brightness (ALC (Automatic Level Control) Function).
Page 61 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB White Balance Related Setting Items: AnalogControl To adjust the white balance automatically, set BalanceWhiteAuto to Once (automatic adjustment only once) or Continuous (automatic adjustment always).
Page 62 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ALC (Automatic Level Control) Function Related Setting Items: AutoLevelControl The ALC (Automatic Level Control) function can handle various changes in brightness by combining the automatic gain control (AGC) and automatic exposure control (ASC/Auto Shutter Control) operations.
Page 63 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Note: If the ALCControlRatio setting is large, the ALC operation may cause hunting depending on the AcquisitionFrameRate setting. In this case, decrease the value of AcquisitionFrameRate or ALCControlRatio.
Page 64 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB LUT (Lookup Table) Related Setting Items: LUTControl The LUT function is used to generate a non-linear mapping between signal values captured on the sensor and those that are output from the camera.
Page 65 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB BlemishCompensation Related Setting Items: BlemishControl Multiple defective pixels that are not adjacent to each other can occur on CMOS sensor cameras. This camera features a function that interpolates defective pixels using the surrounding pixels.
Page 66 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Manual Configuration 1. Select the index in BlemishCompensationIndex. You can select from 1 to 256. However, configure the indexes in order starting with the smallest index. If you skip indexes while configuring settings, interpolation may not be performed.
Page 67 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Shading Correction Related Setting Items: ShadingControl The ShadingCorrection function corrects non-uniformity (i.e., shading) in the amount of light generated by the lens and lighting equipment.
Page 68 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB To Use the Shading Correction Function Configure the settings as follows. Item Setting Value Description FlatShading, ShadingCorrectionMode Select the shading correction mode. ColorShading User1, User2, User3, Select the user area to which to save the shading...
Page 69 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB This camera supports BinningHorizontal and BinningVertical mode. BinningHorizontal BinningVertical Details of Binning Setting Items Binning Horizontal Mode Binning Horizontal Model Name Binning Vertical Mode Binning Vertical Digital processing (on FPGA).
Page 70 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB VideoProcessBypassMode and Binning Depending on the camera model, Binning and VideoProcessBypassMode can or cannot be used together. Can be used together: GOX-2402M-USB, GOX-3200M-USB, GOX-5102M-USB Note: On GOX-2402M-USB, when VideoProcessBypassMode is set to On, BinningHorizontal and BinningVertical cannot be set separately.
Page 71 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ROI Function (Single ROI) Related Setting Items: ImageFormatControl The ROI (region of interest) function allows you to output images by specifying the areas to scan. Specify the area to scan by specifying width, height, and horizontal/vertical offset values under ImageFormatControl.
Page 72 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Height/OffsetY (Lines) Height BinningVertical = 1 BinningVertical = 2 *C, D = HeightMax OffsetY (OFF) (ON) GOX-2402MC-USB 1200 Height 8 to [(*C) - OffsetY], 4 to [ (*D) - OffsetY], (lines) step 2...
Page 73 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ROI Function (Multi ROI) Related Setting Items: MultiROIControl Notes: This function is supported only on GOX-3200MC-USB and GOX-5102MC-USB. The Multi ROI function cannot be used with the following functions: Sequencer Function, Decimation...
Page 74 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Caution: The specified areas cannot overlap. If the areas overlap, the camera automatically adjust the values so that the areas will not overlap. Notes: You can increase the frame rate due to the reduced scanning time for the combined areas.
Page 75 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Pulse Generator Related Setting Items: PulseGenerator Tips for using the Pulse Generator By using this function, any signal can be generated inside the camera. The following is an example of signal generation.
Page 76 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Sequencer Function Related Setting Items: SequencerControl The Sequencer function lets you define up to 32 index combinations of exposure time, gain, ROI, and other settings which can be stepped through each time a trigger is received.
Page 77 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB TriggerSequencer Mode With this mode, the Sequencer Trigger “pattern” is predetermined by the user. The user defines up to 32 different “indexes.”...
Page 78 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Sample TriggerSequencer Mode Operation User-Defined Indexes (Up to 32) 1. Specify "1" in SequencerSetStart and start TriggerSequencer mode with index 1. 2.
Page 79 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB CommandSequencer Mode As with TriggerSequencer mode, you can define up to 32 indexes beforehand in this mode. Set SequencerCommandIndex to point to one of your preconfigured indexes. This index will be executed on each trigger, until it is changed to point to a different index, typically by your vision application.
Page 80 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Counter and Timer Control Function Related Setting Items: CounterAndTimerControl Note: This camera supports only the Counter function. The counter function counts up change points in the camera’s internal signals using the camera’s internal counter and reads that information from the host side.
Page 81 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Counter Occurrence Diagram Note: You can reset a specific counter's count value by executing CounterReset[Counter0, Counter1, Counter2, Counter3]. Internal Camera Blocks - 81 -...
Page 82 User Manual (Ver. 1.3) - Main Functions GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Chunk Data Function Related Setting Items: ChunkDataControl The Chunk Data function adds camera configuration information to the image data that is output from the camera.
Page 83 This camera complies with GenICam. Each setting item name conforms to GenICam SFNC (Standard Features Naming Convention). (There are some JAI-specific setting items). Each setting item is an integer type (IInteger), a real type (IFloat), an element enumeration type (IEnumeration), a character string (IString), a logical type (IBoolean), and a category type (ICategory) or a command type (ICommand) for executing the function.
Page 84 GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB DeviceControl Display/configure information related to the device. Device Control Items Setting Range Default Description "JAI DeviceVendorName Display the manufacturer name. Corporation" DeviceModelName Display the model name. See the DeviceManufacturerInfo Display the manufacturer information.
Page 85 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Device Control Items Setting Range Default Description DeviceGenCPVersionMajor 1 (Fixed) Major version of the GenCP protocol supported by the device. DeviceGenCPVersionMinor 0 (Fixed) Minor version of the GenCP protocol supported by the device.
Page 86 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ImageFormatControl Configure image format settings. Image Format Control Items Setting Range Default Description Display the maximum image width. GOX-2402MC-USB: 1936 GOX-3200MC-USB / GOX-3201MC-USB: 2064 SensorWidth...
Page 87 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Image Format Control Items Setting Range Default Description Set the image width. Width 96 (48)* ~ *The value in parentheses applies when BinningHorizontal [WidthMax - WidthMax Related Topic:...
Page 88 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Image Format Control Items Setting Range Default Description If set to 2, Pixels (50%) are thinned out horizontally. DecimationHorizontal 1: None Note: DecimationHorizontal and DecimationVertical...
Page 89 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Image Format Control Items Setting Range Default Description Set the pixel format. Mono Model 0x01080001: Mono8 (Default) 0x01100003: Mono10 0x010A0046: Mono10Packed 0x01100005: Mono12 0x010C0047: Mono12Packed...
Page 90 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB MultiROIControl Configure settings for Multi ROI. Related Topic: ROI Function (Multi ROI) Note: This function is supported only on GOX-3200MC-USB and GOX-5102MC-USB. Setting Multi ROI Control Items Default...
Page 91 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB AcquisitionControl Configure image capture settings. Acquisition Control Setting Range Default Description Items AcquisitionMode 0:SingleFrame 1:MultiFrame 2:Continuous Select the image capture mode. Related Topic: 2:Continuous Acquisition Control...
Page 92 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Acquisition Control Setting Range Default Description Items 0: Low 1: High 2: Software 10: PulseGenerator0 TriggerSource Select the trigger signal source. 14-17: UserOutput0-3 21: Line5 Opt In1 (Default) 26: Nand0 Out...
Page 93 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Acquisition Control Setting Range Default Description Items 0: Off (Default) Set whether to enable auto exposure. When set to ExposureAuto 1:Once Once, the automatic adjustment will be performed only...
Page 94 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Digital IO Control Setting Range Default Description Items Enable/disable polarity inversion for the selected input signal or output signal. 0: False (Default) LineInverter 1: True...
Page 95 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Digital IO Control Setting Range Default Description Items 0: Off (Default) 1: 10us 2: 100us 3: 500us 4: 1ms 5: 3ms 6: 5ms OptInFilterSelector...
Page 96 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB PulseGenerator Configure pulse generator settings. Related Topic: Pulse Generator Setting Pulse Generator Items Default Description Range Set the division value for the prescaler (12 bit) using PixelClock as the ClockPreScaler 1 ~ 4096 base clock.
Page 97 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Setting Pulse Generator Items Default Description Range Set the start point of the Low interval in milliseconds. When the counter reaches this value, the output will be 0.
Page 98 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB AnalogControl Configure analog control settings. Setting Analog Control Items Default Description Range GainSelector Select the gain to configure. 0: Analog All (Default) 1: Digital Red Related Topic:...
Page 99 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Setting Analog Control Items Default Description Range Operate AWB with all areas designated as photometry areas, True regardless of the individual enabled/disabled photometry area 0: False states configured in AWBAreaSelector.
Page 100 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB LUTControl Configure LUT settings. Related Topic: LUT (Lookup Table) LUT Control Items Setting Range Default Description 0: Red LUTSelector 1: Green 0: Red...
Page 101 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Auto Level Control Setting Range Default Description Items Select the area for which to configure ALCAreaEnable. 14: High 13: High 15: HighLeft 12: HighRight...
Page 102 ー AutoControlStatus 5: ExecutingASCandAWB Idle 6: ExecutingAGCandAWB 7: ExecutingASCandAGCandAWB 8: Convergent 9: ConditionError 255: Idle (Default) ImagingControl Configure other JAI functions. Imaging Control Items Setting Range Default Description VideoProcessBypassMode 0: Off 0: Off Enable/disable VideoProcessBypass mode. 1: On Related Topic:...
Page 103 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ShadingControl Configure shading correction settings. Related Topic: Shading Correction Setting Shading Control Items Default Description Range Select the shading correction method. 0: Flat Shading ShadingCorrectionMode (Default)
Page 104 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB BlemishControl Configure settings for JAI white blemish correction. Related Topic: BlemishCompensation Blemish Control Items Setting Range Default Description...
Page 105 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Blemish Control Items Setting Range Default Description -1 ~ Display the Y coordinate (vertical pixel position) of the target blemish BlemishCompensation (HeightMax - selected in BlemishCompensationIndex.
Page 106 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Sequencer Control Items Setting Range Default Description Set the OffsetX of the selected SequencerIndex. SequencerOffsetX Note: The setting range is the same as the OffsetX (ImageFormatControl).
Page 107 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB CounterAndTimerControl Configure counter settings. This camera only supports the counter functions. Related Topic: Counter and Timer Control Function Counter And Timer Setting Range Default...
Page 108 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB ChunkDataControl Configure Chunk Control settings. Related Topic: Chunk Data Function Setting Chunk Data Control Items Default Description Range 0: Off ChunkModeActive 0: Off...
Page 109 User Manual (Ver. 1.3) - Setting List (Feature Properties) GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Setting Chunk Data Control Items Default Description Range Displays the SequencerSet number currently set in TriggerSequenceMode or CommandSequencerMode. (1 is displayed in ChunkSequencerSetActive Normal Mode.) (SequencerControl) ChunkID: 0x0000200C...
Page 110 Miscellaneous Troubleshooting Check the following before requesting help. If the problem persists, contact your local JAI distributor. Power Supply and Connections Issue: The POWER/TRIG LED remains lit amber and does not turn green, even after power is supplied to the camera.
Page 111 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Specifications Item Description Scanning System Progressive scan, 1 tap Synchronization Internal Interface USB 3.0 Vision (Specification V1.0 RC4.02) Monochrome: Monochrome CMOS Image Sensor Color: Bayer color CMOS...
Page 112 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Item Description Model Name 8-bit 10-bit Packed 12-bit Packed 10/12-bit Unpacked GOX-2402MC-USB 162 fps 130 fps 108 fps 81 fps GOX-3200MC-USB 119 fps 95 fps 79 fps...
Page 113 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Item Description GOX-2402MC-USB: 8(4) ~ 1200(600), step 2(1) GOX-3200MC-USB: 8(4) ~ 1536(768), step 2(1) GOX-3201MC-USB: 8(4) ~ 1536(768), step 2(1) GOX-5102MC-USB: 8(4) ~ 2048(1024), step 2(1) Digital image output GOX-5103MC-USB: 8(4) ~ 2048(1024), step 2(1) format...
Page 114 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Item Description Timed TriggerWidth GOX-2402MC-USB GOX-3201MC-USB 14.73 μs* (Min) ~ 8sec. (Max) 14.73 μs* (Min) ~ ∞ sec. (Max) GOX-5103MC-USB Exposure Mode GOX-8901MC-USB 15.26 μs* (Min) ~ 8sec.
Page 115 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Item Description Input Range: DC +5V USB BUS Power Consumption: 4.2W typical (Default Setting/ 25°C Environment), 4.7 W (Max) Power Supply Input Range: DC +10V ~ +25V 6-pin Connector Consumption: 4.3 W typical (Default Setting/ 25 °C Environment), 4.9 W (Max) Lens Mount...
Page 116 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Cautions: The performance specifications given for this camera have been verified for the Operating Temperature range shown in the Specifications table. The camera may be able to perform outside of the specified temperature range, but such performance has not been verified and is therefore not guaranteed.
Page 117 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-2402M-USB, GOX-2402C-USB - 117 -...
Page 118 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-3200M-USB, GOX-3200C-USB - 118 -...
Page 119 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-3201M-USB, GOX-3201C-USB - 119 -...
Page 120 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-5102M-USB, GOX-5102C-USB - 120 -...
Page 121 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-5103M-USB, GOX-5103C-USB - 121 -...
Page 122 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-8901M-USB, GOX-8901C-USB - 122 -...
Page 123 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Spectral Response: GOX-12401M-USB, GOX-12401C-USB - 123 -...
Page 124 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Dimensions Notes: Dimensional tolerance: ± 0.3mm Unit: mm - 124 -...
Page 125 User Manual (Ver. 1.3) - Miscellaneous GOX-2402MC-USB | GOX-3200MC-USB | GOX-3201MC-USB | GOX-5102MC-USB | GOX-5103MC-USB | GOX-8901MC-USB | GOX-12401MC-USB Comparison of the Decibel Display and Multiplier Display Decibels [dB] Multipliers [X] Remarks 0.501 0.562 0.631 0.708 0.794 0.891 1.122 1.259 1.413 1.585 1.778...
Page 126 70.795 79.433 89.125 112.202 125.893 User's Record Camera type: Go-X Series Global Shutter USB3 Vision interface Model name: …………… Revision: …………… Serial No: …………… Firmware version: …………… For camera revision history, please contact your local JAI distributor. - 126 -...
