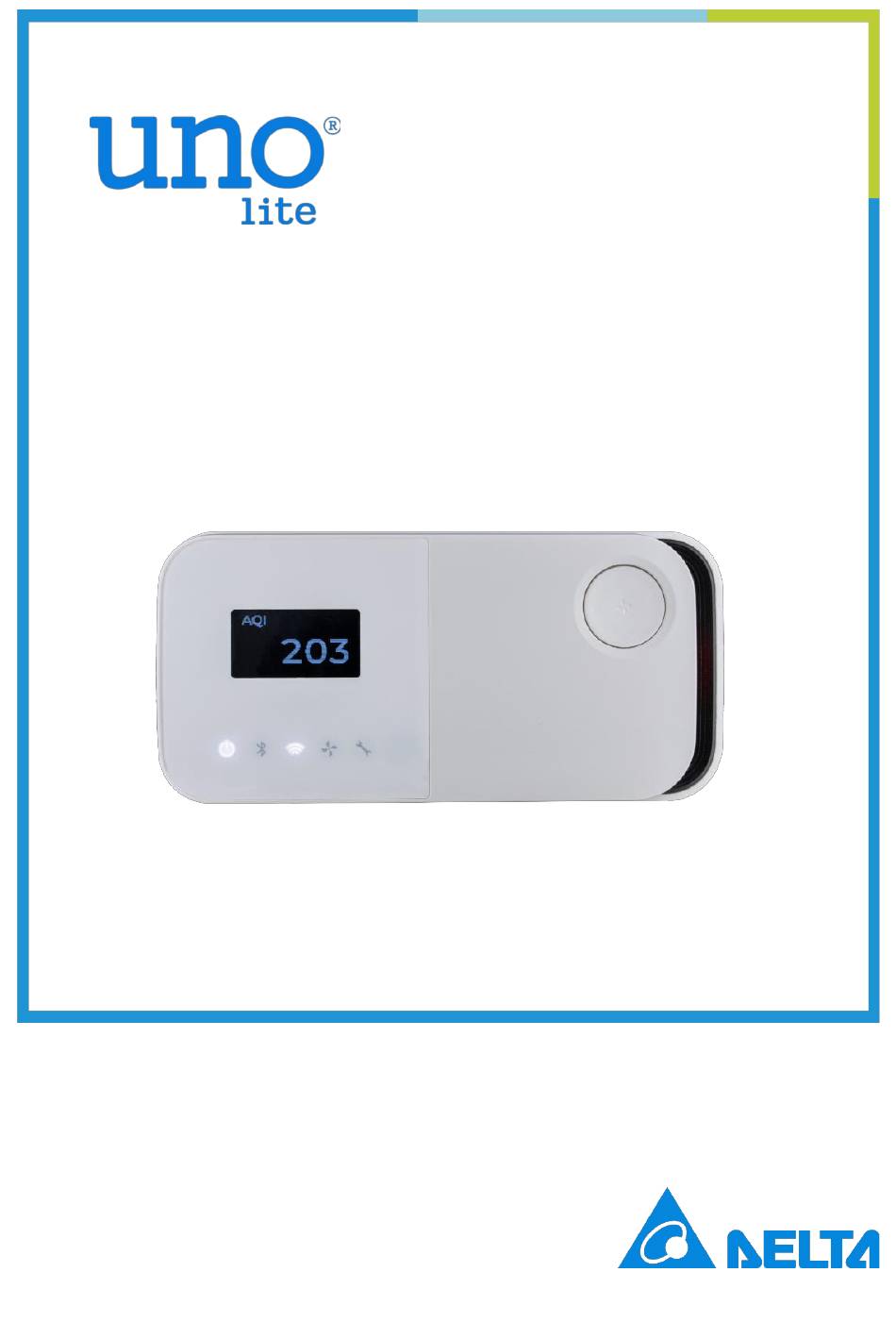

- Page 1 Quick Settings Manual Model: UNO-LWD Version: 0.1b...
- Page 2 Reversion Date Version Description 2024/ 10 / 09 0.1b Initial What’s Included UNOlite Surface / Drywall mount Electrical box mount Drywall screws Quick start guide and anchors (1 pairs)
- Page 3 Device Introduction ① Power LED ⑦ RS-485 ② Status LED ⑧ Direct Wiring (12-24VDC or 24VAC) ③ ⑨ Switch Button DIP Switch ④ IAQ RGB LED ⑩ Power Adapter Hole ⑤ Hardware Reset ⑪ ⑥ Factory Reset Button More information can be in UNO Resources Center https://isdweb.deltaww.com/resources.
- Page 4 Quick Settings Turn on Bluetooth Open App and click Click [Bind] and allow sharing UNO device. press physical location permission. button on the UNO Install UNO IAO device to bind. App.
- Page 5 Click WiFi icon on 7. Click [Allow While The iPhone needs to the bottom-left of the Using APP]. connect to a nearby WiFi scanned device to set WiFi. 10. Observe IAQ index historical data and trend. After the WiFi Input WiFi password connected, any sensor and click [Send], and then card can be clicked to...
- Page 6 LED Description IAQ LED Indicator: Standard operation Description Breathing light BLUE Device is booting Breathing light GREEN Indoor air quality is good Breathing light YELLOW Indoor air quality is moderate Breathing light RED Indoor air quality is unhealthy Breathing light PURPLE I Indoor air quality is very unhealthy Steady OFF Device is in DIM mode...
- Page 7 Installation The UNOlite can be mounted on a concrete block wall, drywall, ceiling, or to an electrical box. For detailed instructions on the installation, power, and connectivity setup, please visit our support center website at https://isdweb.deltaww.com/resources/ or scan the QR code below.
- Page 8 Warranty Delta provides a 1-year limited manufacturer warranty on the UNOlite. To obtain a copy of the warranty for this product, please visit https://isdweb.deltaww.com/resources/warranty.html or scan the QR code below Technique Support For frequently asked questions about the UNO series sensors, please visit the FAQ webpage at https://isdweb.deltaww.com/resources/faq/index.html...
