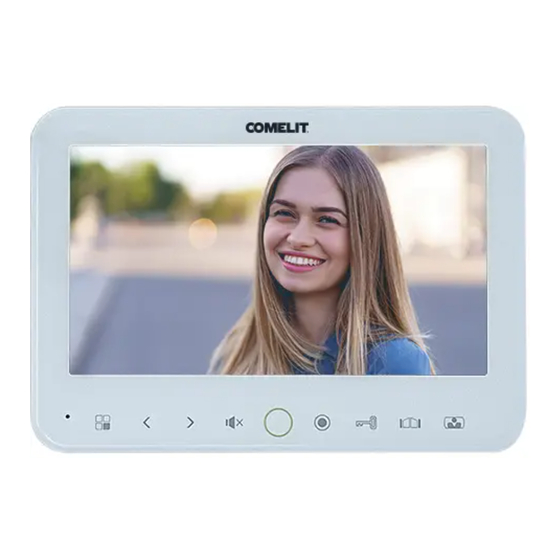

Comelit G116V Technical Manual

Door entry monitor

Download this manual

art.

G116V

G116A

T E C H N I C A L M A N U A L

Door entry monitor art.

G116V

Description

1. Slot for MicroSD card (not supplied)

2. 7" display

3. Microphone

4. Buttons and LEDs

MENU button

Button for scrolling through values,

decreasing values and adjusting

the ringtone volume

Button for scrolling through values,

increasing values and setting the

ringtone

Silent mode button

Silent mode LED indicator

Intercom call button

Key button

2nd relay control button

Start/end communication and Self

Activation

Installation

×2

Need help?

Do you have a question about the G116V and is the answer not in the manual?

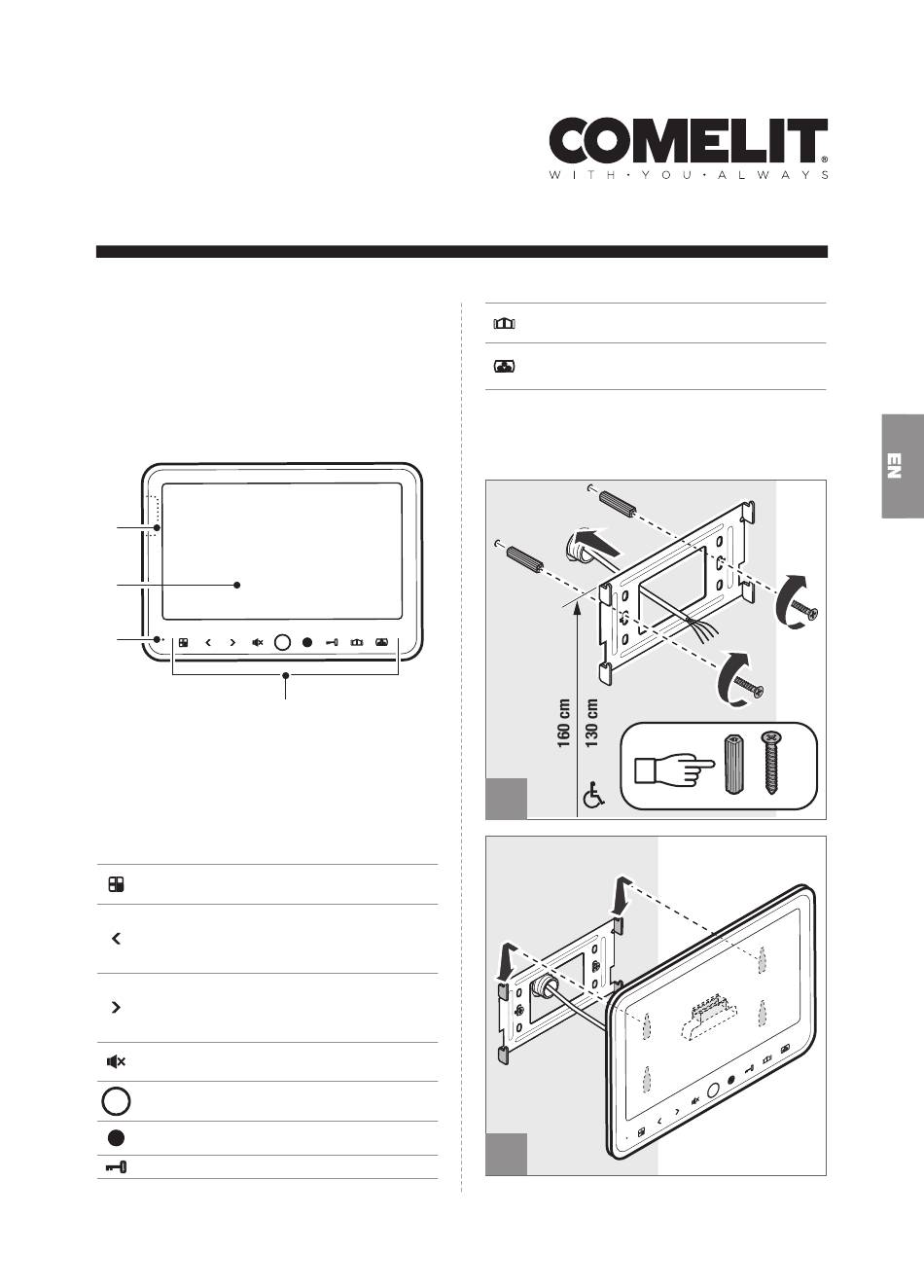

Page 1 G116V G116A T E C H N I C A L M A N U A L T E C H N I C A L M A N U A L Door entry monitor art. 2nd relay control button...
Page 2 Settings SETTINGS MENU OPTIONS Brightness control MENU NAVIGATION Contrast adjustment 1. While the door entry monitor is in Colour adjustment standby mode, press and then to access the main menu. Set date » The following window will appear. Set time Delete images Save images to MicroSD Exit menu...
Page 3 Power supply unit art. Installation G116A ×2 Description Red Black 1. NL mains voltage input 100-240 VAC/50-60 Hz 2. +- output 15 VDC/2 A TECHNICAL SPECIFICATIONS Operating temperature -10 to 50 (°C) Operating humidity (max. RH) 85 max. (%) Appliance exclusively for indoor use.
Page 4 WARNING indications and warnings contained in this manual / instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this manual / instruction sheet at any • This Comelit product is designed and manufactured for use time and without prior notice.
