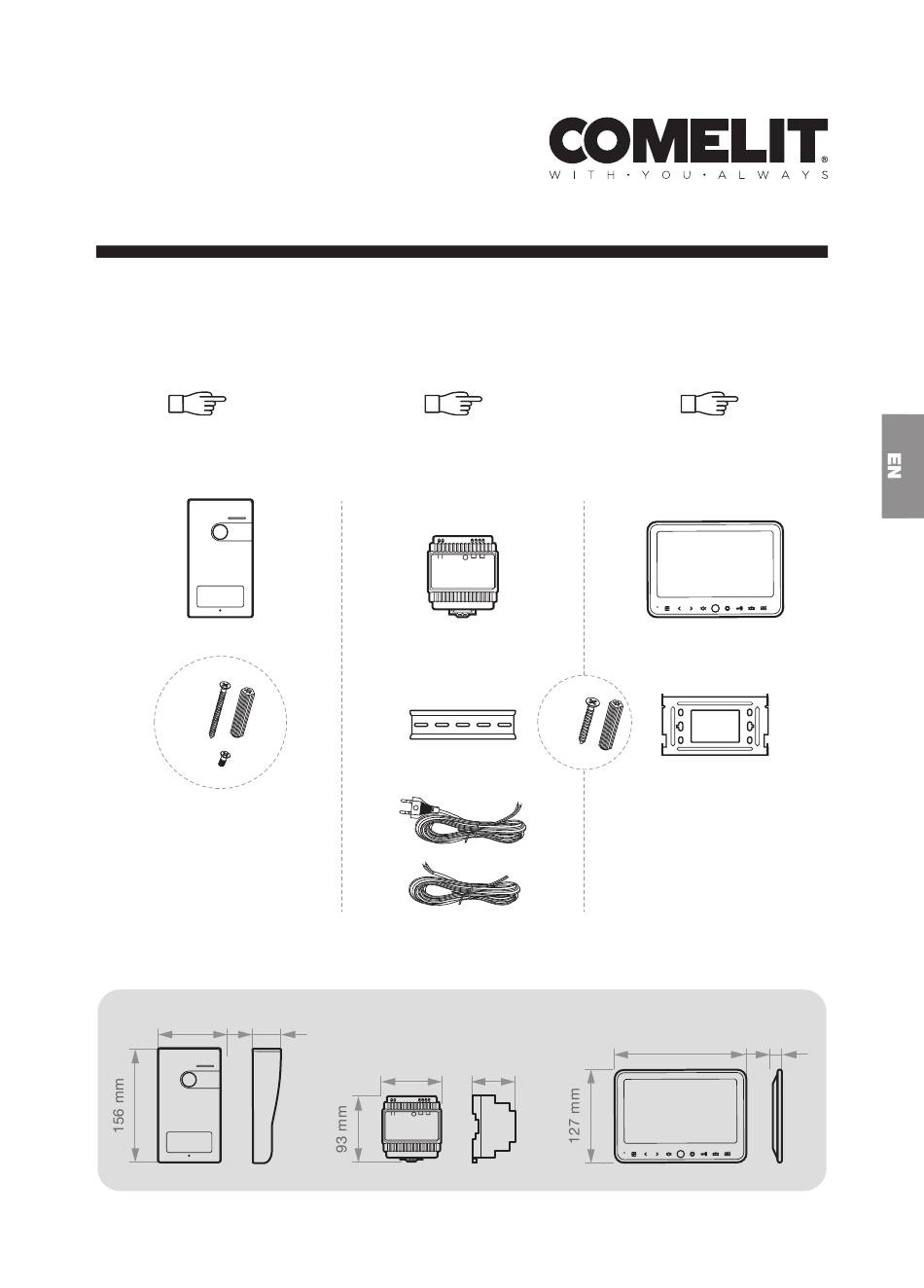

- Page 1 7 Plus Kit G115K T E C H N I C A L M A N U A L T E C H N I C A L M A N U A L Entrance panel Power supply unit Door entry monitor 4×...
-
Page 2: Entrance Panel
Entrance panel Description 52° 50 cm 52° 4-7 Sec. 1 Sec. 50 cm 1. Rain shield 2. Camera 52° 3. Loudspeaker 4. Infrared LEDs 5. Call button 6. Microphone 7. Twilight sensor 50 cm 8. Dip switch for setting the door lock time 109 cm The camera should not be installed... - Page 3 Installation Replacing nameplates ×4...
- Page 4 Power supply unit art. G116A Description Installation ×2 Red Black 1. NL mains voltage input 100-240 VAC/50-60 Hz 2. +- output 15 VDC/2 A TECHNICAL SPECIFICATIONS Operating temperature -10 to 50 (°C) Operating humidity (max. RH) 85 max. (%) Appliance exclusively for indoor use.

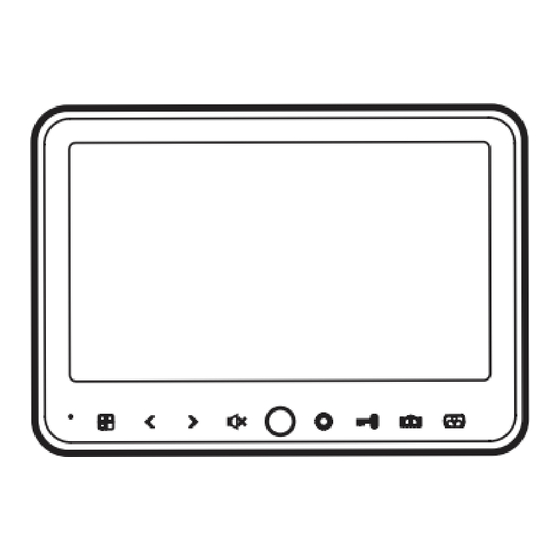

- Page 5 Door entry monitor art. G116V Description Installation ×2 1. Slot for MicroSD card (not supplied) 2. 7” display 3. Microphone 4. Buttons and LEDs MENU button Button for scrolling through values, decreasing values and adjusting the ringtone volume Button for scrolling through values, increasing values and setting the ringtone Silent mode button...
-
Page 6: Menu Navigation
Settings SETTINGS MENU OPTIONS Brightness control MENU NAVIGATION Contrast adjustment 1. While the door entry monitor is in Colour adjustment standby mode, press and then to access the main menu. Set date » The following window will appear. Set time Delete images Save images to MicroSD Exit menu... - Page 7 Using the Door entry monitor INTERCOM √ While the system is in standby and with 2nd door entry monitor. CALL f Press to make the intercom call. When a visitor presses the call button on the entrance panel, the door entry »...
-
Page 8: Wiring Diagrams
Wiring diagrams Power supply unit Door entry monitor G116A G116V 110-240V~ 8~12VDC 12/24 VAC/VDC Entrance panel... -
Page 9: Connection Distances
Door entry monitor G116A G116V 110-240V~ Power supply unit Door entry monitor G116A G116V 110-240V~ Entrance panel Connection distances Comelit Art. 4577/4579 1 mm² 0.28 mm² (Ø 1.2 mm (Ø 0.6 mm AWG 17) AWG 23) 30 m 10 m A MAX... - Page 10 Audio specifications WARNING Technologies implemented Half-duplex Camera specifications • This Comelit product is designed and manufactured for use in the creation of audio and video communication systems in Sensor type 1/3’’ CMOS residential, commercial, industrial and public buildings. Angle of view (HxV- °) 95 x 52 •...
