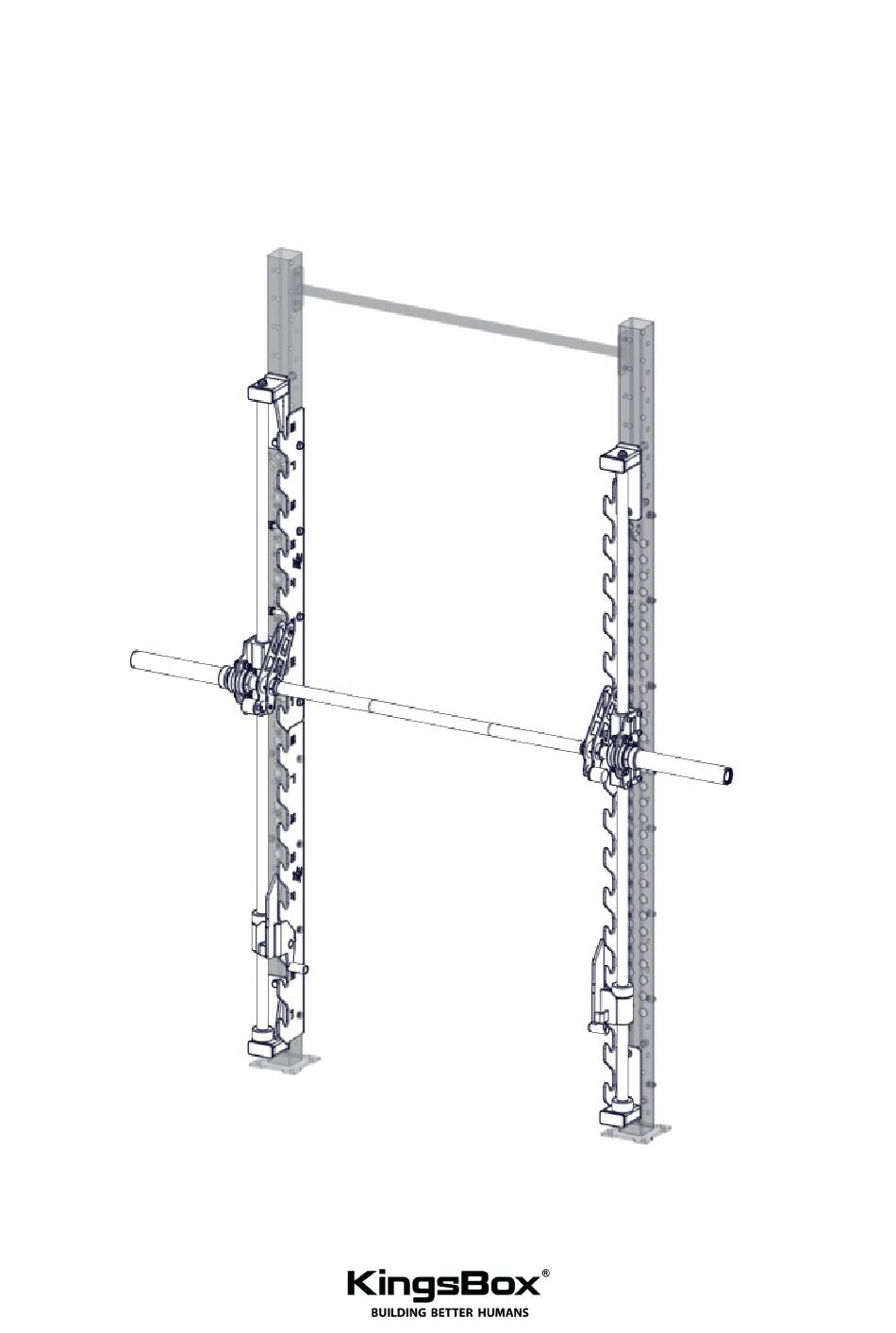

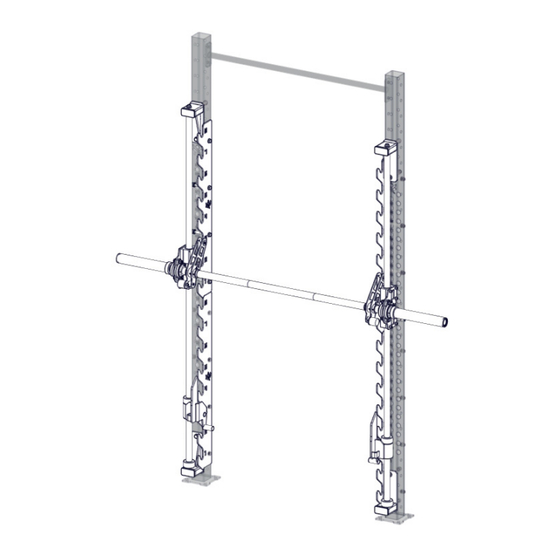

- Page 1 Smith Machine Rig Add-On (KB05MI-176)
- Page 2 Manufacturer: Kingsbox d.o.o. Bazoviška 7a, 6210 Sežana Slovenia Customer service: Write us on info@kingsbox.com or send us a message through our website at www.kingsbox.com/help Usage class: Indoor use - Studio (S) Designed in compliance with: ISO 20957 Gym owner shall provide the user with all the warnings and instructions. The training equipment shall only be used in areas where access, supervision and control is specificially regulated by the owner.
- Page 3 Assembly elements: Position 1 Position 2 Position 3 Position 4 Smith Salmon Ladder LH (2x) Safety Blocker LH (1x) Safety Blocker RH (1x) Guide Holder 1 (2x) Position 5 Position 6 Position 7 Position 8 Guide Holder 2 (2x) Smith Salmon Ladder RH (2x) Rubber pad (4x) Guide fi30 (2x) Position 9...
- Page 4 Tools needed: Allen Key 3mm Wrench 19...
- Page 5 Assembly instruction:...
- Page 10 Instructions for use: Free area around the training equipment should be >0,6m than the training area in the direction from which the equipment is accessed. Max. loading/ training mass:...
- Page 11 Instructions for use: - Secure the weight plates with locking collars. - Sleeve diameter of the bar: 50mm (to be used with olympic weight plates). - DROP STOP adjustment:...
- Page 12 Maintenance: - Wipe and lubricate the guides regularly. Apply lubricating oil to a clean rag and wipe the guides. Do not spray lubricanting oil directly to the guides, to avoid applying excessive amount and thus keep the machine clean. - Check the machine for loose screws regularly and tighten them if needed. Pay extra attention to the screws around bearing&hook assembly, especially in the marked areas:...
