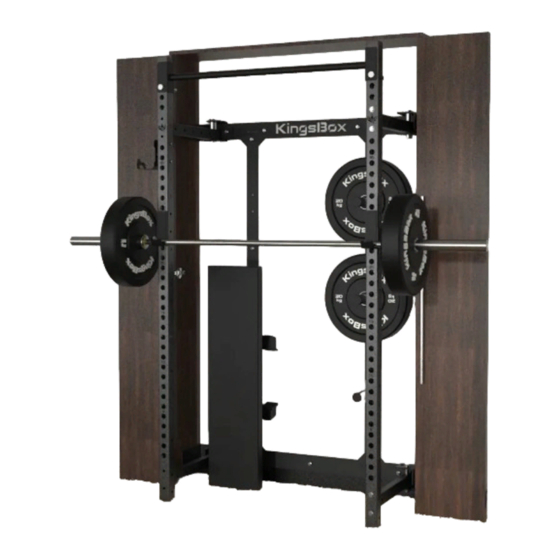

  • Page 1 KingsBox Closet Gym I.
  • Page 2 ATTENZIONE! Se la struttura non viene fissata a terra e/o al muro, puo’ rib-altarsi e/o provocare danni a persone o oggetti in immediata vicinnanza. I bulloni per il fissaggio del rig a muro e/o al pavimento non sono inclusi nel pacco, in quanto per diversi tipi di muro 7 pavi- men-tazione bisogna utilizzare diversi tipi di bulloni d’ancoraggio.
  • Page 3 Assembly elements: Position 1 Position 2 Position 3 Closet Upright Closet TNT Arm Closet WMR Hinge 2250 Position 6 Position 4 Position 5 Rubber Buffer Typ RH Bumper Stacker Pin Bolt fi 25 D 15 mm Position 9 Position 7 Position 8 Barbell Holder Closet Back Carrier...
  • Page 4 Assembly elements: Position 10 Position 11 Position 12 Closet Side Frame Closet Upper Frame Closet Lower Frame Position 13 Position 14 Position 15 Levelling Leg M8x30 Closet Side Plank Closet Upper Plank Position A Position B Position C M12x90 M12 Washer M12 Nut...
  • Page 5 Assembly elements: Position D Position E Position F M6 Nuts M2x130 M10x16 Position G Position H Position I Concrete Screw Torban M12x90 M8x20 M12 (not included) Position J Position K Position L Concrete Screw Spax Screw 3,5x35 Spax Screw 3,5x15 M10 (not included)
  • Page 6 Assembly instruction: STEP: 1 STEP: 2...
  • Page 7 Assembly instruction: STEP: 3 STEP: 4...
  • Page 8 Assembly instruction: STEP: 5 STEP: 6...
  • Page 9 Assembly instruction: STEP: 7 STEP: 8 30cm 20cm...
  • Page 10 Assembly instruction: STEP: 9 Foldable Flat Bench STEP: 10...
  • Page 11 Assembly instruction: STEP: 11 STEP: 12...
  • Page 12 Assembly instruction: STEP: 13 STEP: 14...
  • Page 13 Assembly instruction: STEP: 15 STEP: 16...
  • Page 14 Assembly instruction: STEP: 17 STEP: 18...
  • Page 15 Assembly instruction: Repeat on the right side with STEP: 19 element Closet Door R #17. STEP: 20...
