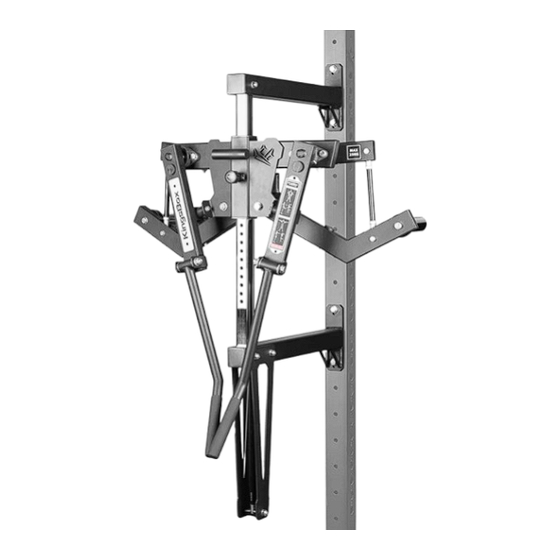

- Page 1 Mighty Oliphant (Lateral Raise) (KB05MI-136)
- Page 2 Manufacturer: Kingsbox d.o.o. Partizanska 129, 6210 Sežana Slovenia Customer service: Write us on info@kingsbox.com or send us a message through our website at www.kingsbox.com/help Usage class: Studio (S) Designed in compliance with: ISO 20957 Warnings: - Freestanding equipment shall be installed on a stable and levelled base - All equipment designed with anchoring/attachement holes (e.g.
- Page 3 WARNING! a) Mighty Oliphant (Lateral Raise) - Rig installation: The structure (rig/rack) onto which this equipment is attached MUST be securely anchored into the ground, otherwise a high risk of structure overturning exists. a) Mighty Oliphant (Lateral Raise) - Wall installation:...
- Page 4 Assembly elements: Position 1 Position 2 Position 3 Height Adj. Trolley Front Arm RH (1x) Front Arm LH (1x) (1x) Position 4 Position 5 Position 6 Pull Arm (2x) Weight Arm RH (1x) Weight Arm LH (1x) Position 7 Position 8 Position 9 Arm Bottom (1x) Arm Top (1x)
- Page 5 Assembly elements: Position 10 Position 11 Position 12 Bearing PCJT 20 Side plate (2x) Gas spring (1x) (4x) Position 13 Position 14 Position 15 Weight Sleeve fi50 Distance Sleeve Distance sleeve (2x) fi20x170 (2x) fi20x60 (2x) Position 16 Position 17 Position 18 Eye Bearing M12 Rubber Magnet (4x)
- Page 6 Assembly elements: Position 19 Position 20 Position 21 Distance Sleeve Thread Rod M12 Handle (2x) fi16x150 (2x) (2x) Position 22 Position 23 Position 24 Spacer fi48 Rubbery Resize Plastic (2x) Rubber Handle (2x) (2x) Position 25 Position 26 Position 27 Spacer fi16 (2x) Plug 60x30 (8x) Plug 60x60 (2x)
- Page 7 Assembly elements: Position 28 Position 29 Position 30 M5x35 (2x) M5x65 (2x) M8x10 (2x) Position 31 Position 32 Position 33 M8x45 (4x) M10x80 (7x) M10x90 (3x) Position 34 Position 35 Position 36 M12x90 (2x) M12x110 (4x) M12x200 (2x)
- Page 8 Assembly elements: Position 37 Position 38 Position 39 M5 Washer (4x) M8 Washer (12x) M8 Nut (6x) Position 40 Position 41 Position 42 M10 Washer (18x) M10 Nut (10x) M12 Washer (16x) Position 43 Position 44 Position 45 M12 Nut (8x) Plug fi50 (2x) Position Pin (1x)
- Page 9 Assembly elements: Position 46 Position 47 Position 48 Distance Bushing Copper Washer M10x30 (2x) (8x) fi20x1,5 (4x)
-
Page 10: Tools Needed
Tools needed: Wrench 19 Wrench 17 Wrench 13 Allen Key 3 Plastic Hammer... -
Page 11: Assembly Instruction
Assembly instruction: STEP: 1 STEP: 2 - installation height... - Page 12 Assembly instruction: STEP: 3 STEP: 4...
- Page 13 Assembly instruction: STEP: 5 STEP: 6...
- Page 14 Assembly instruction: STEP: 6 STEP: 7...
- Page 15 Assembly instruction: STEP: 8 STEP: 9...
- Page 16 Assembly instruction: STEP: 10 STEP: 11...
- Page 17 Assembly instruction: STEP: 12 STEP: 13...
- Page 18 Assembly instruction: STEP: 14 - finished Maintenance: - Check regularly for any loosen screws and fasten them if needed - If during operation any squeaking noises occur, dis- sasemble and clean the elements. Then apply silicon grease to the bearing surface.
- Page 19 Note: Free area around the training equipment should be >0,6m than the training area in the direction from which the equipment is accessed. Max. loading / training mass:...
- Page 20 Note: Start position (for lateral raise): End position (for lateral raise):...
