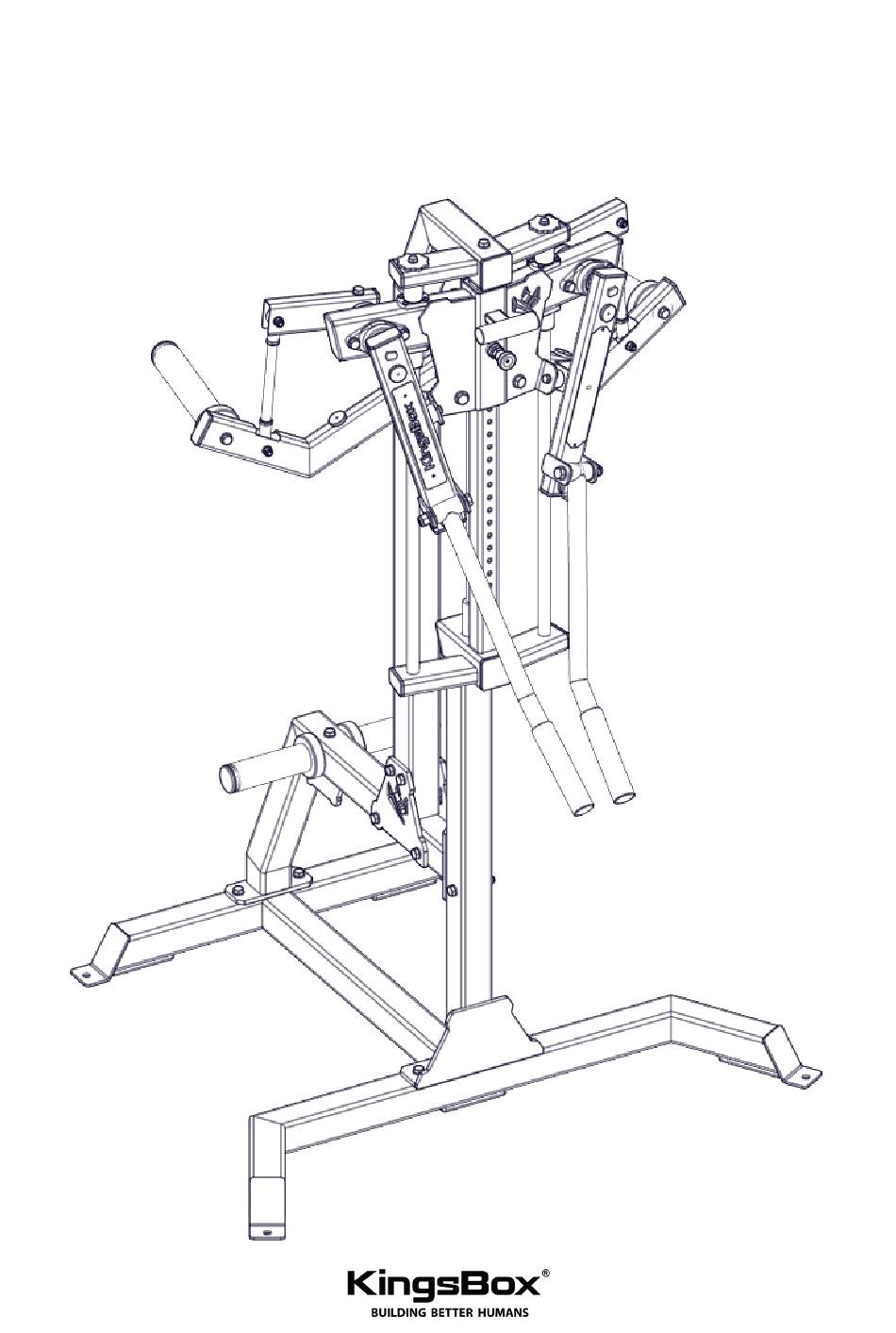

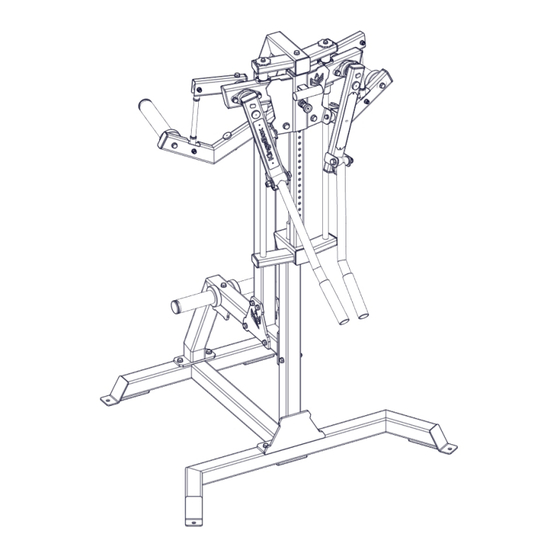

- Page 1 Mighty Oliphant (Freestanding Lateral Raise) (KB06MI-119)
- Page 2 Manufacturer: Kingsbox d.o.o. Bazoviška 7a, 6210 Sežana Slovenia Customer service: Write us on info@kingsbox.com or send us a message through our website at www.kingsbox.com/help Usage class: Indoor use - Studio (S) Designed in compliance with: ISO 20957 Gym owner shall provide the user with all the warnings and instructions. The training equipment shall only be used in areas where access, supervision and control is specificially regulated by the owner.
- Page 3 Assembly elements: Position 1 Position 2 Position 3 Position 4 Height Adj. Trolley (1x) Front Arm RH (1x) Front Arm LH (1x) Pull Arm (2x) Position 5 Position 6 Position 7 Position 8 Weight Arm RH (1x) Weight Arm LH (1x) Frame Front (1x) Frame Back (1x) Position 9...
- Page 4 Assembly elements: Position 21 Position 22 Position 23 Position 24 Handle (2x) Rubber Spacer (4x) Frame leg (1x) Rubber Handle (2x) Position 25 Position 26 Position 27 Position 28 Storage Sleeve (1x) Plug 60x30 (12x) Plug 60x60 (2x) M5x35 (2x) Position 29 Position 30 Position 31...
- Page 5 Assembly elements: Position 41 Position 42 Position 43 Position 44 M10 Nut (11x) M12 Washer (8x) M12 Nut (4x) Plug fi50 (4x) Position 45 Position 46 Position 47 Position 48 Index plunger (1x) M10x30 (5x) Distance Bushing (8x) Copper Washer fi20x1,5 (4x) Position 49 Position 50 Position 51...
-
Page 6: Tools Needed
Tools needed: Wrench 19 Wrench 17 Wrench 13 Plastic Hammer Allen Key 3mm... -
Page 7: Assembly Instruction
Assembly instruction:... - Page 11 - further steps are shared with the Add-on version of Mighty Oliphant...
- Page 16 Finished Machine footprint:...
- Page 17 Instructions for use: Free area around the training equipment should be >0,6m than the training area in the direction from which the equipment is accessed. Max. loading/ training mass:...
- Page 18 Instructions for use: For correct adjustment and ways of using the machine, please see the video instructions by scan- ning the QR code:...
-
Page 19: Maintenance
- contact Kingsbox sales to arrange a new gas spring for you. - Wipe and lubricate the guides regularly. Apply lubricating oil to a clean rag and wipe the guides.
