- Page 1 Hardware Manual NIO2xx audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ audac.eu. REV-1.1...
- Page 3 Table of contents Introduction Networked I/O expander Dante /AES67 ............05 Precautions Chapter 1 Connections and connectors .
- Page 4 NIO2xx - Hardware Manual...
- Page 5 (+48 V DC) can be applied to the input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products.
- Page 6 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET.
- Page 7 NIO2xx - Hardware Manual...
- Page 8 Chapter 1 Connections CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3-Pin Terminal block: For balanced line output connections. For unbalanced line input connections. NIO2xx - Hardware Manual...
- Page 9 RJ45 (Network, PoE) Network connections Pin 1 White-Orange Pin 2 Orange Pin 3 White-Green Pin 4 Blue Pin 5 White-Blue Pin 6 Green Pin 7 White-Brown Pin 8 Brown Ethernet (PoE): Used for connecting the NIO series in your Ethernet network with PoE (Power over Ethernet). The NIO series complies with the IEEE 802.3 af/at standard, which allows IP-based terminals to receive power, in parallel to data, over the existing CAT-5 Ethernet infrastructure without the need to make any modifi- cations in it.

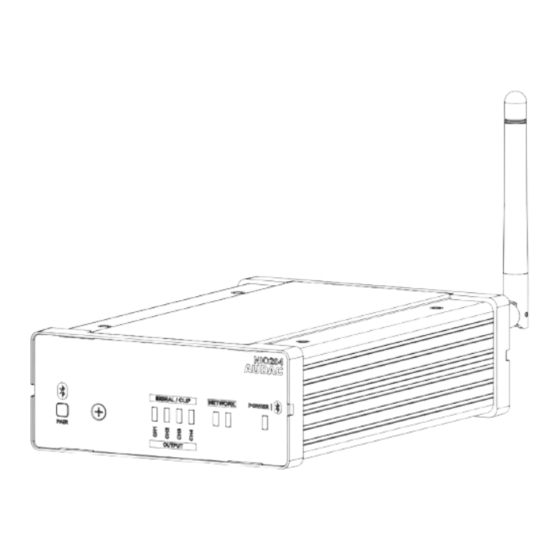

- Page 10 Chapter 2 Overview front panel The NIO2xx series comes in a compact convection cooled enclosure. The front panel of each NIO2xx series product has a power and Bluetooth connection LED, network connection status LEDs, Bluetooth pairing button and signal/clip indicator LEDs. Signal/clip LEDs can be for input, output or both based on the model.
- Page 11 Overview rear panel The rear of the NIO2xx series contains audio input and output 3-pin terminal block connections, an ethernet connection port which is used to connect the expanders to the RJ45 connector, 3-pin terminal block bluetooth pair contact and bluetooth anttena . As the NIO2xx series are Dante™/AES67 networked audio in &...
- Page 12 Bluetooth Pairing Contact When the NIO2xxx is installed in something like a locked rack, it may be difficult to enable Bluetooth pairing for new devices using the front button. For this purpose, an external pairing connector can be connected that contains the combination LED and button.
- Page 13 3) Connecting the Bluetooth The NIO2xx series has Bluetooth, and pairing can be enabled in various ways. Using the PAIR button or establising a contact on BT PAIR terminal or using Audac Touch enables Bluetooth pairing when LED blink in blue color.
- Page 14 2) NIO2xx series settings Once the Dante routing settings are made through the Dante Controller, other settings of the NIO2xx series expanders can be configured using the Audac Touch platform, which can be freely downloaded and operated from various platforms. This is very intuitive to be operated and automatically discovers all available compatible products in your network.
- Page 15 Compatible devices All Dante compatible devices *Input and output sensitivity levels defined are referred to a -13 dB FS (Full Scale) level, which is consequent through digital Audac devices and can be digitally gained when interfacing with 3rd party equipment. ...
- Page 16 Discover more on audac.eu...
