- Page 1 User manual DMP42 audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. DMP42 - User manual...
-
Page 3: Table Of Contents
Table of contents Introduction Precautions Chapter 1 Connections and connectors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 08 Chapter 2 Overview DMP42 �... - Page 4 DMP42 - User manual...
-
Page 5: Introduction
Introduction SourceCon™ DAB/DAB+ & FM tuner module The DMP42 is a professional DAB/DAB+ & FM tuner featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted to a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration. -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. - Page 7 CAUTION - SERVICING This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) EC DECLARATION OF CONFORMITY This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC), 2014/35/EU (LVD) &...
-
Page 8: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3-Pin Terminal block: For balanced signal output connections Left: Signal - Center: Signal +... -
Page 9: Overview Dmp42

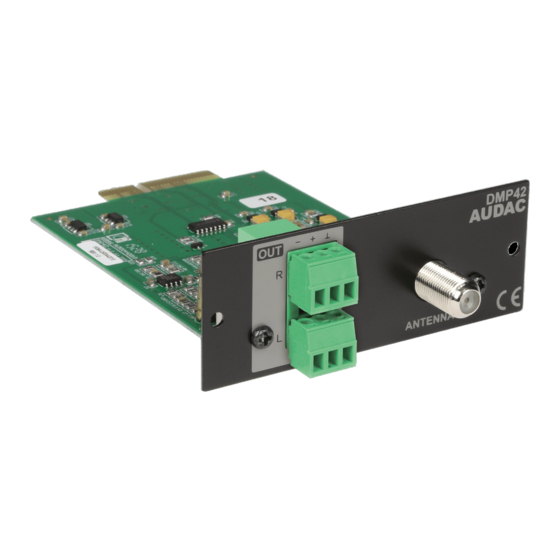

Chapter 2 Overview DMP42 The DMP42 is a SourceCon™ compatible module featuring an (internal) board-edge connector which carries all signals for getting it connected to any supporting main unit. All external in & output connections shall be made using the available connectors on the panel. 1) Balanced stereo line output: The balanced stereo line output is implemented using two 3-pin terminal block connectors. - Page 10 3) Antenna power supply jumper (5V): An internal jumper enables a 5 Volts supply on the antenna connection for powering active antennas. Active antenna’s include a small signal amplifier, improving reception and signal transmission to the receiver. In default configuration the antenna power supply is disabled. Enabling is done by changing the position of the corresponding jumper as indicated below.
-
Page 11: Chapter 3 011
Chapter 3 Using the DMP42 Since the DMP42 is a SourceCon™ module, it can be combined with a variation of supporting main units. The operation and configuration interface might be different of the unit where installed, however the offered functionality is identical. Some devices will support control and configuration through a front panel graphical control interface on a display, while others are also supporting web-control. - Page 12 DAB radio station selection The currently playing DAB radio station (if switched to DAB DAB/FM tuner mode) is selected by pressing the (tuning down) and (tuning up) buttons. When pressed, it will automatically switch DAB VRT DAB+ to the next available station. Editors - An end has a start The currently playing station name is shown, together with ch 18/88...
- Page 13 Module screen The settings menu for DMP42 can be loaded by rotating the rotary dial until the (settings) symbol is highlighted in blue colour. When highlighted, confirm to proceed to the settings menu by single pressing the rotary dial. Output gain; The gain can be adjusted within a range of +8 dB and -32 DMP40 Settings dB, allowing optimization of the output level according to the...
- Page 14 DAB search: Clears all stored DAB channels from the memory and scans the entire bandwidth for available DAB/DAB+ channels. DAB search is automatically performed when initially switched to DAB mode, but shall be re-done when any change to available channels or position of the receiver is made. Factory reset: Factory reset will recall all settings to factory defaults and all previously made settings and configurations will be lost.
- Page 15 Chapter 4 Installing the DMP42 NOTE Before installing the DMP42 to any SourceCon™ compatible device, make sure the power is switched off. Malfunctions or electrical shocks may occur otherwise. Step 1: Make sure that the slot where to the module should be installed is open and ready for installation. Depending of the main unit, some module slots will be covered by blind panels when delivered.
- Page 16 Step 4: Some resistance might occur when the module’s board edge connector reaches the connection counterpart on the main board. Gently push the module all the way into the slot to ensure that the contacts are correctly inserted. The module is well inserted when its connection panel touches the metal chassis of the main device where inserted to.
- Page 17 Technical specifications Connection SourceCon™ interface card slot F-type antenna connection (75 Ω) Inputs Tuning range (-10 dB) 87.5 ~ 108 MHz Sensitivity (1W/1m) -108 dBm Signal / noise 52 dB THD+N (@ 1 kHz) 0.22% Frequency response (± 3 dB) 30 Hz - 12.5 kHz Crosstalk (@ 1 kHz)
