- Page 1 OPT2 Installation Manual www.audac.eu...

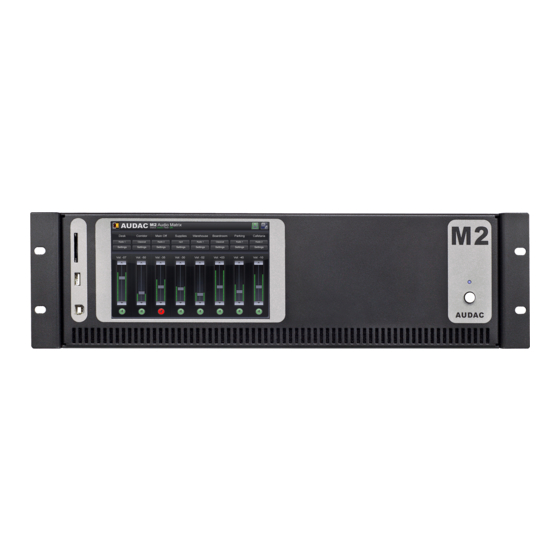

- Page 2 Introduction Matrix Fiber Interconnection module The OPT2 is a fiber interconnection interface for the R2 and M2 Digital Multi-Zone & Multi-Media Matrix Systems. This module makes it possible to transfer up to 16 digital audio signals over one single fiber conductor (8 stereo channels) for covering large distances.
- Page 3 Instructions Mounting and connecting Step 1: Make sure the M2/R2 power inlet is disconnected from the mains power. Step 2: Open the M2/R2 housing by carefully removing the screws from the top panel of the device. Step 3: Remove the Powersupply. In case the unit has a powersupply mounted on a fixing plate, u better remove the complete unit by removing the 4 screws from the bottom.
- Page 4 . Place the powersupply aside to make room for installing the OPT2 module. Step 4: Connect one side of the supplied flatcable to the connector P1 of the DSP board. Note the correct polarity. Pin 1...
- Page 5 Step 5: Connect the other side of the flatcable to the OPT2 module. In case there is a flatcable supplied with 2 extra connectors, please use the connector nearest by the DSP! Reassure the polarity of both connections! Pin 1...
- Page 6 Step 7: Fix the OPT2 board by tighten the nuts. Ensure not to over tighten the nuts. Step 8: Replace the Powersupply you removed in step 3.
- Page 7 Step 9: Finally, place the OPT2 option label at the back of the unit at the designated place. OPT2 option 1 40 8 0 306400001 S/N:14080306400001 Step 10: The OPT2 module is now properly installed. Close the housing, power up the system...
