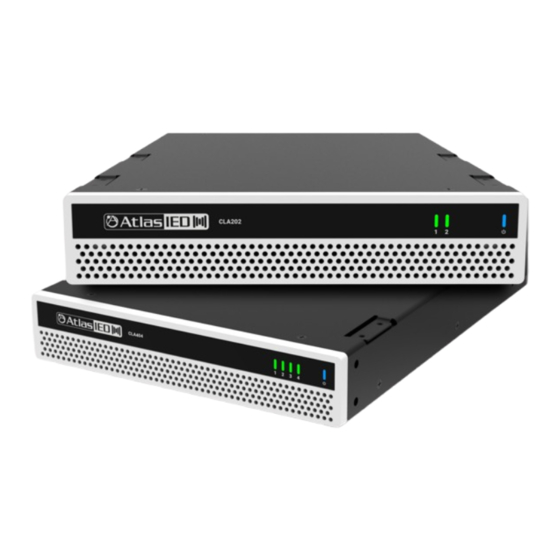

CLA SERIES

COMMERCIAL LITE AMPLIFIERS

CLA804 / CLA404 / CLA802 / CLA402 / CLA202

OWNER'S MANUAL

1601 JACK MCKAY BLVD.

ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: (800) 876-3333

SUPPORT@ATLASIED.COM

AtlasIED.com

Need help?

Do you have a question about the CLA802 and is the answer not in the manual?

Questions and answers

Summary of Contents for AtlasIED CLA802

Page 1 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL 1601 JACK MCKAY BLVD. 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 TELEPHONE: (800) 876-3333 AtlasIED.com AtlasIED.com ENNIS, TEXAS 75119 U.S.A. ENNIS, TEXAS 75119 U.S.A.
Page 2 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL TABLE OF CONTENTS Introduction ...................... 3 Key Features .....................3 Important Safety Instructions ..............4 Front Panel Description .................6 Rear Panel Description ...................7 Cabling & Placement of the Amplifier............13 CLA Amplifier Operation ................
Page 3 KEY F E ATUR E S: • CLA404 / CLA804 Four Amplifier Channels Thank you for your purchase of the AtlasIED CLA Series amplifier. The CLA Series is a high-power amplifier designed for versatility, suitable for • CLA202 / CLA402 / CLA802 Two Amplifier Channels both commercial 25V/70V/100V distributed systems and professional •...
Page 4 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL IMP ORTANT SA F ETY I N STRU CTI O N S CAUTI ON - S HO C K R I S K 1. Read these instructions..
Page 5 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet I N U S E: and contact AtlasIED. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...
Page 6 E. Red (Steady) - The LED will be steady red when the amp channel is in protect mode. Remove the speaker load from the amp channel, and if the LED turns off, look for a short in the speaker line. If the LED continues to illuminate and the speaker load is removed from the amp channel, contact AtlasIED Tech Support.
Page 7 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL REAR PANEL AC MAINS INPUT The CLA Series is equipped with a global, wide-range AC Mains power supply that functions on 100V-120V and 220V-240V 50/60Hz power sources. The amplifiers feature an IEC-600320-C14 receptacle and come with a detachable 1.8-meter 14-gauge NEMA 5-15 power cord.
Page 8 (Fully Counterclockwise) the +10V and the G are reversed. Please ensure that the wiring is done using proper techniques and adhere to safety guidelines. If in doubt, consult the user manual or contact AtlasIED support for further assistance.
Page 9 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL REAR PANEL - (CO NTI NUED ) LOUDSPEAKER CONNECTION The CLA Series amplifiers are equipped with a locking Euro Block type connector. Please follow these guidelines when working with the connector, keeping safety in mind: A.
Page 10 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL REAR PANEL - (CO NT I N UE D ) AMPLIFIER LOAD CONFIGURATION SWITCHES - IMPORTANT! The CLA Amp series provides flexibility in configuring load requirements, allowing independent load selections for each channel. Each channel can be configured for 2Ω, 4Ω, 8Ω, 25V, 70V, and 100V loads.
Page 11 • Fig 4 - CLA404 Power Share selection arrow is set to 100W CH 1 / CH 2 and 100W for CH 3 / CH 4 • Fig 5 - CLA802 Power Share selection arrow pointer is 400W CH 1 / CH 2 Note: Power Share selections are not affected by the load selections.
Page 12 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL REAR PANEL - (CO NT I N UE D ) This example below shows the Power Share Selection can be different between channels • Fig 6 - CLA402 Power Share selections arrow pointer is set to CH 1 50W (70V) / CH 2 350W (4Ω) •...
Page 13 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CAB LI NG C L A G AIN vs IN PUT SE NS IT IVITY The CLA amplifier can be used with either balanced or unbalanced sources,...
Page 14 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CL A AMPS 2-Ω OPE RATIO N C L A A M P S 2 5V O PE R AT IO N The CLA amplifier is indeed versatile, designed for both high-voltage and...
Page 15 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CON N ECTING THE C L A AM PLI FIE R TO AC MA IN S DO NOT DO! • Never plug a CLA Series amplifier into a circuit without knowing what other products are connected to the same circuit.
Page 16 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CON N ECTING THE C L A AM PLI FIE R TO AC MA IN S - (CON TI NU E D ) BEST PRACTICES...
Page 17 RACK KIT INSTALL AT IO N The CLA Series amplifier can be rack mounted as a single amp or side by side with any other AtlasIED ½ rack model. All parts to rack mount single or two amps are included with the CLA amp. Depending on the rack mounting method there may be extra part left; disregard them. Follow the illustrations below for kit assembly.
Page 18 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL System Type 2-Channel / 4-Channel Power Amplifier Power Supply Type Switch Mode - Wide Range 90 - 132V / 208 - 264V Amp Topology...
Page 19 Standby OFF, Priority Mute OFF Load Confgurations CLA202 = 100W x 100W x 1, CLA402 = 200W x 200W x 1, CLA802 = 400W x 400W x 1, CLA404 = 100W x 100W x 2, Power Share Configuration CLA804 = 200W x 200W x 2...
Page 20 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL Status Indicator - AC Mains / Power Supply, Multi-Color Idle Mode Blue Blinking Power On Mode Blue Steady Standby Mode Yellow Steady Protect Mode...
Page 21 Damping Factor (20Hz to 400Hz) >250 CLA202 and CLA404 26dB 4Ω, 29dB 8Ω, 37dB 70V, 40dB 100V , CLA802 26dB 4 , 29dB 8 , 37dB 70V, 40dB 100V, Gain CLA402 and CLA804 29dB 4Ω, 32dB 8Ω, 37dB 70V, 40dB 100V Crosstalk CH 1-2 &...
Page 22 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CLA202 Power Consumption / Current Draw @ 120V AC Mains, Power Share Settings 100W x 2 Amps Watts BTU / hr (Note 4) Standby Mode, Meets Energy Star Standards 0.02A...
Page 23 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CLA402 Power Consumption / Current Draw @ 120V AC Mains, Power Share Settings 200W x 2 Amps Watts BTU / hr (Note 4) Standby Mode, Meets Energy Star Standards 0.02A...
Page 24 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CLA802 Power Consumption & Current Draw @ 120V AC Mains, Power Share Settings 400W x 2 Amps Watts BTU / hr (Note 4) Standby Mode, Meets Energy Star Standards 0.02A...
Page 25 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CLA404 Power Consumption / Current Draw @ 120V AC Mains, Power Share Settings 100W x 4 Amps Watts BTU / hr (Note 4) Standby Mode, Meets Energy Star Standards 0.02A...
Page 26 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL Power Consumption / Current Draw CLA804 @ 120V AC Mains, Power Share Settings 200W x 4 Amps Watts BTU / hr (Note 4) Standby Mode, Meets Energy Star Standards 0.02A...
Page 27 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL Package Content CLA202 CLA402 CLA 802 CLA404 CLA804 Power Cord IEC C13 Plug / 16AWG 1.8m Cord / Qty 1 Qty 1 Qty 1...
Page 28 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL NOTE S: 6. Sine wave power draw is defined as 1 KHz input signal applied to 1. Power Level - Test is defined as follows: 1kHz sine wave signal achieve the maximum power output before clip into a 4Ω...
Page 29 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CLA202 Power Consumption / Current Draw @ 230V AC Mains, Power Share Settings 100W x 2 Amps Watts BTU / hr (Note 4) Standby Mode 0.02A...
Page 30 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL Pink Noise Power 4Ω, All CH Driven, Note 3 1.7A 247W 842 BTU Pink Noise Power 8Ω, All CH Driven, Note 3 1.6A 238W...
Page 31 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL Music Power 8Ω, All CH Driven, Note 5, 8 2.94A 403W 1375 Music Power 100V, All CH Driven, Note 5 2.65A 356W 1214 Sine Wave Power 2Ω, All CH Driven, Note 6, 8 5.41A...
Page 32 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL CLA804 Power Consumption / Current Draw @ 230V AC Mains, Power Share Settings 200W x 4 Amps Watts BTU / hr (Note 4) Standby Mode 0.03A...
Page 33 CLA SERIES COMMERCIAL LITE AMPLIFIERS CLA804 / CLA404 / CLA802 / CLA402 / CLA202 OWNER’S MANUAL DIME NSIONAL DRAWI N GS 8.50" (216mm) 1.70" (43mm) 13.77" (350mm) 14.08" (358mm) 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A.
Page 34 INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
