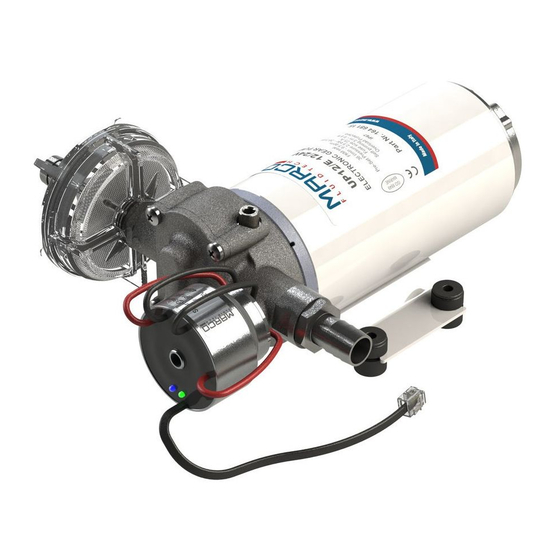

Self-priming electric pump for transferring various liquids

Advertisement

SELF-PRIMING ELECTRIC PUMP
FOR TRANSFERRING VARIOUS LIQUIDS
INSTRUCTIONS FOR USE
164 681 15-US - UP12/E 12/24V
©
S.p.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 164 681 15-US - UP12/E 12/24V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Marco 164 681 15-US - UP12/E 12/24V

  • Page 1 SELF-PRIMING ELECTRIC PUMP FOR TRANSFERRING VARIOUS LIQUIDS INSTRUCTIONS FOR USE 164 681 15-US - UP12/E 12/24V © S.p.A.
  • Page 3 AIR VENT VALVE ACTIVATION When starting the pump, or when emptying the tank, slightly open the small valve in order to let the air out and facilitate the priming. As soon as the pump is operating close the small valve. ELECTRONIC PRESSURE SENSOR ©...
  • Page 4 ELECTRONIC PRESSURE SENSOR WORKING DIRECTIONS The electronic pressure sensor, through the use of a microprocessor, controls the pump's speed to obtain the needed flow rate, with the following advantages: - Noise reduction during operation - The optimization of current consumption - A strong reduction of electrical noise, thanks to the slow speed ramp up and ramp down of the motor.
  • Page 5 With fast flashing red LED, the pump is being overloaded (due to viscous liquids or gears overheating). While the pump is running, the speed is reduced to keep the current up to the nominal value for 30 seconds, period after which the circuit tries to release again the motor to its normal operating speed.
  • Page 6: Product Description

    PRODUCT DESCRIPTION Self-priming gear pump, integrated check valve and electronic pressure sensor: to be used as automatic pump. Nickel-plated brass body, PTFE gears, stainless-steel shaft and lip seal. The electronic pressure sensor is preset at 43.5 psi. TECHNICAL DETAILS Tab.1 EN FUSE FLOW RATE * PRESSURE...
  • Page 7: Ambient Conditions

    AMBIENT CONDITIONS TEMPERATURE: min.-10°C 14°F-max.60°C 140°F RELATIVE HUMIDITY: max. 90 % WARNING: the above indicated temperature ranges are applicable to all components of the pump and these limits must be respected in order to avoid any possible damage or malfunctioning. OPERATING CYCLE The pump has been designed for discontinuous use.
  • Page 8 To ensure the correct directional flow of the fluid as indicated by the arrow on the top plate, it is necessary to connect the positive pole (+) of the battery supply to the red wire on the motor end-cap and the negative pole (-) to the black wire. Electrical connections must be made using adequate terminal blocks and connectors ensuring a tight fitment of the electrical cables.
  • Page 9: Troubleshooting

    TROUBLESHOOTING CHECK POINTS IF THE PUMP HAS STOPPED OR WILL NOT START Ø Check the effectiveness of the battery power supply (voltage activity); Ø Check if the fuse has blown; Ø Check for any foreign matter present in the pump body. To do this, disconnect the power supply and unscrew the four fixing screws, remove the front cover plate and inspect the chamber.
  • Page 10: Warranty

    5) The Warranty does not cover any related installation costs involved. 6) Transport costs are refundable only in the case where warranty has been duly accepted by Marco Spa and they will be limited to the actual shipment costs between Marco Spa warehouse and the client's delivery address.
  • Page 11 EXPLODED VIEW Pos. Q.tà Descrizione Pos. Q.tà Descrizione PUMP BODY IDLE GEAR O-RING O-RING NIPPLE PUMP FRAME O-RING ARMATURE TOP PLATE BRUSH HOLDER SCREW O-RING ELECTRONIC PRESSURE SENSOR WASHER O-RING AIR VENT CAP NON RETURN VALVE O-RING NIPPLE DRIVING GEAR ANTIVIBRATION MOUNT * SCREWS NOT INCLUDED ©...
  • Page 12 DIMENSIONS © S.p.A.
  • Page 13 DIAGRAMS FLOW RATE DIAGRAM AMPERE-DRAW DIAGRAM A (12V) A (24V) © S.p.A.
  • Page 14 E.C. DECLARATION OF CONFORMITY We confirm that the product: 164 681 15-US - UP12/E 12/24V Electronic Gear pump Is in conformity with the Directive 2004/108/EC (ex.89/336/EC) relating to Electromagnetic Compatibility. This declaration is valid for all products which are produced in accordance with the technical documentation which is a part of this declaration.
  • Page 16 Property of MARCO S.p.A reproduction prohibited. All rights reserved. For further information visit our web site - www.marco.it Marco S.p.A Via Mameli 10 - 25014 Castenedolo (Brescia) – Italy tel. +39 030 2134.1 / Fax +39 030 2134.300...
