LST FI750/RF/MCP Manual

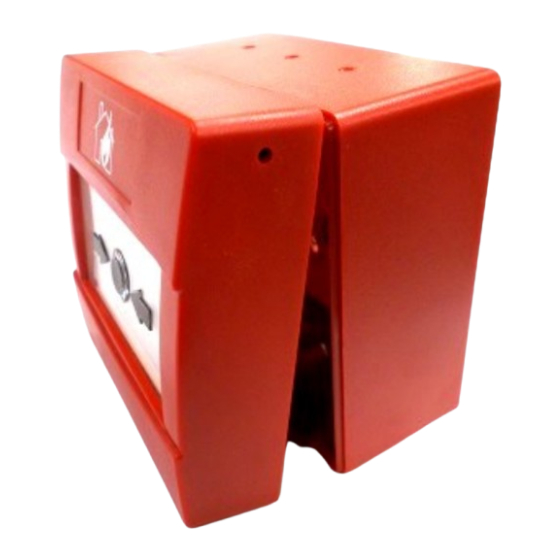

GENERAL DESCRIPTION
The FI750/RF/MCP call point permits the manual activation of a fire alarm. After its use, the call point can be reset with its proper key, making
it immediately ready for reactivation.
FI750/RF/MCP is battery powered and doesn't need any system cabling installation.

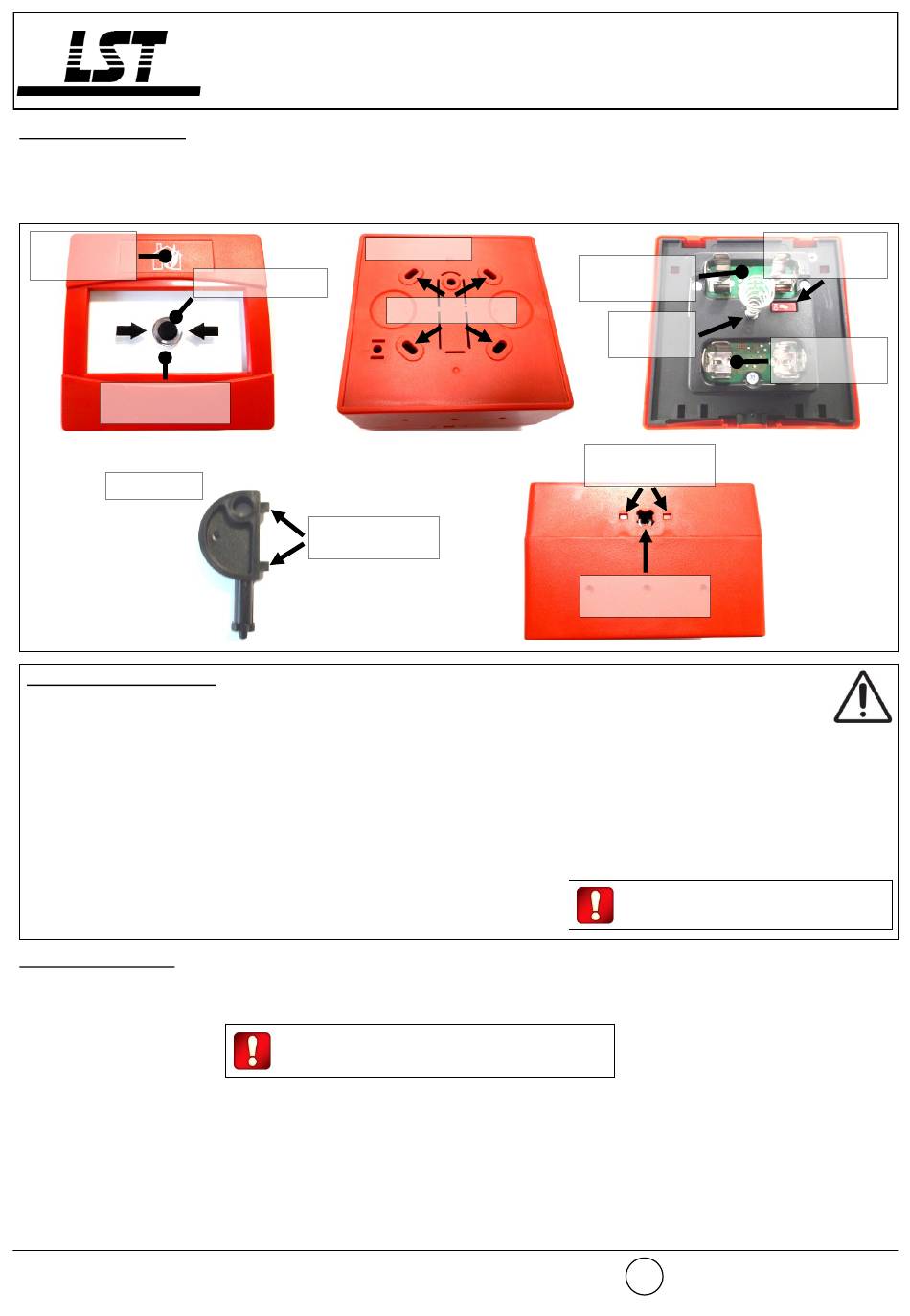

Device
block
Operable front
window
Reset key
Picture 1
DEPLOYMENT PROCEDURE
1) Select a location for the call point. See LOCATION SELECTION.
2) Unbox the call point from its packaging.
3) Power up the call point. See POWERING UP - FIRST TIME USE / POWERING UP - RECOVERY.
4) Link the call point to the system. See LINKING - WAKE-UP / LINKING - ONE-BY-ONE.
5) Install the back box. See FIXING THE BACK BOX.
6) Install the device block onto the back box. See DEVICE BLOCK INSTALLATION / DEINSTALLATION.
7) Test the call point. See TESTING.
8) Remove the "NOT IN USE LABEL" when the call point is in operation.
LOCATION SELECTION
Select a location for the call point that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the father FI750/RF/W2W, FI750/RF/CWE or FI750/RF/WE network device.
Mount the call point as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The FI750/RF/MCP must NOT be installed near electronic devices and computer equipment that can interfere with its wireless communication
quality.
Labor Strauss Sicherungsanlagenbau Gmbh - Wiegelestrasse 36 A-1230 Wien Austria
Wireless Resettable Call Point
LED indicator
Latch release
pins
It is advisable to use the FI750/RF/MK survey kit
to locate a good wireless installation location.
FI750/RF/MCP
Back box
Fixing holes
Battery A
housing
Tamper
switch
Device block
latch
Activation
release
Always remove the "NOT IN USE" label
when the call point comes in operation.
