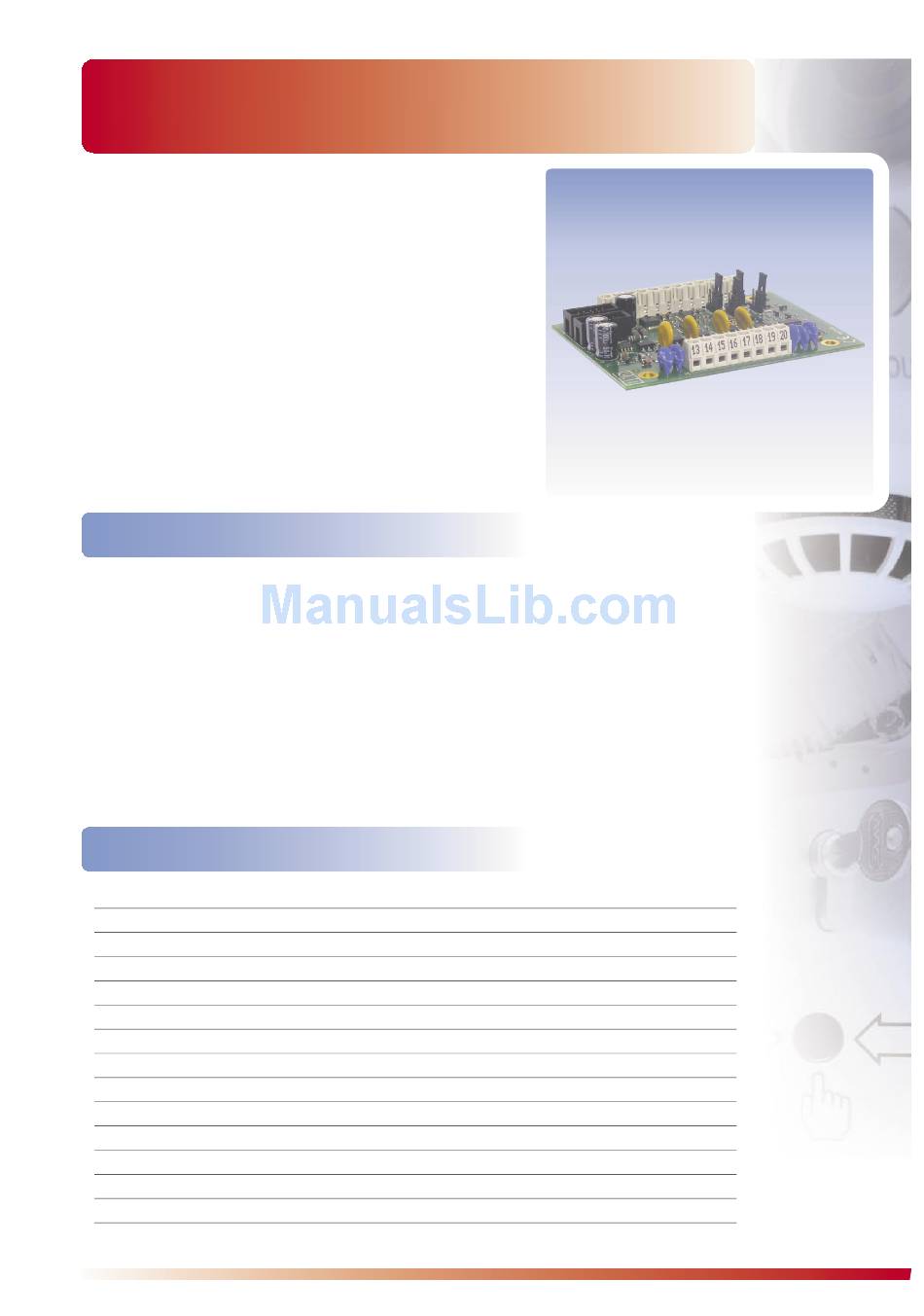

LST SZ58-3 Specification

Siren Connection Module
SZ58-3
• Four independent, individually fused
siren outputs
• 500mA load current per output
• Monitoring of the siren circuits
• LEDs indicate activation and faults of
siren circuits
• Activation by means of actuation
outputs or external switches
Description

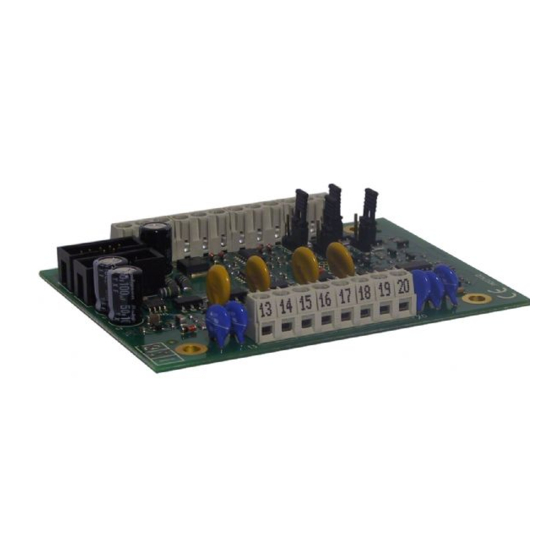

The Siren Connection Module SZ58-3 is installed in Fire
Detection Control Panels Series BC216, BC016 and
BC06 for connecting acoustical or optical signalling
devices (e.g., sirens) to four independently actuatable
circuits with line monitoring. The siren circuits are indi-
vidually protected by means of self-healing electronic
fuses. The activation of the siren circuits is carried
out by the control panel or manually by means of swit-
ches.
The signalling devices can be supplied either directly
by the fi re detection control panel, or, in case of in-
Specifi cations
Operating voltage
External supply voltage for signalling devices
Current consumption at 24V
Load current per output
Output voltage, siren circuit quiescent
Output voltage, siren circuit active
End-of-line resistor
Surveillance current, quiescent state
Ambient temperature
Relative humidity
Dimensions L × W × H
Weight
Order number
Order name
