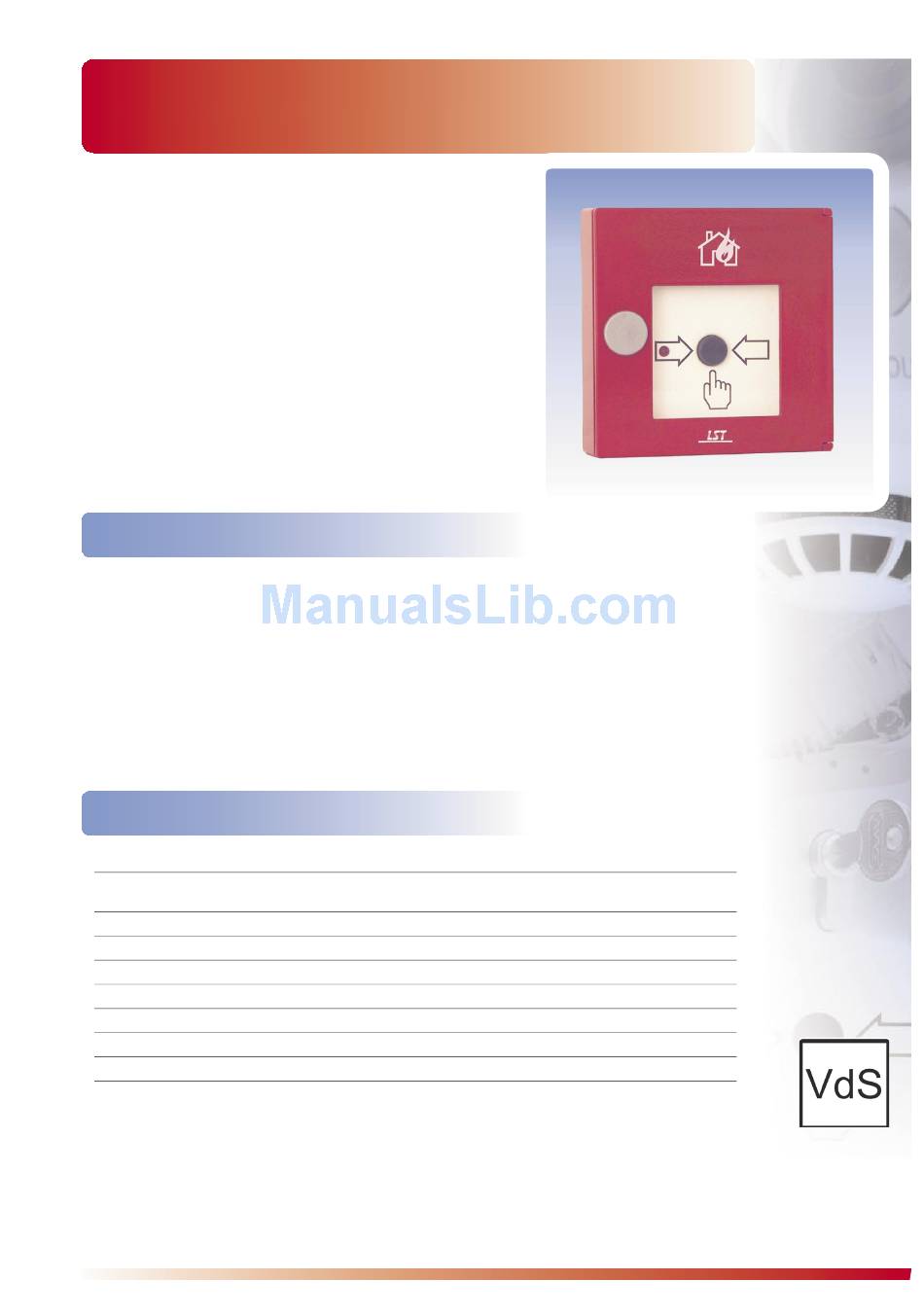

LST Vds 245302 Specifications

Manual Call Point
HFM/3/11/02
• Addressable conventional technology
• Robust die-cast aluminium case
• LED indicates activation
• Optional address module allows
individual detector identifi cation
• Operating instructions by means of
standardised symbols
• Increase of protection class to IP54
by using optional protection kit
Description
The manual call point according to EN 54-11/B is
designed for application in addressable conventional
technology and is accommodated in a robust die-cast
aluminium case. In comparison with plastic cases, the
aluminium case proves to be of advantage even after
years of use, thanks to its resistance to environmental
impact: It is virtually unbreakable, form stable and hard-
ly changes its colour in sunlight.
A built-in LED optically indicates the activated condition
Specifi cations
Operating voltage
Ambient temperature
Protection class
Dimensions W × H × D
Colour
Weight
Approval
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
of the manual call point. Individual detector addressing
is achieved by connecting an optional address module.
The hinged door can be opened up to an angle of 180°
and it is provided with a replaceable pane of glass. If
the detector has been activated, an integrated locking
device prevents the closing of the door.
Custom versions with different colours, designs, func-
tions and internal wirings are available on inquiry. By
means of the optional Protection Kit HFM/HM-ZS-IP54,
the protection class can be increased to IP54.
Supply through the detector line voltage
-20°C to +60°C (continuous operation)
-25°C to +70°C (max. 12 hours)
IP43
125 × 125 × 34 (mm)
fl ame red, RAL 3000
400g
VdS G202034
245302
Manual Call Point/EN 54/Red/Conv. HFM/3/11/02
A
