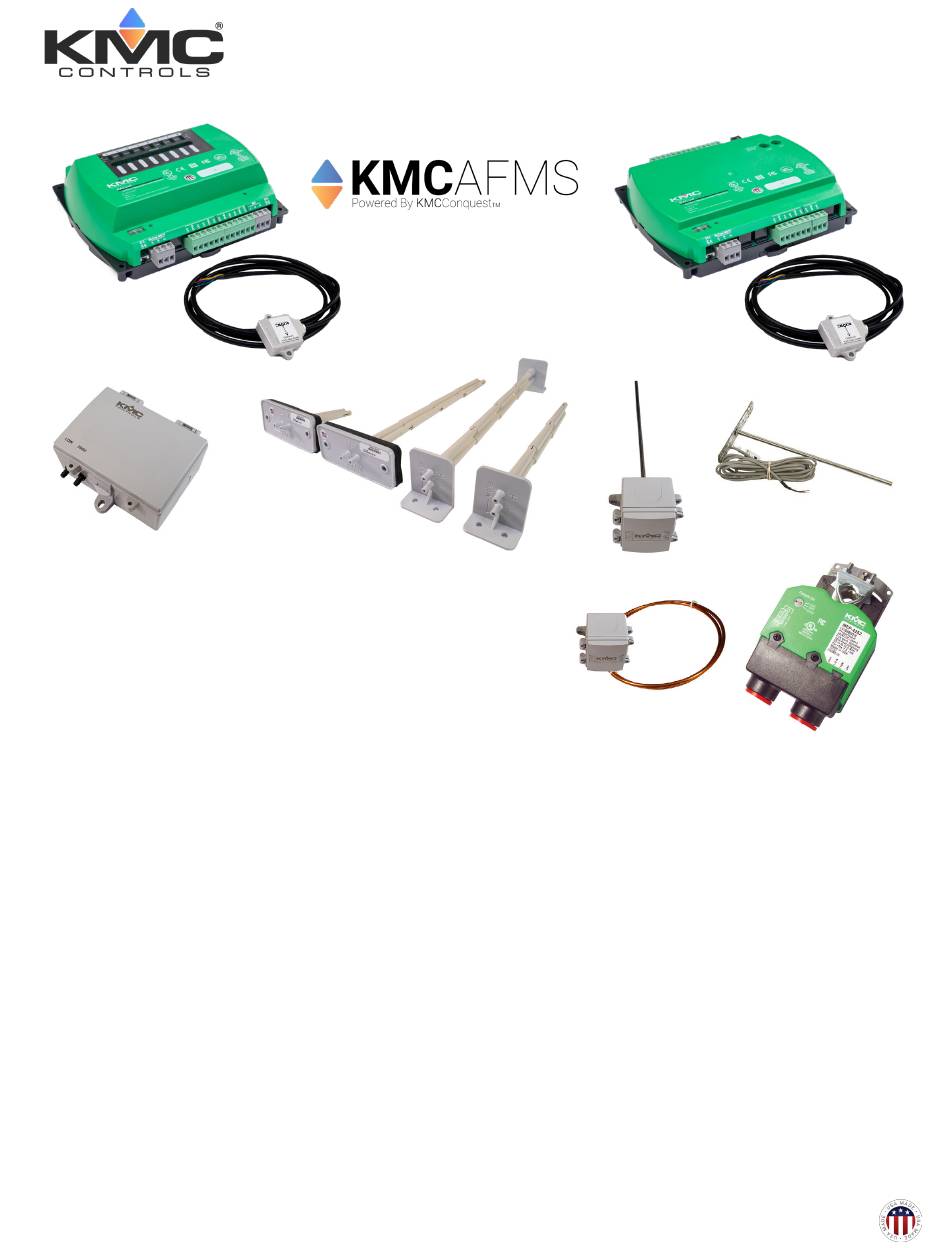

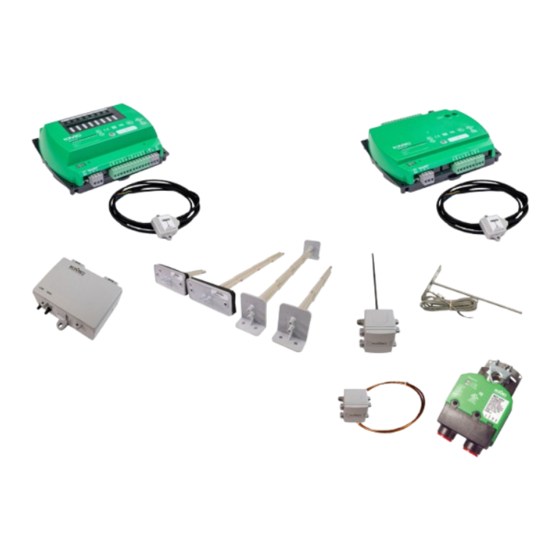

KMC Controls BAC-9311C-AFMS Installation Manual

Airflow measurement system

Hide thumbs

page of 31

/ 31
Bookmarks

Quick Links

Download this manual

Contents

Example Diagrams .................................................2

Standard Application .......................................2

Outdoor Air Damper Pressure Assist Application ..2

Return Air Damper Pressure Assist Application ....3

Mounting the System Components ...........................4

Mounting the Controller ...................................4

Mounting the Inclinometer ................................5

Mounting the Supply Airflow Pickup Tubes ..........6

Mounting Pickup Tubes for Pressure Assist .........8

Mounting the Pressure Transducer(s) ...............10

Mounting the OAT, RAT, and MAT Sensors .........11

Mounting a Proportional Actuator ....................13

Connecting System Components to the Controller ....14

Connecting the Airflow Pickup Tubes ...............14

Connecting the Inclinometer ...........................15

Connecting the Outside Air Temperature Sensor .15

Connecting the Return Air Temperature Sensor ..16

Connecting the Mixed Air Temperature Sensor ...16

Connecting the Proportional Actuator ...............17

KMC Controls, 19476 Industrial Drive, New Paris, IN 46553

Airflow Measurement System

877-444-5622

Connecting Networks ...........................................18

Connecting an Ethernet Network ......................18

Connecting an MS/TP Network ........................18

Connecting Power ...............................................20

Connecting Power to the Controller ..................20

Connecting Power to the Inclinometer ..............20

Connecting Power to the Pressure Transducer(s) 20

Connecting Power to the Proportional Actuator ..21

Controller Power and Communication Status ...........22

Controller MS/TP Network Isolation Bulbs ...............23

Wiring Diagrams ..................................................24

Input/Output Objects/Connections .........................30

Configuring and Operating ....................................30

Important Notices................................................31

Fax: 574-831-5252

Installation Guide

www.kmccontrols.com

Need help?

Do you have a question about the BAC-9311C-AFMS and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls BAC-9311C-AFMS

Page 1 Input/Output Objects/Connections ......30 Connecting the Return Air Temperature Sensor ..16 Configuring and Operating ........30 Connecting the Mixed Air Temperature Sensor ...16 Important Notices..........31 Connecting the Proportional Actuator ....17 KMC Controls, 19476 Industrial Drive, New Paris, IN 46553 877-444-5622 Fax: 574-831-5252 www.kmccontrols.com...
Page 2 Example Diagrams Standard Application REVISE Outdoor Air Damper Pressure Assist Application KMC Airflow Measurement System Installation Guide 925-019-05D...
Page 3 Return Air Damper Pressure Assist Application KMC Airflow Measurement System Installation Guide 925-019-05D...
Page 4 Mounting the System Components Mounting the Controller NOTE: Mount the controller inside a metal enclosure for RF shielding and physical protection. NOTE: To mount the controller with screws on a flat surface, complete the steps in On a Flat Surface Or to mount the controller on a 35 mm DIN rail (such as integrated in an HCO-1103...
Page 5 4. Lower the controller against the DIN rail. 5. Push in the DIN latch to engage the rail. NOTE: To remove the controller, pull the DIN latch until it clicks once and lift the controller off the DIN rail. Mounting the Inclinometer NOTE: If the outside air damper has vertical-axis damper blades, you will first need to install an HLO-1050 Linkage Kit...
Page 6 Mounting the Supply Airflow Pickup Tubes There must be enough pressure flow pickup tubes must installed, for the size of the opening, to get an accurate average value for the air-stream. Multiple pickup tubes (at least 2) connected in a parallel pitot array are recommended.
Page 7 3-1/2” (89 mm) 2-3/4” (70 mm) 7/16” (11 mm) 1-1/2” (38 mm) for SSS-101x 1-1/4” (32 mm) for SSS-100x Mounting Holes, 3/16” (5 mm) 3-5/32” (80 mm) for SSS-10x2 2. Cut a 7/8” hole in the duct to accept the pickup tubes. 1/4"...
Page 8 Mounting Pickup Tubes for Pressure Assist Mounting for OAD Pressure Assist Complete these additional steps only if installing a BAC-5901C-AFMS or BAC-5901CE-AFMS for an OAD pressure assist application. (See the KMC AFMS Selection Guide for details.) Mounting the First Airflow Pickup Tube 1.
Page 9 Mounting for RAD Pressure Assist Complete these steps only if installing a BAC-5901C-AFMS or BAC-5901CE-AFMS for a RAD pressure assist application. (See the KMC AFMS Selection Guide for details.) Mounting the First Airflow Pickup Tube 1. Find a location for the first pickup tube near the return air damper, on the damper’s upstream side. 2.
Page 10 Mounting the Pressure Transducer(s) NOTE: Complete these steps only if using a BAC-5901C(E)-AFMS controller. NOTE: Avoid locations with severe vibrations or excessive moisture. The enclosure has a standard 1/2-inch conduit opening and may be installed with either a conduit coupler or a cable-gland-type fitting. CAUTION Do not use in explosive or hazardous environments, with combustible or flammable gasses, as a safety or emergency stop device, or in any other application where failure of the product could...
Page 11 Mounting the OAT, RAT, and MAT Sensors STE-1411/12/13/14 Bendable Copper Sensor Use a bendable copper sensor for easily-accessible mixed air sections and outside air hoods. If the mixed air section is not easily accessible, a flexible cable sensor may be used. If the unit does not have an easily- accessible outside air hood, a rigid steel probe may be used.
Page 12 2. Insert the sensor cable into the mixed air chamber, stringing the cable to cover the air path, and secure as needed. NOTE: The flexible cable can be easily shaped to fit any duct size but observe a minimum bend radius of two inches to prevent damage to wires or sensors.
Page 13 For instructions on how to mount your particular model of MEP-series proportional actuator: 1. Select the appropriate link from the list, or search for it on the KMC Controls website: •...
Page 14 Connecting System Components to the Controller Connecting the Airflow Pickup Tubes For a BAC-5901C(E)-AFMS Use appropriately sized polyethylene tubing for the pressure connections. The length of the tubing should not be longer than necessary. Arrange the tubing to minimize stress on the connections and prevent kinking. Connecting the Supply Airflow Pickup Tubes to the Pressure Transducer 1.
Page 15 NOTE: The other ports of the two pickup tubes are left unconnected and open to air. Connecting the Pressure Transducer(s) to the Controller 1. Connect the signal wire from OUT on the supply air pressure transducer to UI9 on the controller. 2.
Page 16 NOTE: The two-wire sensor is not polarity sensitive. 3. Plug the conduit with sealant to prevent air infiltration. 4. Swing the door closed until securely latched. 5. If desired for added security, install the two (provided) screws in the door’s integrated screw tabs. 6.
Page 17 AFMS controller. Using a New Proportional Actuator For instructions on how to wire your particular model of actuator to the controller: 1. Click on the appropriate model from the list, or search for it on the KMC Controls website: • MEP-4552 •...
Page 18 • Subnet mask—255.255.255.0 • Gateway—192.168.1.1 Connecting an MS/TP Network 1. For a BAC-5901C-AFMS or BAC-9311C-AFMS, connect the BACnet network to the gray BACnet MS/TP terminal block NOTE: Use 18 gauge AWG shielded twisted pair cable with maximum capacitance of 51 picofarads per foot (0.3 meters) for all network wiring (Belden cable #82760 or equivalent).
Page 19 3. If the controller is at either end of a BACnet MS/TP network (only one wire under the terminals), turn the EOL switch to ON. NOTE: The EOL switch is shipped from the factory in the OFF position. KMC Airflow Measurement System Installation Guide 925-019-05D...
Page 20 Connecting Power Connecting Power to the Controller To connect a 24 VAC, Class-2 transformer to the black power terminal block of the controller: ⊥ ⊥ 1. Connect the neutral side of the transformer to the controller’s common terminal ∼ ∼ 2.
Page 21 Connecting Power to the Proportional Actuator For instructions on how to wire to power and complete setup of your particular model of actuator: 1. Select the appropriate model from the list, or search for it on the KMC Controls website: •...
Page 22 Controller Power and Communication Status The status LEDs on a BAC-5901-AFMS and BAC-9311-AFMS indicate power connection and network communication. The descriptions below describe their activity during normal operation (at least 5 to 20 seconds after power-up/initialization or restart). NOTE: If both the green READY LED and the amber COMM LED remain OFF, check the power and cable connections to the controller.
Page 23 Amber ETHERNET LED • The amber Ethernet LED flashes when the controller is communicating with a 100BaseT Ethernet network. • The amber Ethernet LED remains OFF when the (powered) controller is communicating with the network at only 10 Mbps (instead of 100 Mbps). Controller MS/TP Network Isolation Bulbs The two network isolation bulbs serve three functions:...
Page 24 See the AFMS Selection, Installtion and Application Guides for additional installation details. See www.kmccontrols.com for accessories and additional details. © 2021 KMC CONTROLS, INC. KMC Airflow Measurement System Installation Guide 925-019-05D 19476 INDUSTRIAL DR. DRAWING TITLE: KMC CONQUEST AIRFLOW MEASUREMENT SYSTEM W/BAC-5901...
Page 25 24 VAC/VDC Class 2 50/60 Hz Made in USA MS/TP 10/100 © 2021 KMC CONTROLS, INC. KMC Airflow Measurement System Installation Guide 925-019-05D 19476 INDUSTRIAL DR. DRAWING TITLE: KMC CONQUEST AIRFLOW MEASUREMENT SYSTEM W/BAC-5901 WIRING NEW PARIS, IN 46553 CREATION DATE:...
Page 26 See the AFMS Selection, Installtion and Application Guides for additional installation details. See www.kmccontrols.com for accessories and additional details. © 2022 KMC CONTROLS, INC. 19476 INDUSTRIAL DR. DRAWING TITLE: KMC CONQUEST AFMS W/BAC-5901 W/PRESSURE ASSIST KMC Airflow Measurement System Installation Guide 925-019-05D...
Page 27 24 VAC/VDC Class 2 50/60 Hz Made in USA MS/TP 10/100 © 2022 KMC CONTROLS, INC. 19476 INDUSTRIAL DR. DRAWING TITLE: KMC CONQUEST AFMS W/BAC-5901 W/PRESSURE ASSIST WIRING KMC Airflow Measurement System Installation Guide 925-019-05D NEW PARIS, IN 46553 FILENAME: AFMS-5901C-PA-2-SUBMITTAL PHONE: 574.831.5250...
Page 28 See the AFMS Selection, Installtion and Application Guides for additional installation details. See www.kmccontrols.com for accessories and additional details. © 2021 KMC CONTROLS, INC. 19476 INDUSTRIAL DR. KMC Airflow Measurement System Installation Guide 925-019-05D DRAWING TITLE: KMC CONQUEST AIRFLOW MEASUREMENT SYSTEM W/BAC-9311...
Page 29 KMC Conquest Airflow Measurement System Model: BAC-9311C(E) PRESSURE SENSOR HIGH MS/TP 10/100 ETHERNET © 2021 KMC CONTROLS, INC. KMC Airflow Measurement System Installation Guide 19476 INDUSTRIAL DR. 925-019-05D DRAWING TITLE: KMC CONQUEST AIRFLOW MEASUREMENT SYSTEM W/BAC-9311 WIRING NEW PARIS, IN 46553 FILENAME: AFMS-9311C-2-SUBMITTAL PHONE: 574.831.5250...
Page 30 Input/Output Objects/Connections BAC-5901C(E)-AFMS BAC-9311C(E)-AFMS Inputs Inputs Space Sensor (on Room Sensor port) Space Sensor (on Room Sensor port) Space Setpoint Offset (on port) Space Setpoint Offset (on port) AI3/UI3 Incoming Damper Signal AI3/UI3 Incoming Damper Signal AI4/UI4 Outdoor Air Temp AI4/UI4 Outdoor Air Temp AI5/UI5...
Page 31 KMC Controls, Inc. makes no representations or warranties with respect to this document. In no event shall KMC Controls, Inc. be liable for any damages, direct, or incidental, arising out of or related to the use of this document.

This manual is also suitable for:

Bac-9311ce-afms
