THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on

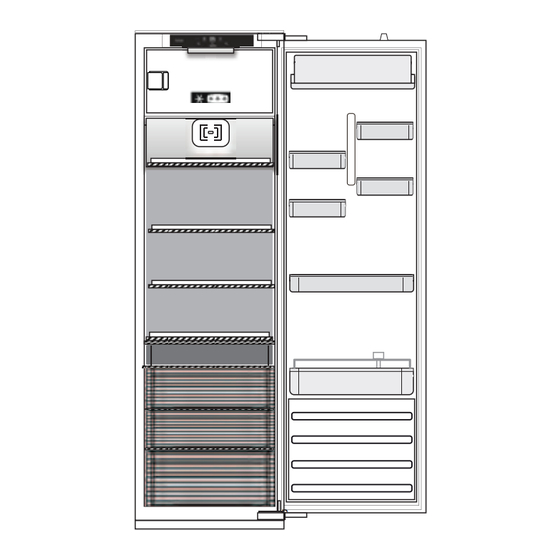

PRODUCT DESCRIPTION
FIRST TIME USE
Wait at least two hours, after the installation, before connecting
the appliance to the power supply. Connect the appliance to the
power supply it starts the operation automatically. The ideal storage
temperatures for the food are preset in the factory.
CONTROL PANEL
6 TH SENSE FRESH CONTROL AND FREEZE CONTROL
The appliance is automatically able to quickly reach the optimal
internal preservation temperature.
FAN*
The Fan improves temperature distribution inside the refrigerator
compartment, allowing better preservation of stored food.
The fan will start/stop working depending on the temperature and/ or
humidity level inside the fridge. If the appliance has the Fan it can be
equipped with the antibacterial filter.
Note: the fan restarts automatically after a power cut or after turning off the
appliance. Do not obstruct the air intake area with food items.
ANTIBACTERIAL FILTER*
Remove it from the box placed in the Fruit and vegetable drawer and
insert into the cover of fan. The replacement procedure is included in
the filter box.
ON/STAND-BY
To put the product in Stand-by, press and hold the On/ Stand By
button. All the indicators turn off except On/Standby indicator.
In Stand-by mode the light in the refrigerator compartment does not
turn on Press again to reactivate the appliance.
Note: this does not disconnect the appliance from the power supply.
TEMPERATURE DISPLAY
The display shows the refrigerator compartment temperature
(between 2°C and 8° C.
To avoid food waste, please refer to the recommended setting and storage
times found in the online user manual.
FRIDGE COMPARTMENT TEMPERATURE
To adjust the Fridge Temperature, press the Fridge
Fridge Temperature can be adjusted between +2°C and + 8°C, as
shown by the Fridge Temperature display. Recommended setting for
the refrigerator compartment is +4°C.
* Available only on certain models
www . whirlpool . eu/ register
1.
2.
7. 6. 5. 4. 3.
button. The
Before using the appliance carefully read the Safety
Instruction.
After turning the appliance on, you must wait for 4-6 hours for the
correct storage temperature to be reached for a normally filled
appliance. Position the antibacterial anti-odour filter in the fan as
demonstrated in the filter packaging (if available). If the audible signal
sounds, it means that the temperature alarm has intervened: press the
button to switch off the acoustic alarms.
1.
2.
3.
4.
5.
6.
7.
(FAST COOLING)
FAST COOL FUNCTION
To quickly cool the refrigerator compartment, or 6 hours before putting
a large quantity of food to be frozen in the freezer compartment, turn
on the "Fast Cooling" function by repeatedly pressing the button until
the 3 icons flash green and then stay constant.
The function automatically turns off after 30 hours for appliances with
freezer compartment, after 6 hours for appliances without freezer
compartment and the temperature returns to the previous setting
when the function is turned on.
To turn the function off manually, press the button.
Note: avoid a direct contact between the fresh food and the food that is
already frozen.
TURNING OFF THE SOUND ALARM
To turn off the sound alarm, briefly press the
VACATION
You can use this function in the event of a prolonged absence from
home. Press the Vacation button for 3 sec to engage Vacation Mode.
The display will show the temperature of the refrigerator compartment
(+12°C) and the Vacation mode icon will light up. After activating
this function, remove the food from the refrigerator compartment
and keep both doors closed - the refrigerator will maintain a
suitable temperature to prevent odours from forming. When you
activate vacation mode,remember to remove food from the freezer
compartment. A deep clean (of both refrigeration and freezer
compartment) is recommended before activating this function in order
to prevent the spread of bacteria. Press again the same button for 3 sec
to deactivate Vacation.
Changing the setpoint will automatically deactivate the function.
Temperature Display
Door open indicator
Turning off the sound alarm
Fast cool
Temperature button
Vacation Mode
On/stand-by
button.
