Summary of Contents for CATVISION CHA-501S2

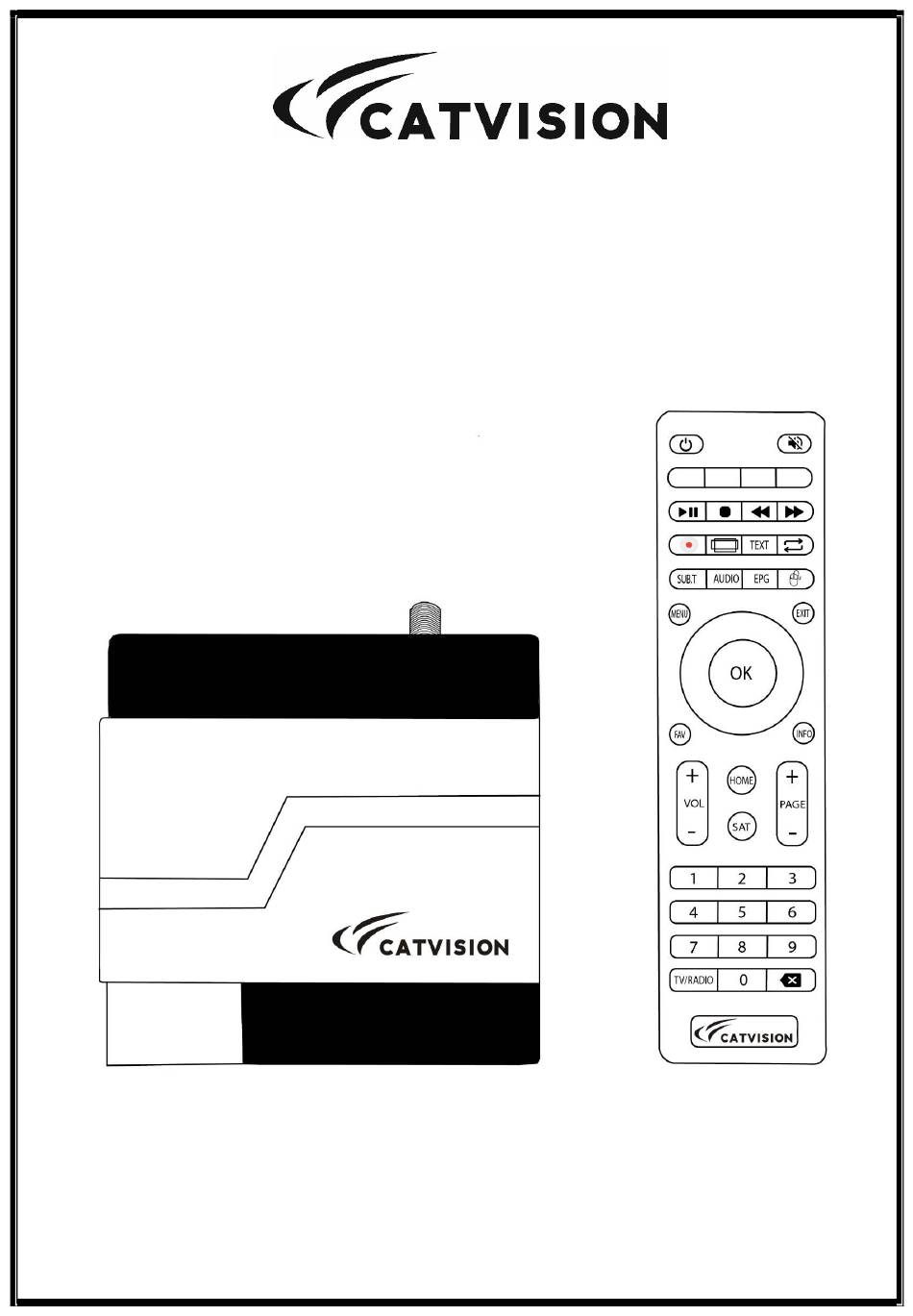

- Page 1 Hybrid Set Top STB Model: CHA-501S2 (OTT+DVB-S2) User Manual CATVISION LIMITED E-14&15, Sector-8, Noida - 201301 (U.P.) India email: info@catvisionindia.com website: www.catvisiononline.in...
- Page 2 Introduction Congratulations on your purchase of Catvision’s Hybrid Set Top Box! This user manual will guide you through the setup process and provide essential information about the features and functionality of your new device. Please read this manual carefully to ensure optimal performance and enjoyment of your hybrid STB.
- Page 3 Safety Precautions Warning: Do not use this STB where contact with or immersion in water is a possibility. Do not use near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc. Do not put a candle or lamp stand on top of the STB; otherwise, there is a danger of fire. ...
- Page 4 Hybrid STB Connection Diagram Wi-Fi Router DD Free Dish Antenna Power Adaptor Ethernet Cable RF Cable HD Out Cable...
- Page 5 Remote Control Operation Standby Press [Standby] key for the STB to Reboot/ Shutdown/enter the Standby state. Mute Press [Mute] key to mute/unmute the sound. Media Control Play/Pause: Press this button to Play/Pause the video. Stop: Press this button to stop the video. ...
- Page 6 Installation After powering up your TV or monitor it will initially display an animated “Catvision” logo while loading. When loading is complete, the display will enter the setup screen. 1. Select the Language (Note: English is default language) Select Next with your remote.
- Page 7 4. Press Left & Right key for Zoom Out/In to adjust screen size. Select Next with your remote. 5. This slide shows the image of remote control unit (RCU). Select Finish with your remote. You have now finished setting up your unit for the first time. Now, let’s take you through the menus.
- Page 8 How to set up the Wi-Fi connection 1. Select the Wi-Fi icon on the top right side on your TV then press OK on your remote. 2. Select Wi-Fi SSID available at your location then press OK on your remote. 2.
- Page 9 How to sign in to Google Play Store Open the Play Store and sign in with your Google ID. Now you can install apps and receive regular updates. 1. Click on Sign In button 2. Enter your Google login credentials. 3.
- Page 10 How to set up DTV Player manually for DD Free Dish The DTV player is already pre-tuned to the DD Free Dish satellite. If, for any reason, the DTV player gets un-tuned, it can be re-tuned manually. 1. Open DTV Player App. 2.
- Page 11 3. After pressing blue hot key change Scan mode to Default, Crypted to FTA channels and Service type to All, then click OK. 4. Wait for few minutes for scanning of all channels to be completed then press OK to play TV/Radio channels.
- Page 12 How to setup DTV Player for DD Free Dish using backup file https://www.catvisiononline.in/all-apps (DTV App Backup For Hybrid Box) 2. Open DTV Player to for DD Free Dish channels. Select “Cancel” then press OK on remote. 2. “No program” screen shows on your TV.
- Page 13 3. Select “DTV settings” then press OK on your remote. 4. Select Backup & reset Recovery. then press OK on your remote. 5. Select backup file (programxxxx.db) from your USB drive then press OK on your remote. (Note: USB drive/Pen drive is required for storing the backup file.) 6.
- Page 14 How to record live channels and watch (PVR) *To record live channels a USB drive or Pen drive is required. 1. Plug the USB drive/Pen drive to your Hybrid STB then press “Record” button on your remote. 2. Recording window will appear Top Right on your TV.
- Page 15 6. Now you can watch your recorded live channels. You can forward or backward your video with the help of left or right arrow button on your remote. CATVISION LIMITED E-14&15, Sector-8, Noida - 201301 (U.P.) India email: info@catvisionindia.com website: www.catvisiononline.in Toll Free No – 7669300112...
