CATVISION CSR- 201SP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

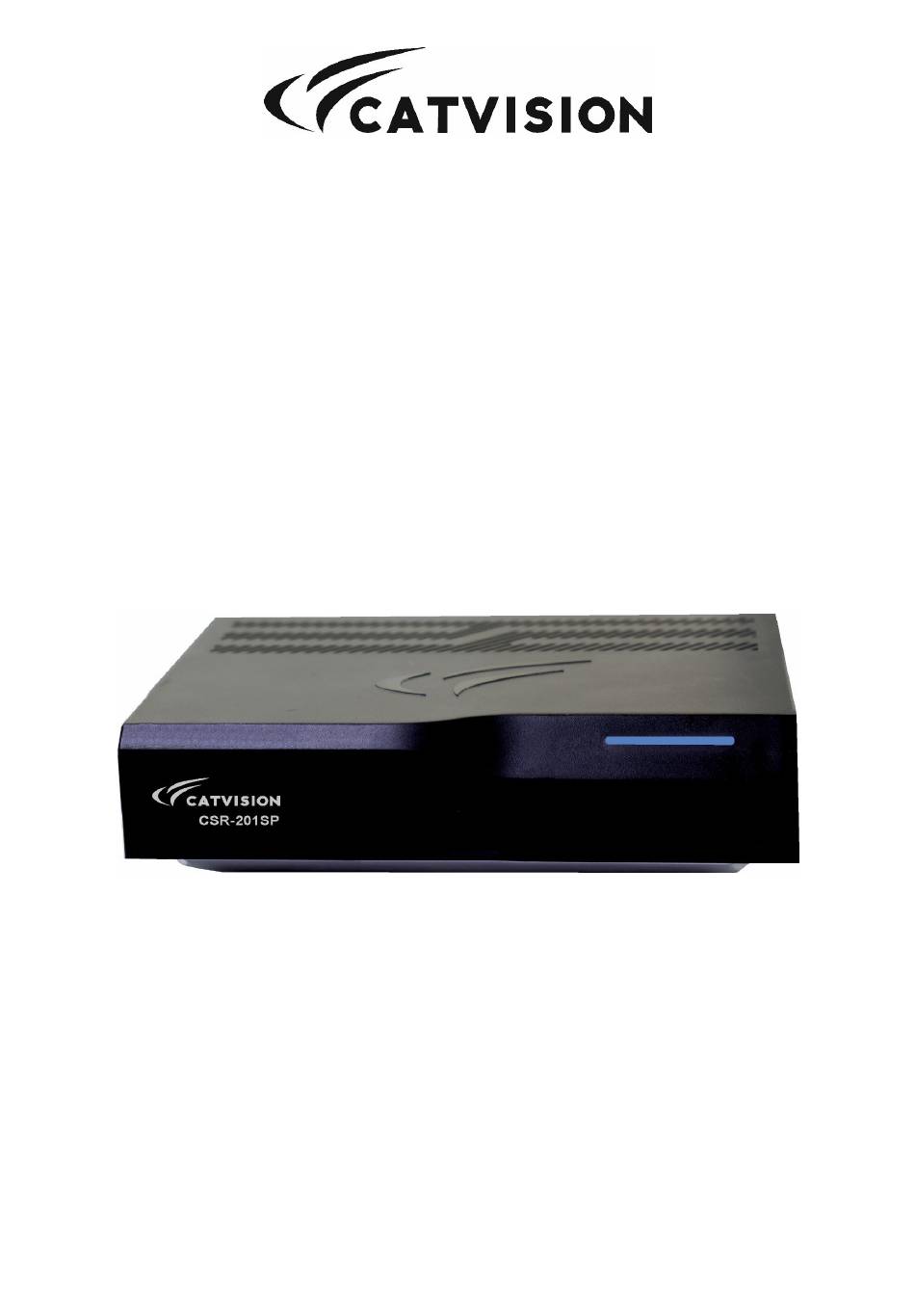

Set Top Box
Model: CSR- 201SP
(DVB-S MPEG2 SD DD Freedish FTA)
User Manual
CATVISION LIMITED
Factory: F-87, UPSIDC Industrial Area, Selaqui,
Dehradun - 248197, Uttarakhand, India
Head office: E-14&15, Sector-8, Noida - 201301 (U.P.) India
email: sales@catvisionindia.com
website: www.catvisionindia.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSR- 201SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CATVISION CSR- 201SP

Summary of Contents for CATVISION CSR- 201SP

  • Page 1 Set Top Box Model: CSR- 201SP (DVB-S MPEG2 SD DD Freedish FTA) User Manual CATVISION LIMITED Factory: F-87, UPSIDC Industrial Area, Selaqui, Dehradun - 248197, Uttarakhand, India Head office: E-14&15, Sector-8, Noida - 201301 (U.P.) India email: sales@catvisionindia.com website: www.catvisionindia.com...

  • Page 2: Main Features

    Introduction The user manual will guide you through the operations of the DVB-S MPEG2 SD Set Top Box Model CSR-201SP. This product is a high-performance & cost-effective DVB-S satellite receiver. It provides users access to Free-to-air (FTA) television channels & radio services. Main Features: ➢...

  • Page 4: Safety Precautions

    Safety Precautions WARNING: ➢ Do not use this STB where contact with or immersion in water is possible. Do not use near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc. ➢ Do not put the candle or lamp stand on the cabinet; otherwise, there is a danger of fire. ➢...

  • Page 5: Installation Diagram

    Installation Diagram:...

  • Page 6: Basic Operation

    Basic Operation 1. Turn on STB ▪ Make the connection as given in connection diagram. ▪ Turn on the STB by switching on the adaptor mains power supply. 2. Standby ▪ Press Standby key on RCU for the STB to enter in to the Standby state. ▪...
  • Page 7 11. FAV ▪ Press FAV key on RCU to open the Fav Channel Group (Genre) List. ▪ Press FAV button two times, to select various Favourite genres like Entertainment, News etc, which you set as Favourite. ▪ Use Left/Right keys on RCU to select the required Favourite group. 12.

  • Page 8: Troubleshooting

    Troubleshooting Problem Possible Reasons What to do No power Power adaptor not switched on. Ensure mains power is present in mains socket and adaptor is connected properly. No video STB is in standby mode. Ensure the STB is powered on. No signal RF Cable is not connected Ensure RF Cable is connected properly.

  • Page 9: Installation

    Installation Once you have installed and connected the AV cable of the set top box with TV. Power on TV and set top box. Press menu key on the RCU to display the Main Menu. This menu consists of 4 menu options as shown below A.
  • Page 10 A1. TV Channel 1. Use up/down keys and go to TV Channel and press OK button on RCU to view TV Channel screen on the TV, here you can see list of TV channels, which are tuned in the Set Top Box. 2.
  • Page 11 A1b. Move channel: 1. In the edition channels screen, use up/down buttons to toggle through channel, which you want to move. 2. Press "2" on RCU and password screen will popup. You can enter default password “0000” which will allow you to edit. 3.
  • Page 12 A1d. Sort Channels: 1. In the TV Channel edition screen, press numeric key "6" on RCU. 2. You need to enter password to confirm editing. 3. Below mentioned pop-up opens up on the TV screen for sorting A-Z or Z-A and you select A-Z and press OK.
  • Page 13 A3. Add Channel: 1. In the Channel menu, select the option Add Channel and press OK key on RCU. 2. The below Add Channel menu shall be displayed on the TV Screen. 3. Enter the below details on the menu: 4.
  • Page 14 6. Press OK button on RCU to open Auto Scan menu 7. Auto Scan screen opens up on TV 8. Select Satellite G-Sat 15 for DD Freedish 9. Search: Select Free 10. No need to change settings of Edit Satellite for DD Freedish satellite. 11.
  • Page 15 C2. TV System: 1. Under System menu, go to TV System using up/down buttons on RCU. 2. Press OK button on RCU to open TV System menu. 3. Select Auto or PAL for Indian TV system. 4. Press Menu for exit.
  • Page 16 C3. Auto Shut Down: 1. Under System menu, go to Auto Shut Down using up/down keys on RCU. 2. Press OK button on RCU to open Auto Shut Down menu. 3. Using numeric keys on RCU, enter the minutes after how much time, the Set Top Box should be auto shut down, instead of keeping it on for longer period.
  • Page 17 C6. Parent Lock 1. This function allows you to lock the channel with a password in order to prevent children from accessing the channel. 2. You can protect your installed data and information using the information using the install lock. 3.
  • Page 18 D. Tools Press Menu key on RCU and use left/right keys to go to Tools menu on the bottom of the menu on the TV Screen. Tools menu will display below screen on TV: 1. Information 2. Satellite Guide 3. Software Upgrade D1.
  • Page 19 D2. Satellite Guide: You can enter details of the satellite for your future reference. D3. Software Upgrade: This feature is not applicable for the user.
