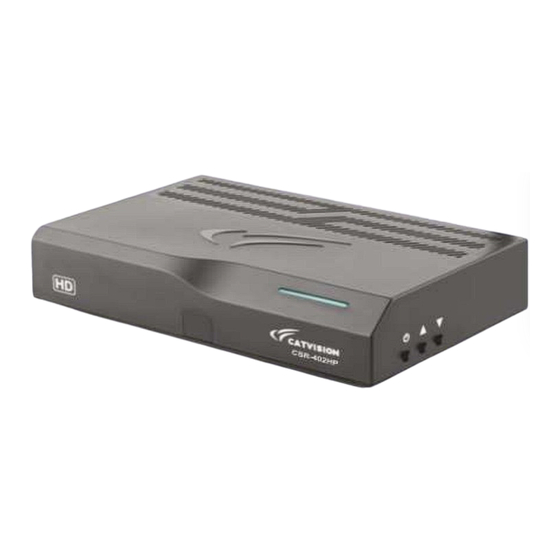

- Page 1 Set Top Box CSR- 402HP with Wi-Fi Model: (DVB-S2 MPEG4 HD FTA) User Manual CATVISION LIMITED E-14&15, Sector-8, Noida - 201301 (U.P.) India email: info@catvisionindia.com website: www.catvisiononline.in...
- Page 2 Introduction This user manual will guide you through the operations of the Set Top Box Model CSR-402HP with Wi-Fi. This Set Top Box (STB) provides users access to Free-To-Air (FTA) television channels & radio services broadcast from satellite. It is pre-tuned to receive all SD & HD channels of the DD Free Dish DTH service operated by Doordarshan.
-
Page 3: Safety Precautions
Safety Precautions Warning: Do not use this STB where contact with or immersion in water is a possibility. Do not use near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc. Do not put a candle or lamp stand on top of the STB; otherwise, there is a danger of fire. ... - Page 5 Image change...
-
Page 6: Basic Operation
Basic Operation 1. Turn on STB Make the connection as given in the connection diagram. Turn on the STB by switching on the adaptor mains power supply. 2. Standby Press[Standby] key for the STB to enter the Standby state. ... - Page 7 12. FAV Press this key to call up the Favourite Channel Group List when there are no other menus in full screen. 13.Menu Press [MENU] key to open the menu, exit the current menu to last menu or close the window.
-
Page 8: Installation
Installation Press Menu > Installation When you switch on the STB the Installation menu will appear on the TV screen, as below. A. Satellite List B. Factory Setting C. USB Update D. Game A. Satellite List This Set Top Box is pre-tuned to channels of DD Free Dish satellite. For viewing DD Free Dish channels there is no need to change this setting. - Page 9 Use the left and right buttons on the RC to switch the highlight from the satellite list on the left to the satellite parameter bar on the right. Press the Ok button to highlight or deselect the satellite when highlight is on a satellite. ...
- Page 10 FTA Only: Yes, for only free programs Scan Channel: TV+Radio Scan Mode: Blind scan Press Ok button on the Search to start searching for the program. TP List In Satellite List press 'Audio' button on RCU to switch to TP list from Satellite. OSD shows:...
- Page 11 Press the Green key/Edit key to open the edit menu. Press the Red button to add a TP in list and edit Freq/SR/POL as desired. Press Blue button to open the TP scan menu. Make the selection as required. ...
- Page 13 C. USB Update This feature is not meant for the user of this Set Top Box D. Game Under Installation menu, go to Game using up/down button on RCU: Press OK on RCU to select Game menu. It will open Game menu. In Game menu, you can see 2 games –...
-
Page 14: Channel List
Channel List Press Menu >Channel List Under TV Channel List menu the screen will show: A. TV Channel List B. Radio Channel List C. Timer Setting... - Page 15 D. Delete A. TV Channel List The Fav/Lock/Skip/Move/Edit action can be performed. B. Radio Channel List The Fav/Lock/Skip/Move/Edit action can be performed.
- Page 16 C. Timer Setting We can schedule any particular channel by using Timer Setting and also can record the same content.
- Page 17 D. Delete all By this option user can delete all stored channels from the Set Top Box. The default password to do that is “0000”.
-
Page 18: Media Centre
Media Centre Press Menu > Media Centre Under Media Centre menu the screen will show: A. Music B. Picture C. Movie D. HDD information... - Page 19 A. Music You can play music programs on the TV which are stored in the Pen Drive. Note: Some files may not be supported. B. Picture You can see images on the TV which are stored in the Pen Drive. Note: Some files may not be supported.
- Page 20 C. Movie You can run movies/videos on the TV which are stored in the Pen Drive. Note: Some files may not be supported. D. HDD Information This display will show the details of the connected Pen Drive.
- Page 21 Network Press Menu > Network Under Network menu the screen will show: A. WiFi B. DLNA A. WiFi This option is meant for connecting the STB with WiFi. Select WiFi Inside WiFi page press WiFi Manager. Inside WiFi Manager page, choose your WiFi service and enter the key (password). ...
- Page 24 B. DLNA This option is meant for casting application (please refer to Tubio installation manual packed separately with the Set Top Box).
- Page 25 System Press Menu > System Under System menu the screen will show: A. Information B. Language C. AV setting D. Local Time setting E. Parental Lock F. OSD Setting G. Favourite...
- Page 26 A. Information It displays the basic info of the Set Top Box.
- Page 27 B. Language You can select the language you want. The default selection is English. C. AV Setting Displays various AV settings. The TV system and video resolution is pre-set to PAL (the Indian TV system) and 1080i (High Definition).
- Page 28 D. Local Time Setting Date and Time can be set here. E. Parental Lock When Parental Lock is selected with OK button it asks for the input password. The default password is “0000”. You can set Menu Lock – On/Off, Channel Lock – On/Off, and change password.
- Page 30 F. OSD Setting One can change OSD (On Screen Display) timeout period and transparency as per your requirement.
- Page 31 G. Favorite In Favorite mode, you can add your channels in defined categories.
- Page 32 Casting A separate Tubio App installation manual is enclosed with set top box for Tubio casting features. For detailed instructions on Tubio installation, please visit our website www.catvisiononline.in...
