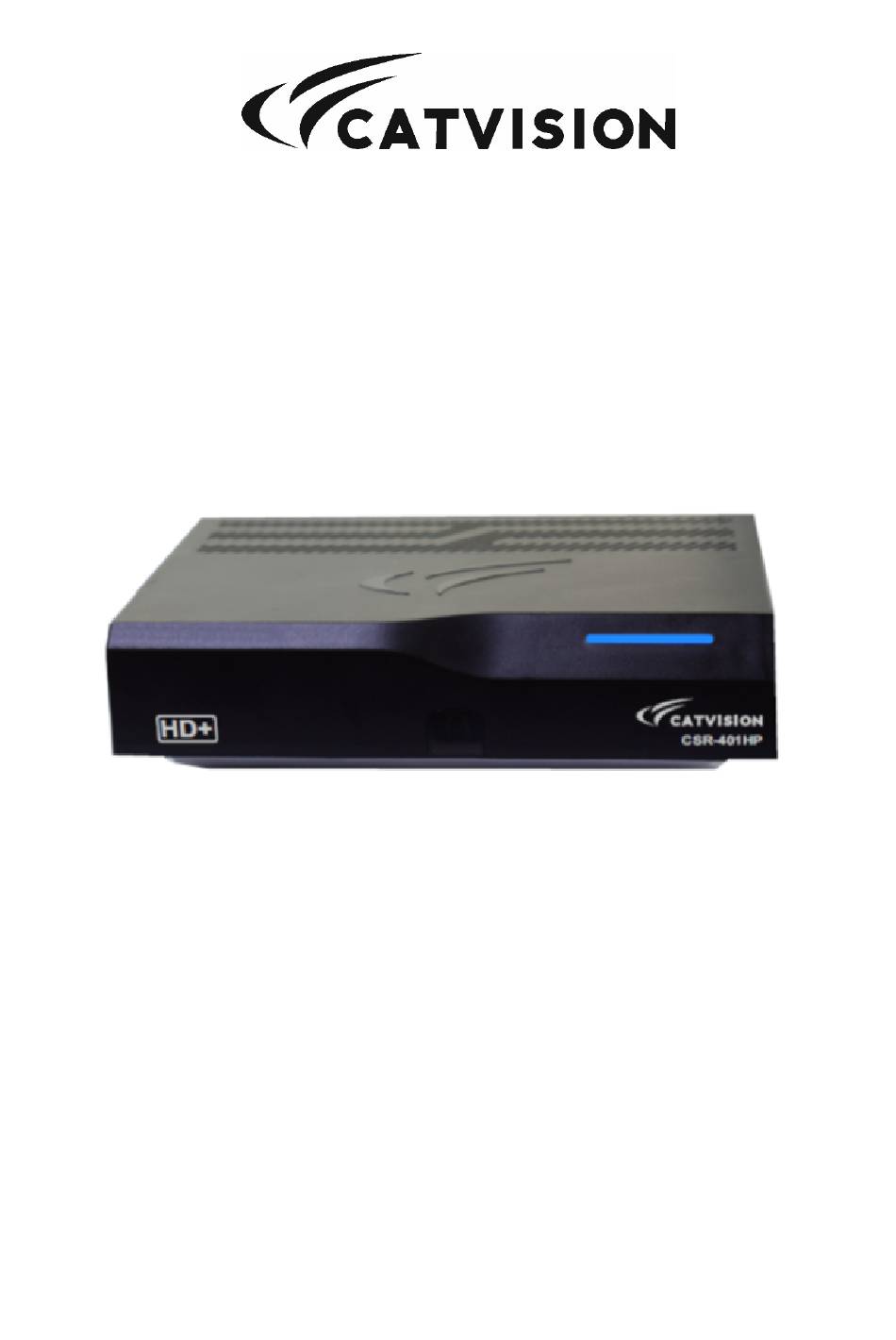

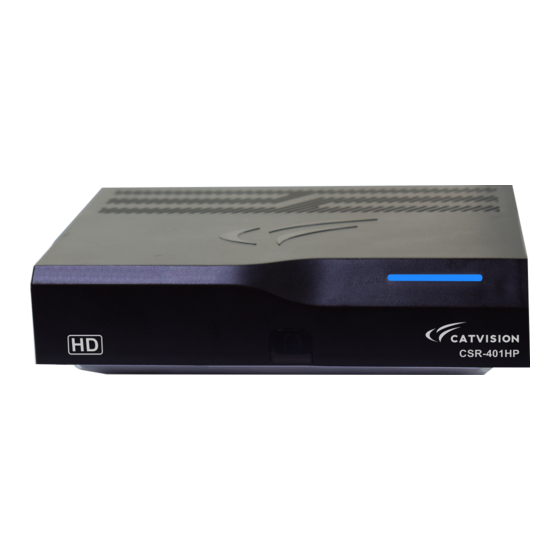

- Page 1 Set Top Box CSR- 401HP Model: (DVB-S2 MPEG4 HD FTA) User Manual CATVISION LIMITED Factory: F-87, UPSIDC Industrial Area, Selaqui, Dehradun - 248197, Uttarakhand, India Head office: E-14&15, Sector-8, Noida - 201301 (U.P.) India email: sales@catvisionindia.com website: www.catvisionindia.com...
-
Page 2: Main Features
Various channel editing options (move, lock, delete). Option of advanced YouTube casting through external USB Tubicast dongle and with this, the user can stream movies, photos & videos from mobile phone to TV. (The user can purchase this external USB Tubicast Dongle from Catvision Limited). -
Page 3: Remote Control Unit
Remote Control Unit TV Controls STANDBY (Teach STB RCU with TV RCU to control TV, as per sticker on backside of STB RCU) Fast Forward PAUSE Fast Backward VOL +/- PLAY CH +/- STOP INFO CH & VOL +/- MENU EXIT MUTE RECALL... - Page 4 Safety Precautions WARNING: Do not use this STB where contact with or immersion in water is a possibility. Do not use near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc. Do not put the candle or lamp stand on the cabinet; otherwise, there is a danger of fire. ...
-
Page 6: Basic Operation
Basic Operation 1. Turn on STB Make the connection as given in connection diagram. Turn on the STB by switching on the adaptor mains power supply. 2. Standby Press [Standby] key for the STB to enter the Standby state. In Standby state, press [Standby] key again to recall the last channel. User can also disconnect the device’s main power to end the Standby state. -
Page 7: Troubleshooting
14. OK Press [OK] key to open the channel list. Press [Left/Right] keys to move the highlight and press [OK] to play the highlighted channel. 15. EXIT Press [EXIT] key to exit the current menu to last menu or close the window. 16. -
Page 8: Installation
Installation Under Installation – the screen will show: A. Satellite List B. Information C. Factory Setting D. USB Upgrade E. USB Backup F. Game A. Satellite List This Set Top Box is pre-tuned for channels on DD Freedish Satellite. The user can use this Set Top Box to receive the satellite channels from the other satellites too, for which the user has to set the new satellite information using this menu. - Page 9 The left and right buttons switch highlight from the satellite list on the left to the satellite parameter bar on the right. Press the Ok button to highlight or deselect the satellite when highlight is on a satellite. 1. To add a new satellite in the list, press red button and enter the name, longitude, direction and size for your reference.
- Page 10 2. Press the blue button function key to open satellite search /scan menu, as shown below: Scan Type: Single or Multi-satellite search FTA Only: Yes, f or only f ree programs Scan Channel: TV + Radio Scan Mode: Blind scan 3.
- Page 11 4. TP List Go to Installation [menu-->Satellite List Press 'Audio' button to switch to TP list from Satellite list. OSD shows: 1 Press the Green key / Edit key to open the edit menu. 2 Press the Red button to add a TP in list and edit Freq/SR/POL as desired. 3 Press Blue button to open the TP scan menu.
- Page 12 Information C. Factory Setting The existing settings can be restored to factory default settings after entering the correct password. Note: This function will delete all the stored and tuned channels from the Set Top Box and will bring it to the initial default setting. D.
- Page 13 F. Game Othello 1. Move highlight to “Setup” and press (Vol up/down) keys to select the game level (level of difficulty). 2. Move highlight to "Start" and press [OK] key to start the game. 3. Move highlight to [Cancel] keys and press [OK] key to draw back from the game. 4.
- Page 14 Go to main menu-->System option as shown in below OSD display A. Language...
-
Page 15: Channel List
B. AV Setting C. Local Time Setting Date and Time can be set in this Set Top Box D. Parental Lock When Parental Lock is selected with OK button it asks for the input password. The default password is “0000”. You can set Menu Lock –... - Page 16 Go to main menu--> Channel List as shown in OSD display below: TV Channel List The Fav/Lock/Skip/Move/Edit action can be performed. B. Radio Channel List The Fav/Lock/Skip/Move/Edit action can be performed.
-
Page 17: Media Centre
Media Centre This Media Centre Menu is not visible until a supported storage device, e.g. a Pen Drive, is connected to the USB port. To display this OSD menu connect a storage device (Pen Drive). Under Media Centre – screen will show: A. - Page 18 Music You can run music programs on the TV which are stored in the Pen Drive. Note: It will run only supported music files. Picture You can see images on the TV which are stored in the Pen Drive. Note: It will run only supported image files.
- Page 19 Movie You can run movies on the TV which are stored in the Pen Drive. Note: It will run only supported video / movie files. Record Manager You can run recorded programs on the TV which are stored in the Pen Drive. Note: It will run only supported files.
-
Page 20: Record Manager
E. HDD Information This display will show the memory details of the connected Pen Drive. F. DVR Configuration One can set Time Shift and DVR Partition as per requirement. Steps to Record the running program Press the Record button on the RCU to start recording when playing the program in full screen and press the Record button again to pop up the Set Recording Time dialog box. - Page 21 When playing a recorded program, OSD: The keys supported during playback are: a) Play: Play. b) Pause: Pause or resume playback. c) Stop: Stop playing. d) FB, FF: Fast rewind and fast forward e) Revslow, Slow: previous/next program. f) Menu/Exit: Exits.
