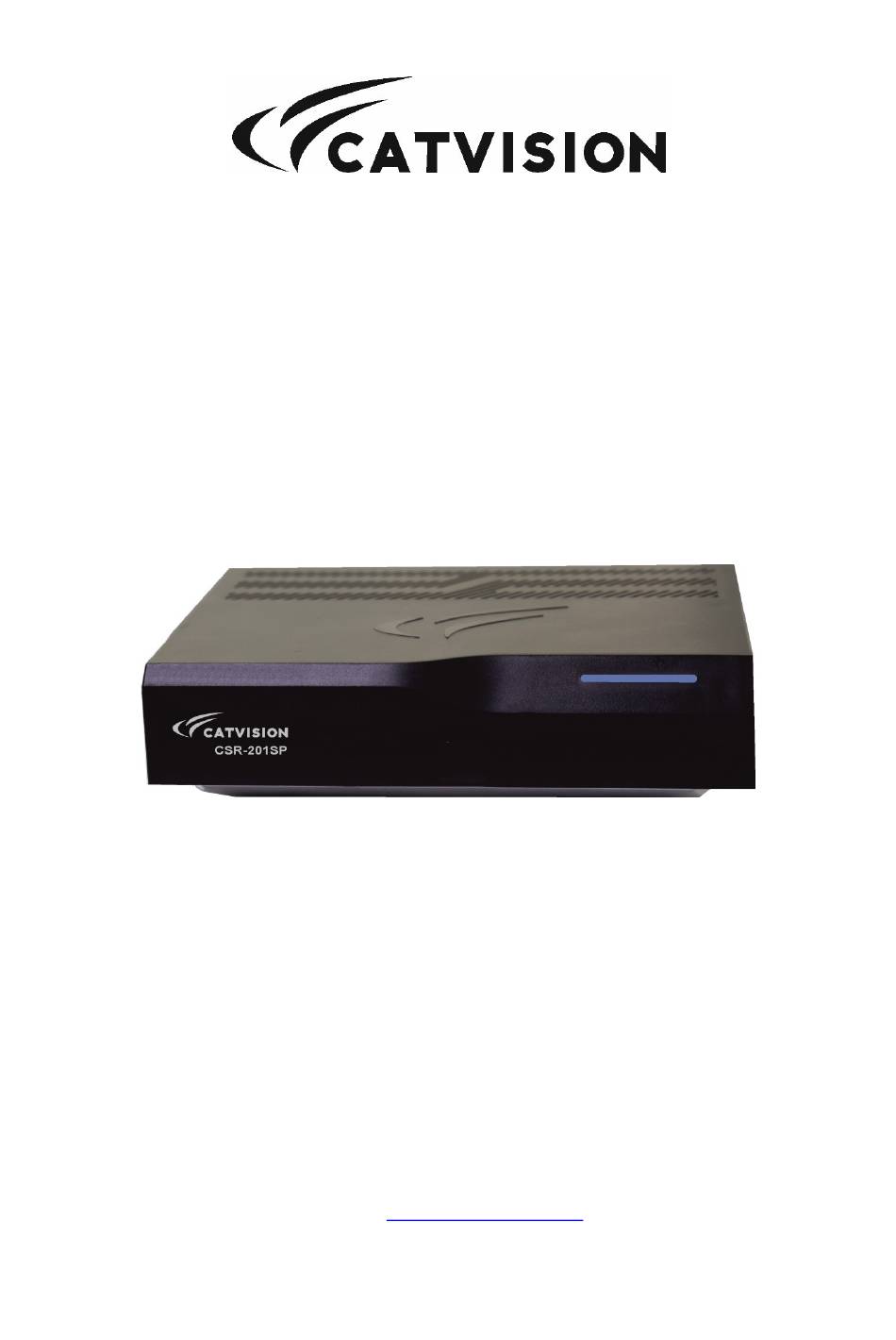

- Page 1 Set Top Box Model: CSR- 201SP (DVB-S MPEG2 SD DD Freedish FTA) User Manual CATVISION LIMITED Factory: F-87, UPSIDC Industrial Area, Selaqui, Dehradun - 248197, Uttarakhand, India Head office: E-14&15, Sector-8, Noida - 201301 (U.P.) India email: sales@catvisionindia.com website: www.catvisionindia.com...
-
Page 2: Main Features
Introduction The user manual will guide you through the operations of the DVB-S MPEG2 SD Set Top Box Model CSR- 201SP. This product is a high-performance & cost-effective DVB-S satellite receiver. It provides users access to Free-to-air (FTA) television channels & radio services. Main Features: ➢... -
Page 4: Safety Precautions
Safety Precautions WARNING: ➢ Do not use this STB where contact with or immersion in water is possible. Do not use near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc. ➢ Do not put the candle or lamp stand on the cabinet; otherwise, there is a danger of fire. ➢... -
Page 5: Installation Diagram
Installation Diagram:... -
Page 6: Basic Operation
Basic Operation 1. Turn on STB Make the connection as given in connection diagram. Turn on the STB by switching on the adaptor mains power supply. 2. Standby Press [Standby] key for the STB to enter the Standby state. In Standby state, press [Standby] key again to recall the last channel. User can also disconnect the device’s main power to end the Standby state. -
Page 7: Installation
Installation The user interface has various ways to navigate through the menus and functions. Some of the keys on the remote control unit gives direct access to the functions. Important keys are identified as EPG, colored keys, MENU and OK, Other keys are multifunctional changes dependent of the mode that you are in. Unless otherwise specified;... -
Page 8: Program Setup
A. TV Channel You can manage the tuned TV channels by deleting and moving them as per your requirement. B. RADIO CHANNEL: You can manage the tuned Radio channels by deleting and moving them as per your requirement. C. PROGRAM SETUP Under Program Setup, the screen will show: ➢... - Page 9 Add New Program: ➢ In the Program Setup menu, select the option Add New Program and press OK. The screen menu will show: ➢ LNB Freq: Enter starting and ending freq. ➢ TP Frequency: Input the value by using the numeric keys. ➢...
- Page 10 Auto Scan: Go to Auto Scan under Program Setup and select OK button on Remote control unit. The Auto Scan menu menu will show: ➢ LNB Freq: Enter the starting and ending LNB frequencies. ➢ Scan Mode: Select a Scan mode among Free and All. Free for FTA channels and All for FTA and Scramble channels.
-
Page 11: Edit Program
D. EDIT PROGRAM: To Access Edit Program screen, through the main menu: Press MENU to enter the main menu. Toggle down to Edit Program option. The option will be highlighted. Press OK to enter the option. To delete a channel ➢... - Page 12 TO MOVE: ➢ In the edit program screen, toggle to move. ➢ Pressing the arrow keys, select the channel you want to move and press OK. You will see the channels marked with the symbol. ➢ Pressing the arrow keys, locate the point you want to put the selected channel and press OK. ➢...
-
Page 13: Language Setting
F. Language Setting: Select the desired language for menu G. System Setup: TV System: Go to TV System Menu shows TV System: AUTO / PAL / NTSC Set PAL or AUTO for India. Audio Setup: Go to Audio Setup Menu shows Audio Track and Audio Mode Audio Track: You can select Track as per the broadcasted audio language, if available Audio Mode: You can select Stereo / Left / Right as per your requirement Default Value:... -
Page 14: Auto Shutdown
RF Setup: This feature is not useful for your application. Auto Shut Down: To set the time for shutting down STB automatically. Software Upgrade: This feature is not useful for your application. OSD Setting: Menu Color: ➢ Allows you to select the desired color for menu. ➢... - Page 15 H. Games: You can Play the following three games under Game Section.
