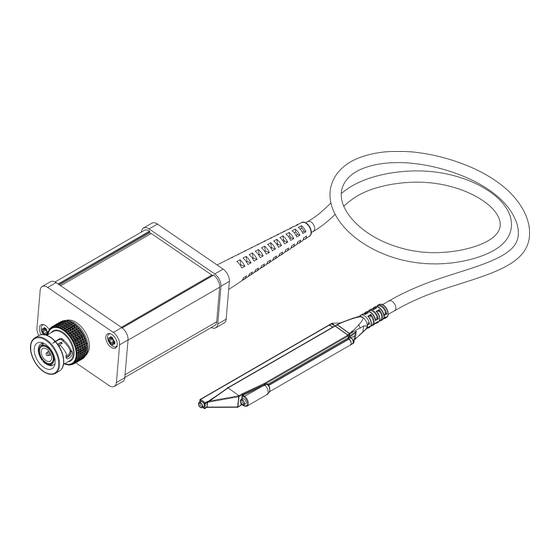

- Page 1 ® TETRIS 1500 High Impedance Active Probe User's Guide DO177-1...
- Page 2 (including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if Pico Technology has been advised of the possibility of such damages arising from any defect or error in this manual or product.
- Page 3 Pico Technology TETRIS 1500 Declaration of Conformity (EC conformity marking) The manufacturer declares the conformity of this product with the actual required safety standards in accordance with the Low Voltage Directive (LVD) 2006/95/EC: IEC 61010-031:2002 Safety requirements for electrical equipment...
- Page 4 TETRIS 1500 Pico Technology Safety General Safety Please review the following safety precautions to avoid personal injury and prevent fire or damage to this product or products connected to it. Be aware that if you use this probe assembly in a manner not specified the protection this product provides may be impaired.
- Page 5 TETRIS 1500 1. About the Tetris Active Probe System Pico Technology presents a unique Inline Probing System – the TETRIS ® active probe. The unique design of the TETRIS active probe allows for contact to adjacent square pins in 2.54 mm pitch simultaneously. This is possible due to the probe's housing being T-shaped and allowing many probes to be positioned next to each other, permitting multiple measurements to be taken at the same time.
- Page 6 TETRIS 1500 Pico Technology 2. Operating Basics When using this active probe device make sure the measuring instrument is set to 50 Ω input coupling and the probe is connected to the power supply. Note: If the measuring instrument does not have 50 Ω coupling, an external 50 Ω...
- Page 7 Pico Technology TETRIS 1500 5. Specifications Specifications that are not defined as "guaranteed" are typical and are published as general information for the user. The instrument should have warmed up for at least 20 minutes prior to use, and the environmental conditions should not exceed the probe's specified limits.
- Page 8 TETRIS 1500 Pico Technology 6. Accessories Included Z - Ground Ground Blade 2 adhesive Cu Pads ( 2 x 2 cm ) DEVICE UNDER TEST Spring Tip Solid Tip L - In Adapter Y-Lead Adapter to 0.8 mm Sockets Pico-Hook...
- Page 9 Pico Technology TETRIS 1500 Marker Bands 4 Colors Ground Lead 6 cm Ground Lead 12 cm Ground Lead 90° 5 cm Ground Lead 90° 10 cm DO177-1...
- Page 10 TETRIS 1500 Pico Technology 7. Specifications Input Impedance Note that the input impedance of the probe decreases as the frequency of the applied signal increases. Typical input impedance TETRIS ® 1500 100k 100k 100M Frequency [Hz] Mechanical Characteristics Weight (probe only)
- Page 11 Pico Technology TETRIS 1500 8. Scope of Delivery The following items are included in the scope of delivery. Please check the delivery for completeness. If any item is missing, send a message to our help desk and we will send you this item immediately.
- Page 12 Revision History Revision# Date Reason July 2010 First issue Pico Technology James House Colmworth Business Park St. Neots PE19 8YP United Kingdom www.hyxyyq.com Pico Technology is a registered trademark of Pico Technology Ltd. Copyright © Pico Technology Ltd. 2010 DO177-1...
