Summary of Contents for pico Technology TA133
- Page 1 TA133 500 MHz probe User’s Manual...
-
Page 2: Warranty
(including damages for loss of profits, loss of business, loss of use or data, interruption of business and the like), even if Pico Technology has been advised of the possibility of such damages arising from any defect or error in this manual or product. -
Page 3: Declaration Of Conformity
WEEE treatment yourself. Do not dispose as unsorted municipal waste! * EC Directives: WEEE Directive 2002/96/EC Waste Electrical and Electronic Equipment RoHS Directive 2002/95/EC Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... - Page 4 Measurement category IV is for measurements CAT IV performed at the source of the low-voltage installation. Examples: Electricity meters and measurements on primary over current protection devices and and ripple control units. © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1...
-
Page 5: Pollution Degree
IEC Safety Symbols The following symbols may appear on the product or in this instruction manual: Caution, risk of danger. Refer to manual. Caution, risk of electric shock. Earth (ground) TERMINAL. © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... -
Page 6: Safety Information
Do not operate with suspected failures. Refer to qualified service personnel. Indoor use only. Do not operate in wet/damp environment. Keep product surfaces dry and clean. Do not operate the product in an explosive atmosphere. © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... -

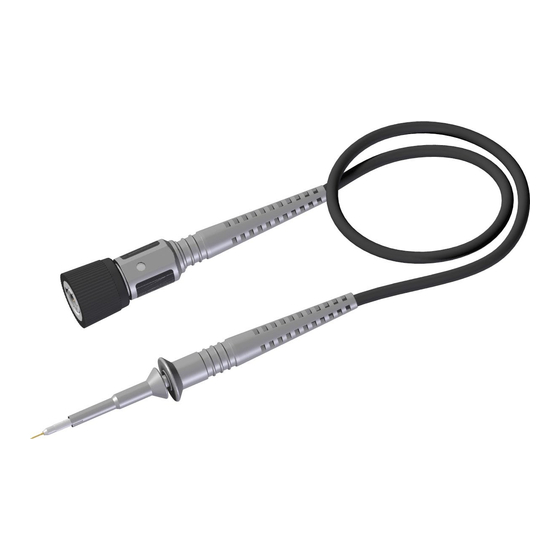

Page 7: About The Probe
The innovative IC contacting system of the TA133 with 5 dif- ferent IC adapters from 0.5 to 1.27 mm pitch, in combination with the ground blade and IC ground copper pad, is the ideal solution for short-circuit-safe, reproducible, and authentic measurements. -
Page 8: Electrical Specifications
Frequency [Hz] (1) Connect to oscilloscope with an input impedance of 1 MΩ ± 1 %. (2) As defined in IEC 61010-031. See definitions explained on page 4 and 5. © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... -
Page 9: Input Impedance
0° C to +50° C non-operating -40° C to +71° C Maximum Relative Humidity operating 80 % relative humidity for temperatures up to +31° C, decreasing linearly to 40 % at +50° C © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... -
Page 10: Adjustment Procedures
LF compensation is performed by connecting the probe to the CAL – output on the oscilloscope front panel and adjusting the LF compensation trimmer to optimum square wave response. For clarification see below figures. undercompensated optimum overcompensated LF Compensation © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... - Page 11 Adjust trimmers (T 1 and T 2 ) for optimum square wave response. T 1 is used for rise time adjustment. T 2 influences probe response time. optimum LF Compensation T 180° T © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1...
-
Page 12: Probe Accessories
Copper Layer ( .228 ) ( .079 ) PCB Adapter Kit 2.5 Sprung Hook 2.5 short / 30VAC black ( .059 ) Drill Layer ( .039 ) ( .228 ) © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... - Page 13 Probe Accessories TA133-User’s Guide You can buy a range of kits containing accessories and spare parts for the TA133 probe. Contents of the available kits are listed below. Item TA064 TA065 TA066 TA067 TA068 spring advanced basic standard solid contact tips...
-
Page 14: Scope Of Delivery
The BNC Adapter is rated: 42 V pk AC + DC The accessories provided with the probe have been safety tested. Do not use any other accessories than those originally provided. © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... -
Page 15: Changing The Probe Tip
Do not grip the white plastic insulator or the probe Use pliers to grip and pull the probe tip carefully out housing with pliers. of its contact socket. © Copyright 2011 Pico Technology Ltd. All rights reserved DO189-1... - Page 16 8. Mar. 2011 DO189-1...
